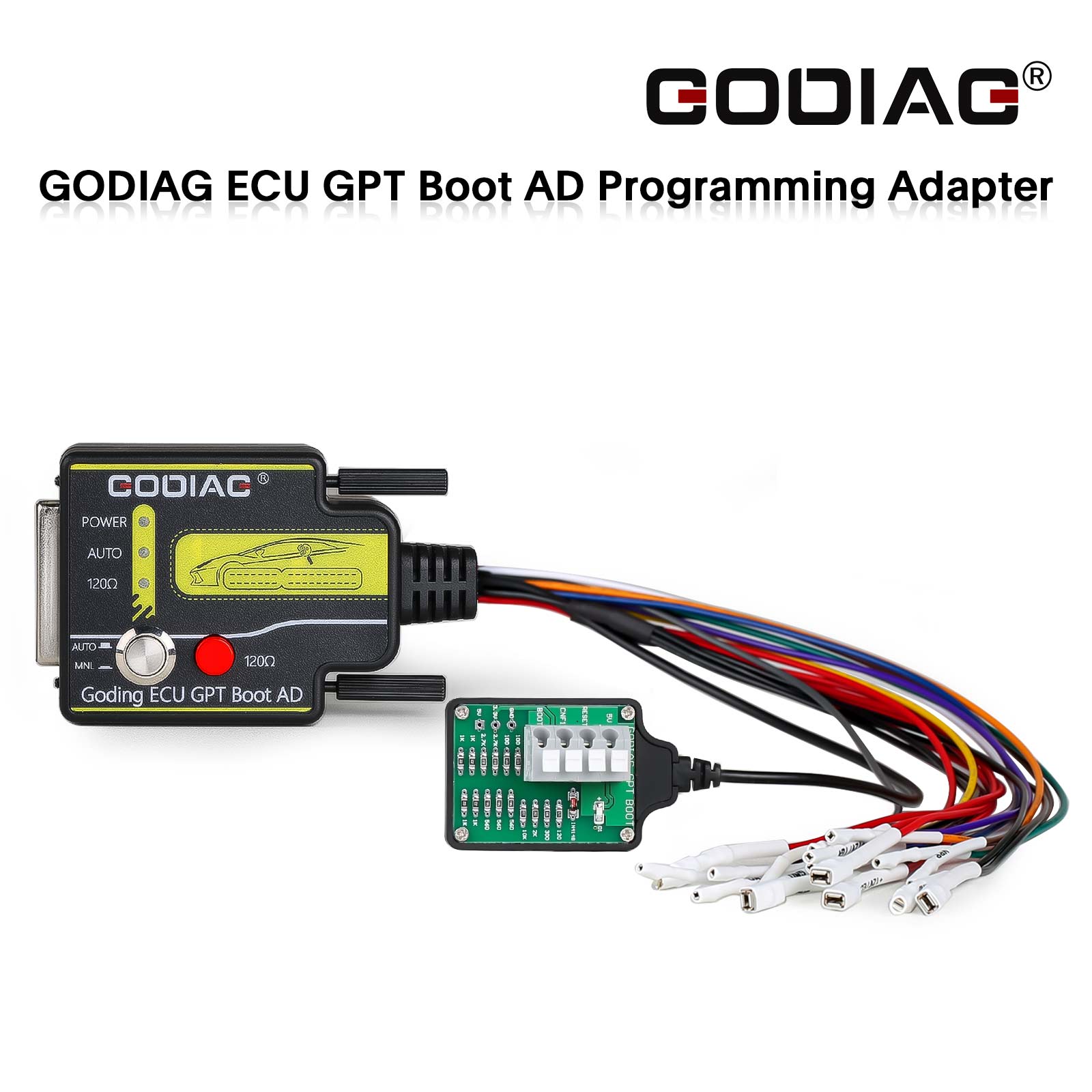

GODIAG ECU GPT Boot AD Programming Adapter Used with J2534 Devices Easy and Convenient

GODIAG ECU GPT Boot AD Programming Adapter Used with J2534 Devices Easy and Convenient

GODIAG ECU GPT Boot AD programming adaptercan help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.

Feedback:
It works with Autel MaxiIM IM608 II, we already test with CAS1 Key.
I can use series and parallel connections to get the resistance I want.
If you’re looking for a round resistor, getting one is impossible. I still have to buy resistors.
If the resistor is not connected, the data may not be read or the data may be lost.

Features:

Functions:

Diagnostic function supports standard OBD2 protocol equipment.

Supports ECU reading and writing data, and supports J2534 devices.

Only Scanmatik 2 PRO for PCMflash allows to form GPT1, GPT2 signalsnecessary to work with Module 71.

Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,

Teradyne GNA600 (VCM 1), Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.

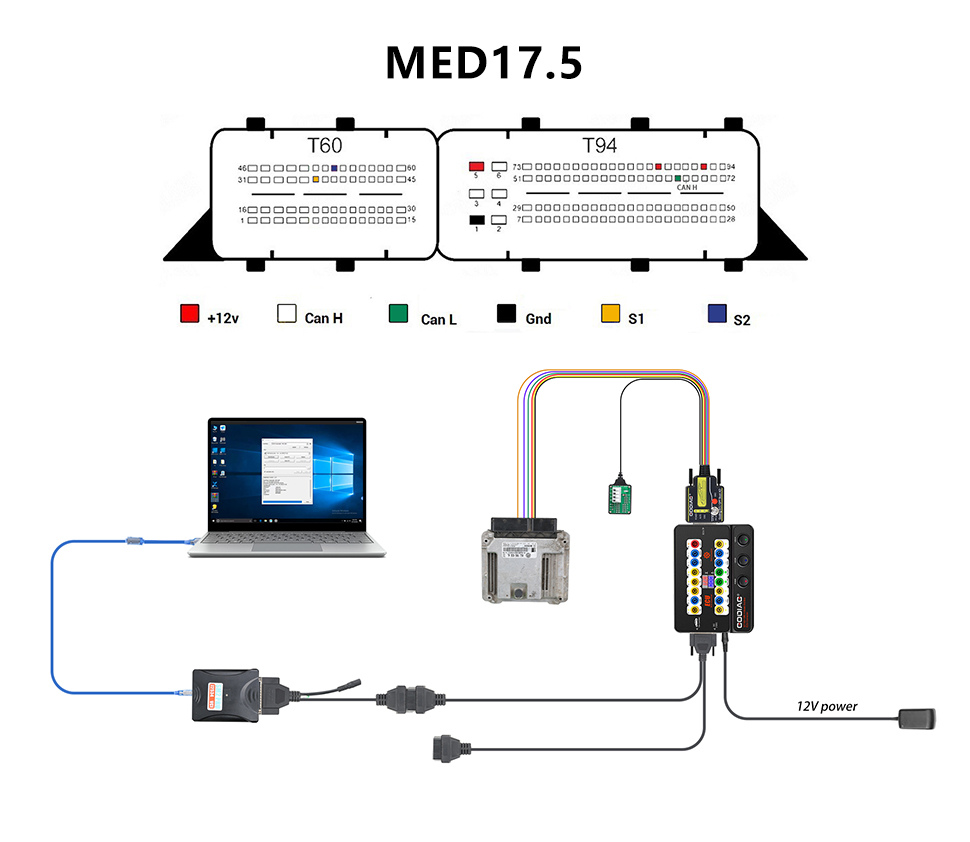

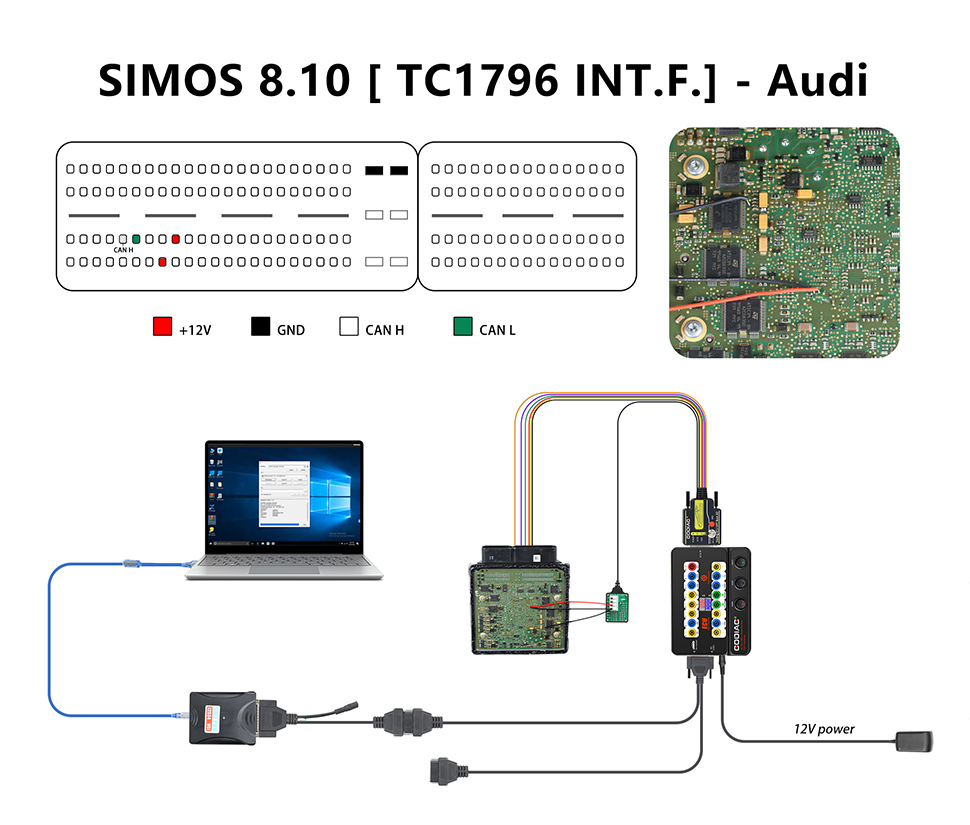

Connection Method of GODIAG ECU GPT Boot AD programming adapter, J2534 deviceand PCMFlash dongle software.

J2534 device	connection method	PCMFlash dongle software	advantages
			easy, convenient and save money
			Convenient to observe communication status, current and voltage and other working status

Comparison List:

Items
GPT	√	√	√	√
BOOT	√	√	√	√
CNF1	√	X	X	X
Compatible with J2534 devices	√	√	X	X

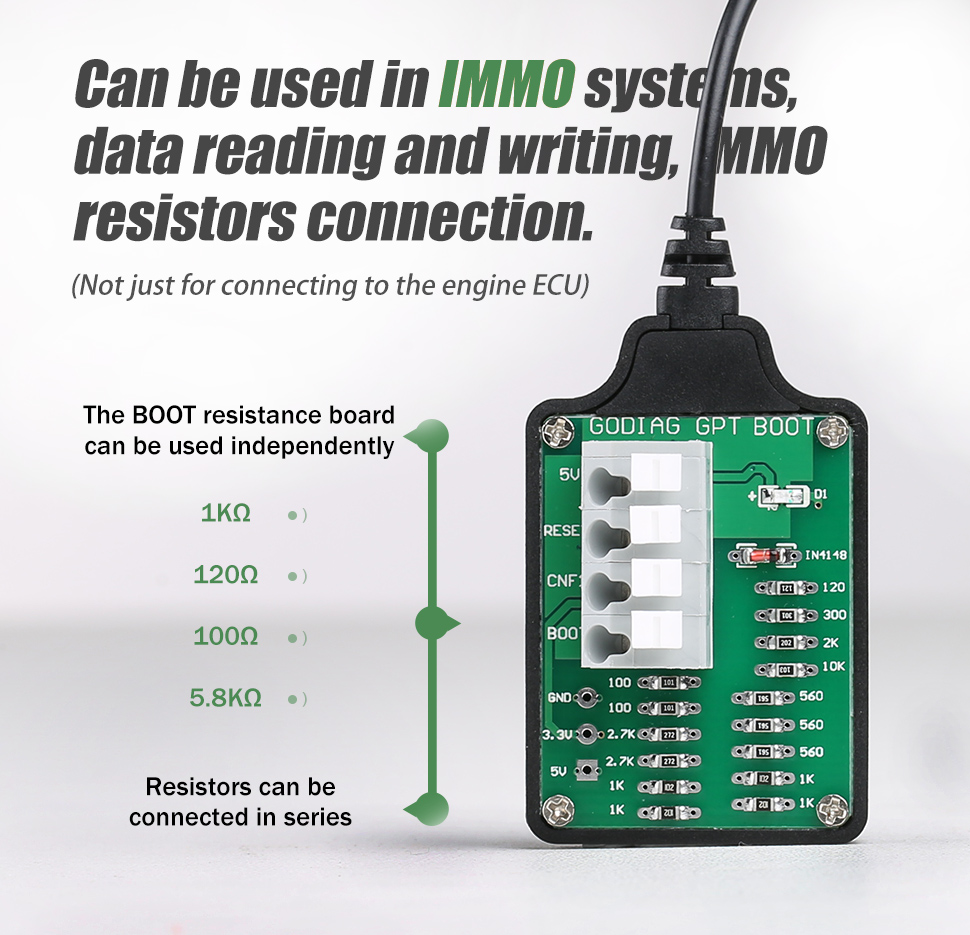

BOOT resistance board	√	X	X	X
Dedicated ECU terminal	√	X	X	X
Power ignition manual /automatic switch	√	√	X	X
CANbus freely select the 120Ω	√	Fixed 120Ω	X	Fixed 120Ω
5V 3.3V GND CNF1	√	X	X	X

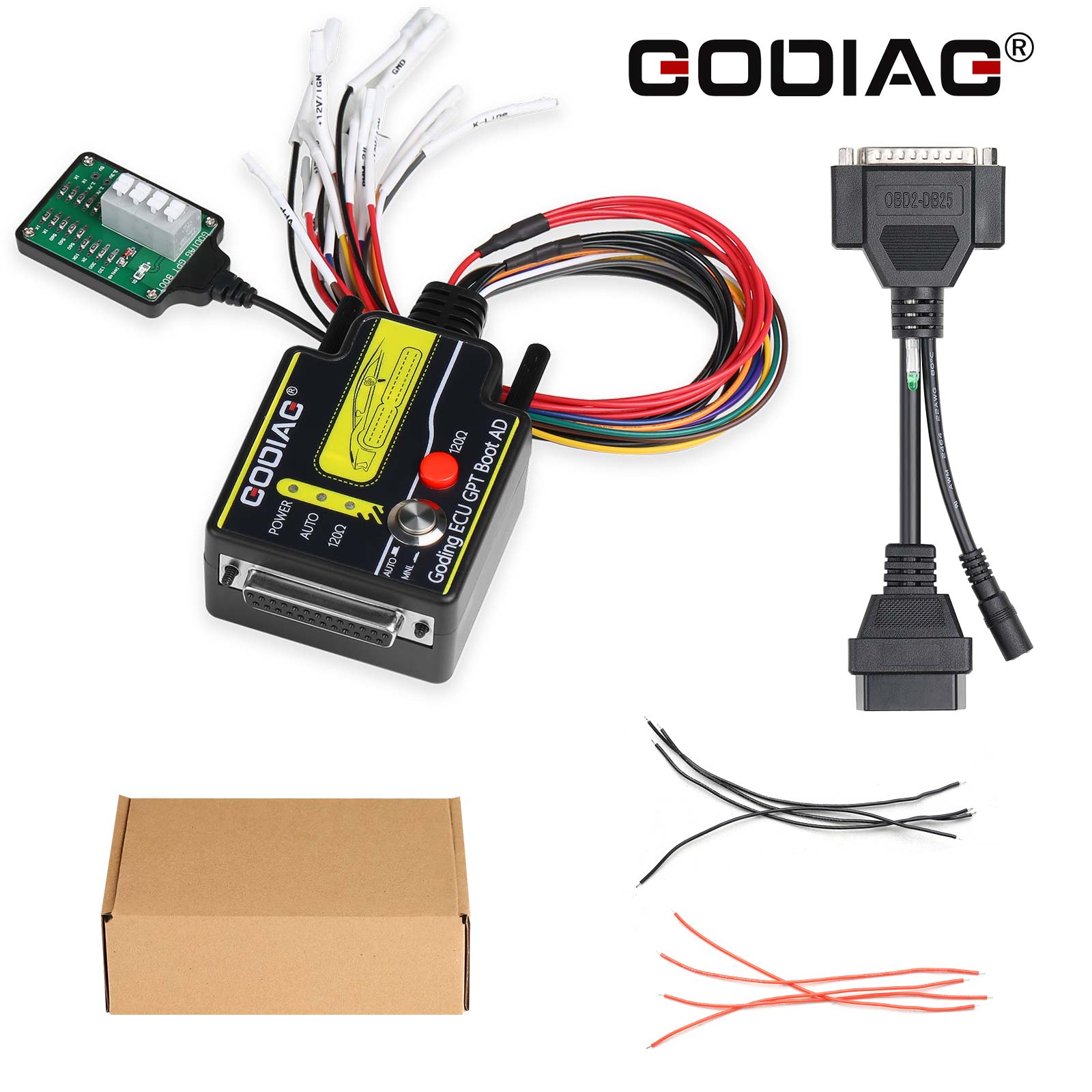

Package Includes:

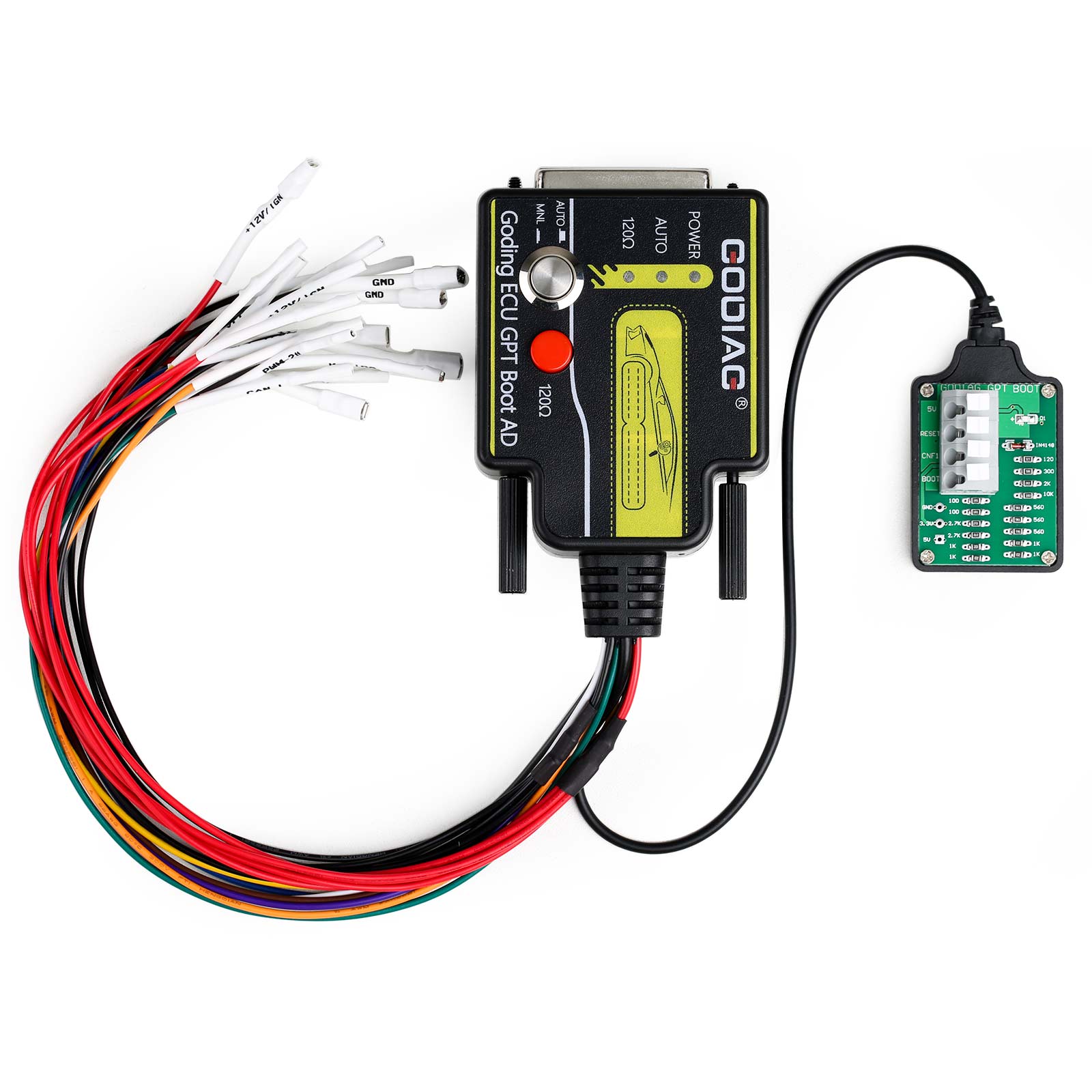

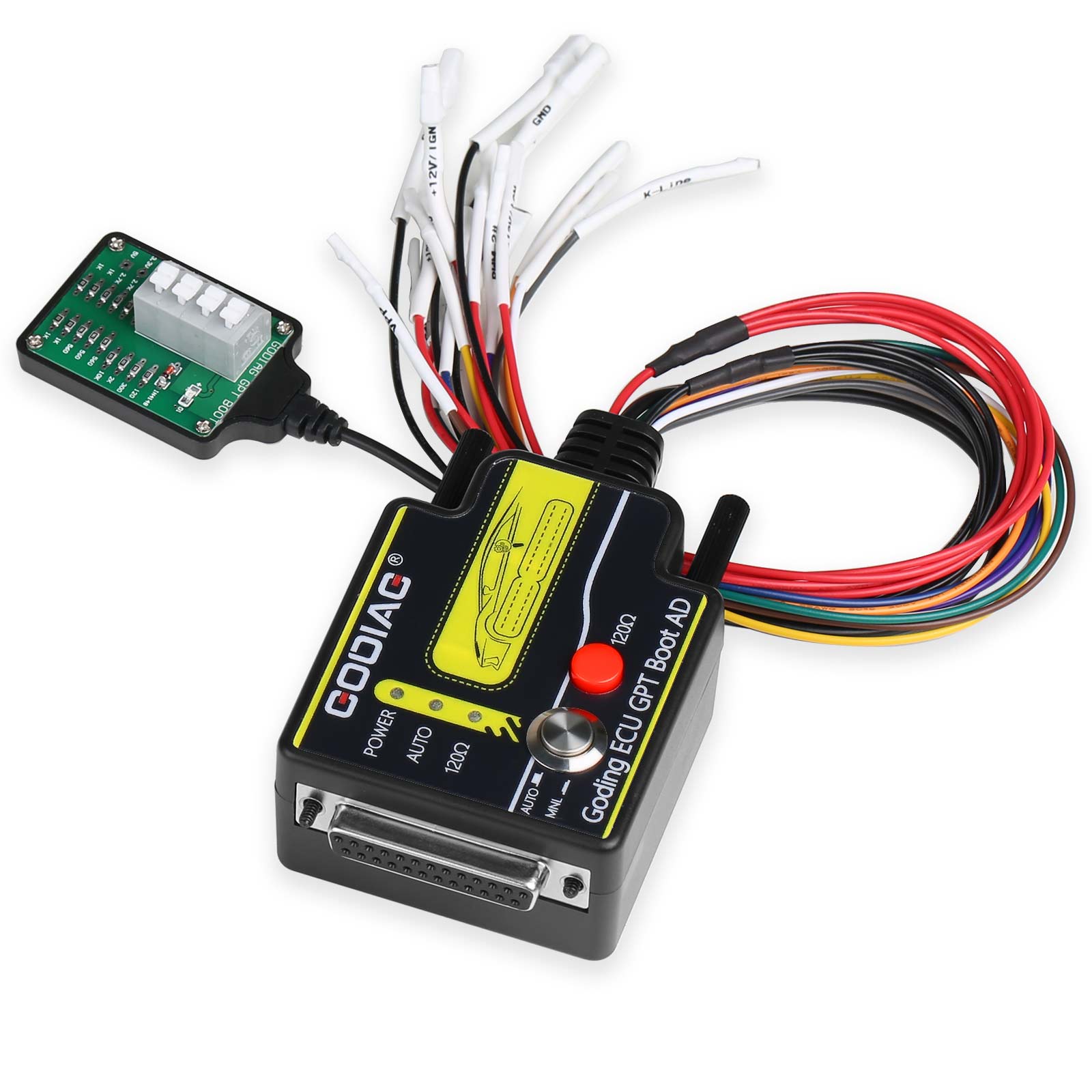

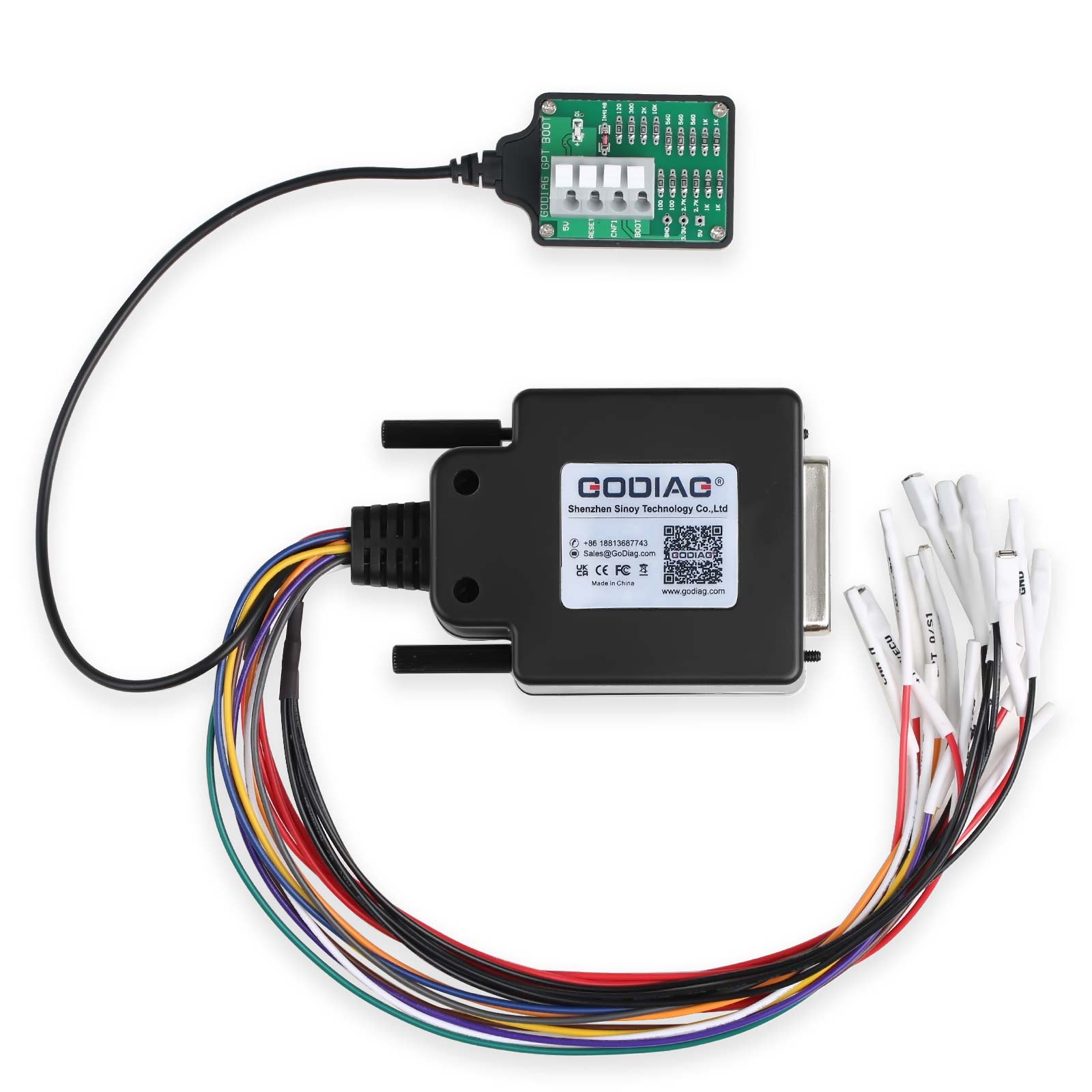

1pc x GODIAG ECU GPT Boot AD Programming Adapter

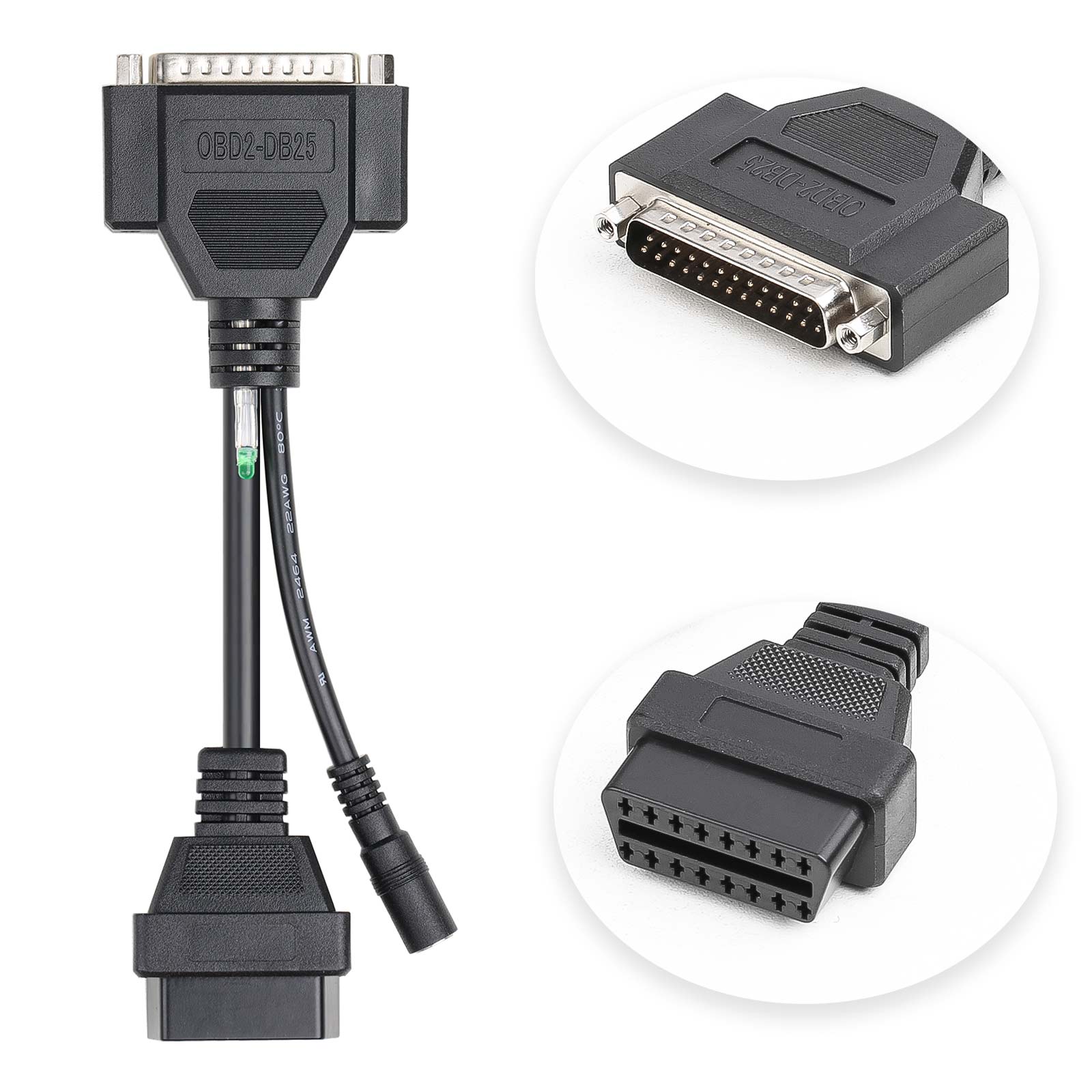

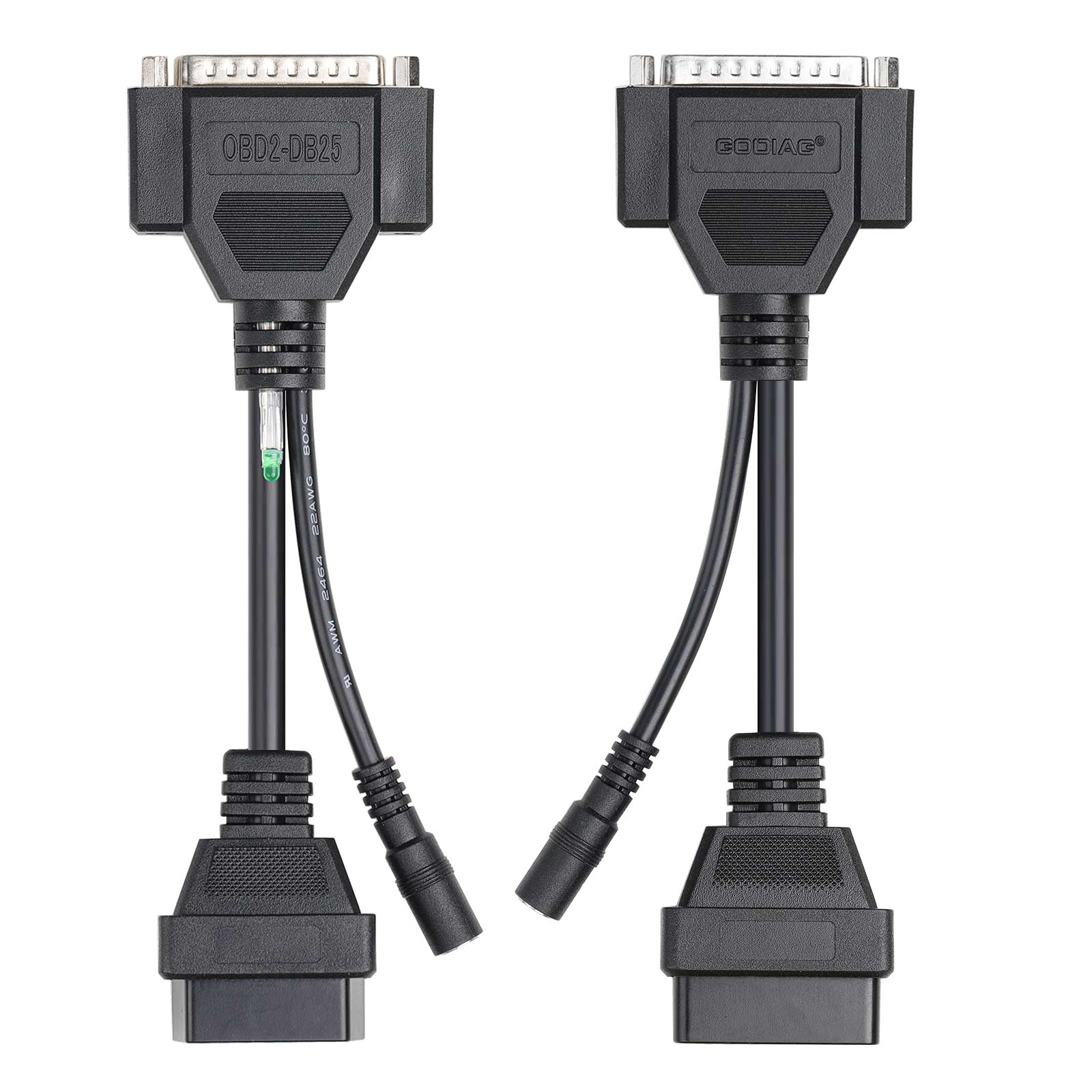

1pc x OBD2 to DB25 Cable
8pcs xSoft Silicone Wires
