Description

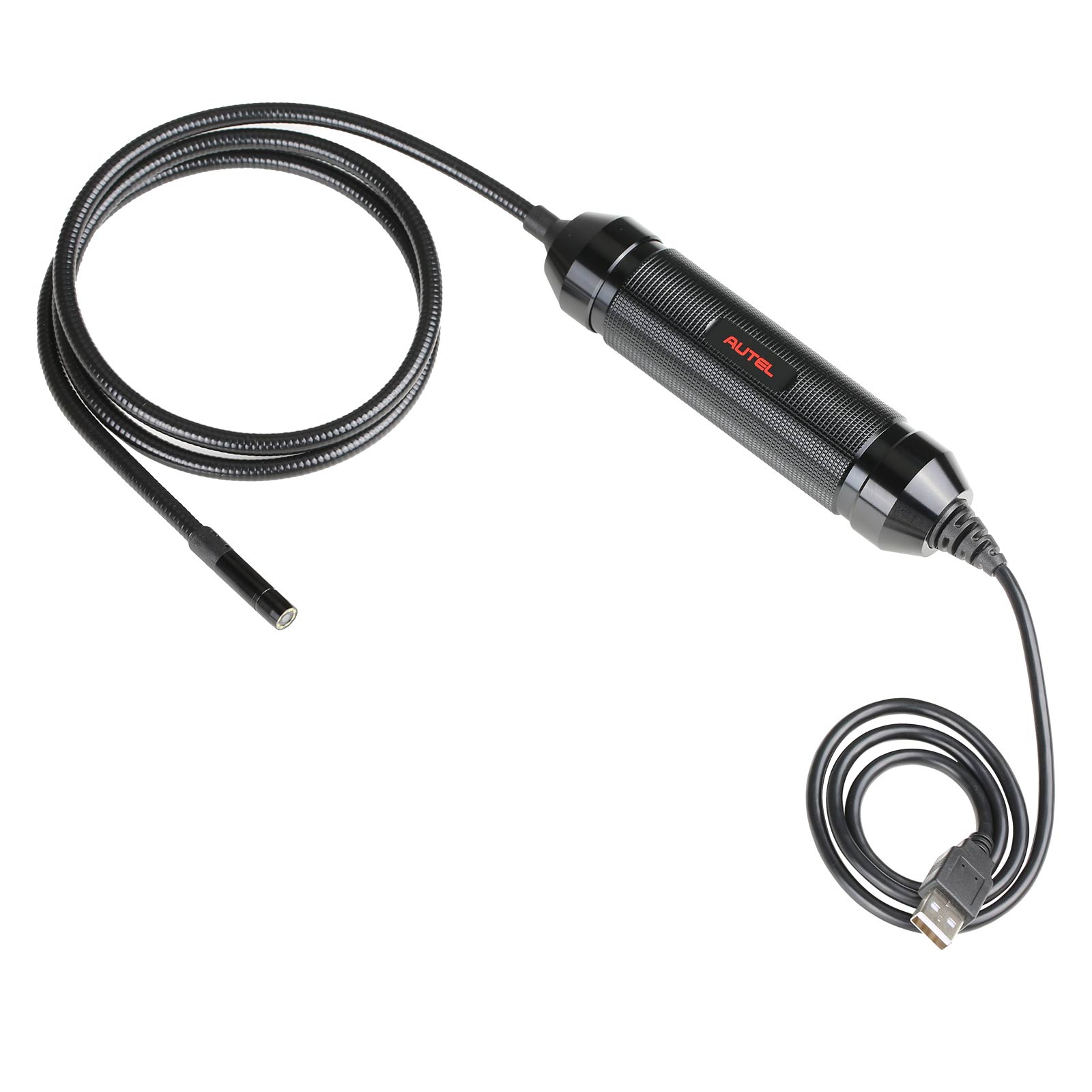

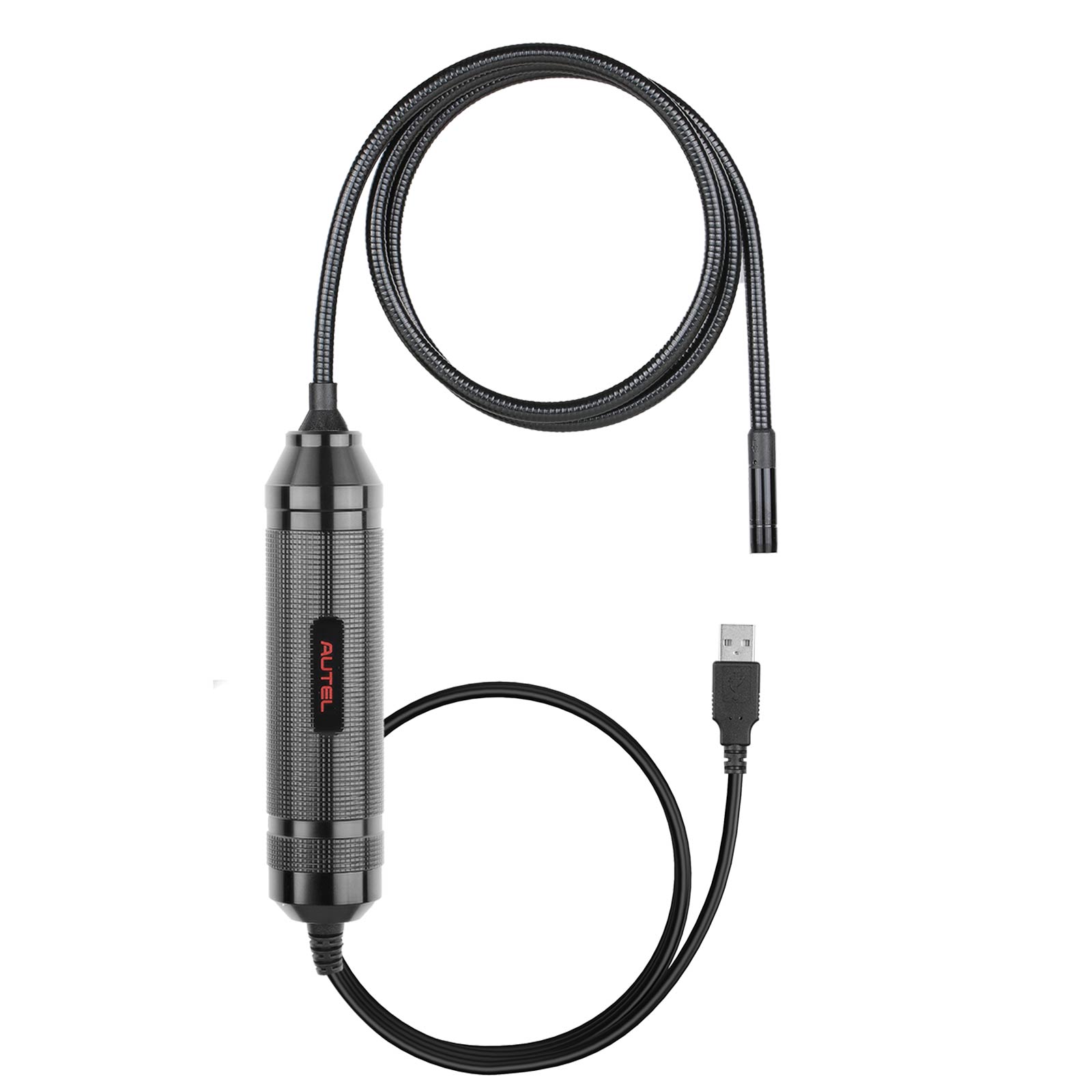

The MaxiVideo MV108S digital inspection camera is designed to work with MaxiSys series products(except MaxiSys 906) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
It works with the following Autel tablets:
MX808, MX808S, MX900, MK808, MK808S,MK808Z, MK900, MK808BT,MK808BT PRO, MK808Z-BT, MK808K-BT,MK900-BT, MX808TS, MX808S-TS, MX900-TS, MK808TS, MK808S-TS, MK808Z-TS, MK900-TS, DS808K, DS808S,MP808, MP808S,MP900, MP900E, DS808TS, DS808S-TS, MP808TS, MP808S-TS, MP808Z-TS, MP900-TS, MP808BT, MP808BT Pro, MP900-BT, MP900Z-BT, MS906S, MS906TS, MS906BT, MK906BT, MS906 Pro, MS906 PRO-TS, MK906 PRO, MK906S Pro, MK906 Pro-TS, MK906S Pro-TS, MS908, MS908 Pro, MS908S Pro, MS908S II, MS908S PRO II, MK908, MK908P, MK908 II, MK908 PRO II, MaxiSys Elite, MaxiSys Elite II, MaxiSys Eltie II Pro, MS909, MS919, Ultra, Ultra Lite.
Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.

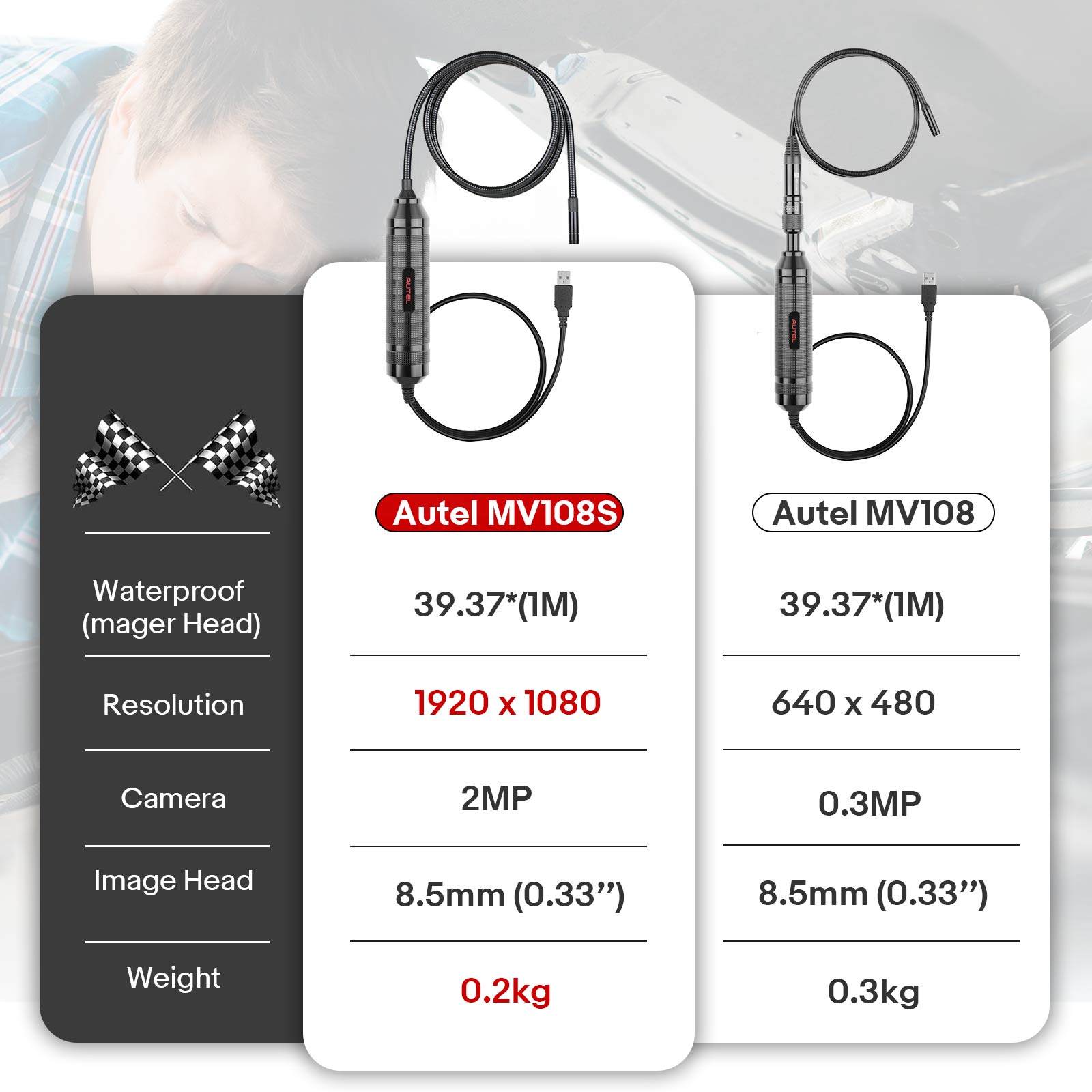

Comparison Between MV108S and MV108:
| Product Models | / | MV108S | MV108 |
| Basic Hardware | Imager head | 8.5mm | 8.5mm |
| Depth of field | 3-8cm | 2-6cm | |
| Field angle | 81° | 70° | |
| The length of Imager Head Cable | 1m | 1m | |
| Pixel | 2000,000 | 300,000 | |
| Flash | Yes | Yes | |
| Connection method | USB2.0 | USB2.0 | |
| Assembly method | The imager head cable is irremovable. | The imager head cable is removable. | |
| Imager Head Cable waterproof level | IP67 | IP67 | |
| Working temperature | -10°C to 70°C | -10°C to 70°C | |
| Storage temperature | -10°C to 70°C | -10°C to 70°C | |
| Accessories | Reflector | Yes | Yes |
| Hook | Yes | Yes |
Specifications:
| Imager Head Distance | 8.5 mm |
| Camera | 2 MP |
| Resolution | 1920 x 1080 |
| Depth of Field | 3 cm to 8 cm (1.18” to 3.15”) |
| LED Beads | 8 pcs |
| Imager Head Cable Length | 1 m (39.37″) |
| Waterproof Level (Imager Head) | IP67 |
| Operating Temp. | -10 °C to 70 °C (14 °F to 158 °F ) |
| Storage Temp. | -10 °C to 70 °C (14 °F to 158 °F ) |

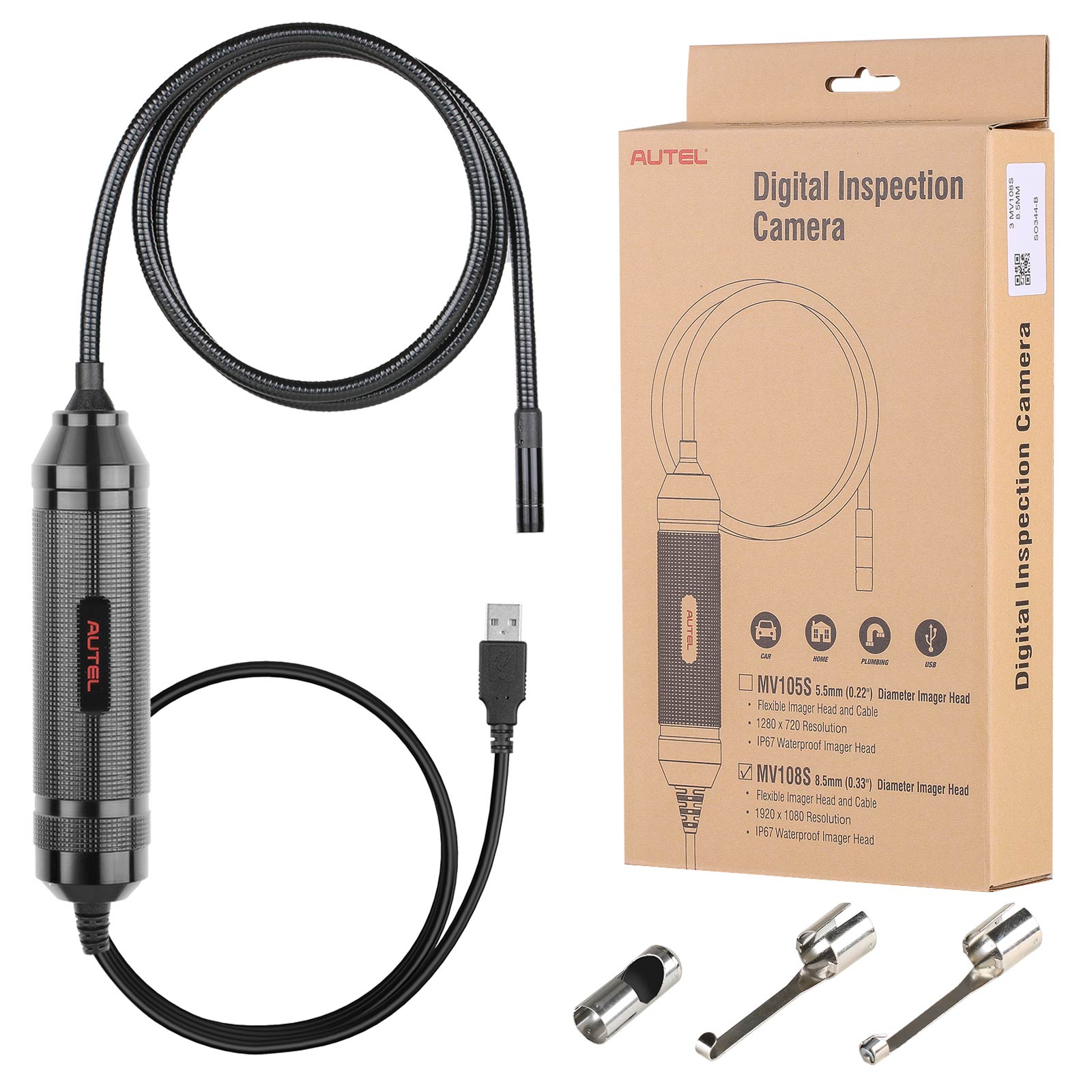

Package includes:
1pc x Hook
