100% Original Autel MaxiVideo MV108 8.5mm Digital Inspection Camera for MaxiSys Tablet Kit

White LED lights to illuminate the inspection areas

Small diameter allows it to be used in the tight spaces

Powerful and perfect for inspecting most spark plug holes

Super bright LED and high resolution provide crystal clear images
Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections

What kind of Autel Tablets work with this MaxiVideo MV108 8.5mm / MV105 5.5mm?

It works with the following Autel tablets:

MaxiSys MS906S, MaxiSys MS906TS, MS906BT, MK906BT, MS906 Pro, MS906 Pro-TS, MS908, MS908 Pro, MS908S, MS908S Pro, MK908, MK908P, Maxisys Elite, Elite II, MS909, MS919, and Ultra.

New added Applicable Models as following: MK808/ MK808BT/ MK808TS / MP808/ MP808BT/ MP808TS /MX808/ MX808TS/ DS808/ DS808BT/ DS808K/ DS808TS

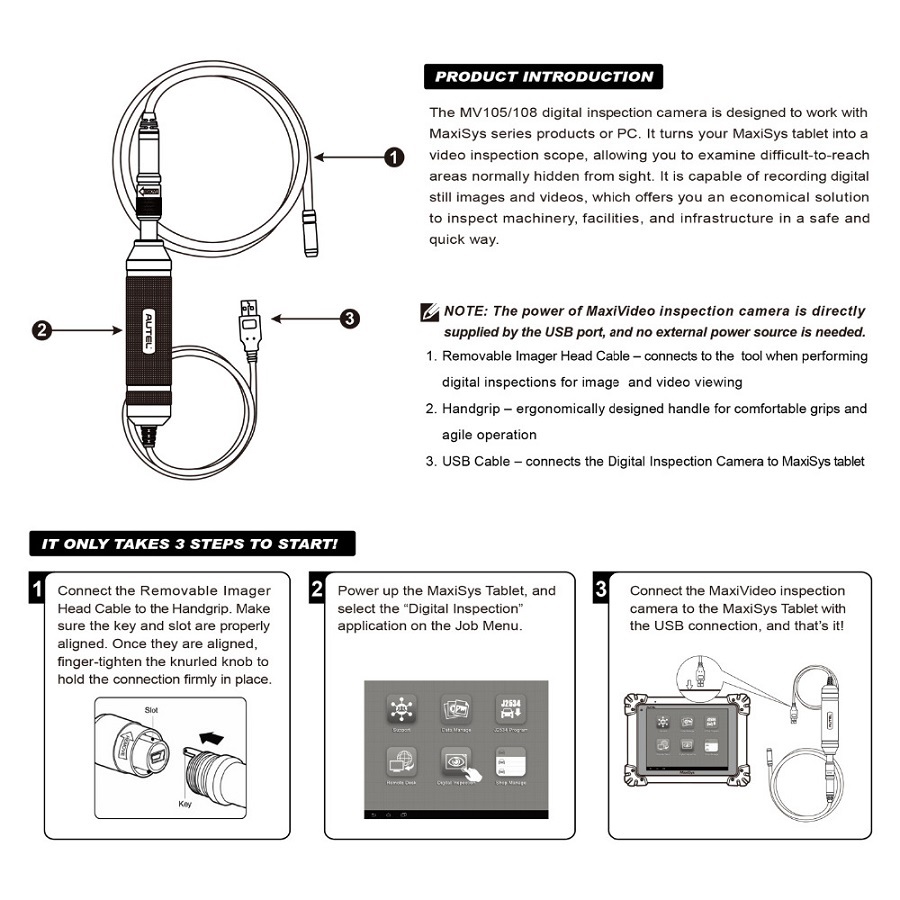

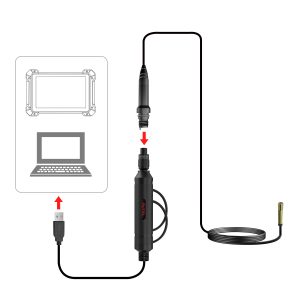

MaxiVideo MV108 8.5mm Digital Inspection Camera Connection:Step 1:

Connect the Removable Imager Head Cable to the Handgrip. Make sure the key and slot are properly aligned. Once they are aligned, finger-tighten the knurled knob to hold the connection firmly in place.Step 2:
Power up the MaxiSys Tablet, and select the “Digital Inspection” application on the Job Menu.

Step 3:

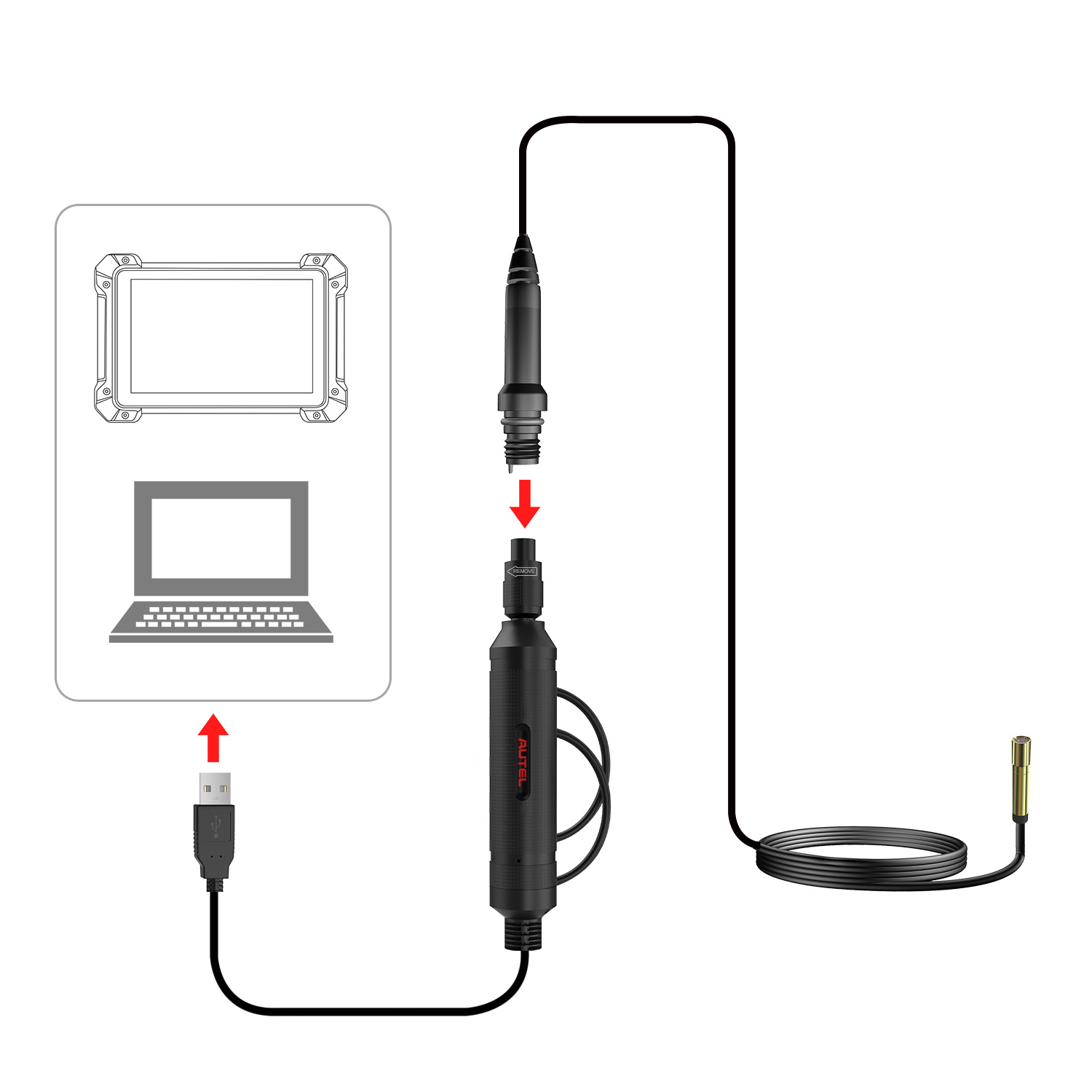

Connect the MaxiVideo inspection camera to the MaxiSys Tablet with the USB connection, and that’s it!

Optimal Viewing Distance: 1″ to 14″ (2.54cm to 35.56cm)

Image Capture: 640×480

Image Head: 8.5mm (0.33″)

Operating Temperature: Main Unit: 0°C to 50°C (32°F to 122°F)

Cable: -10°C to 70°C (14°F to 158°F)

Storage Temperature: -20°C to 75°C (-4°F to 167°F)

Weight: 0.3kg with 8.5mm diameter imager head

Compliance: FCC (EMC), CE (EMC and LVD)

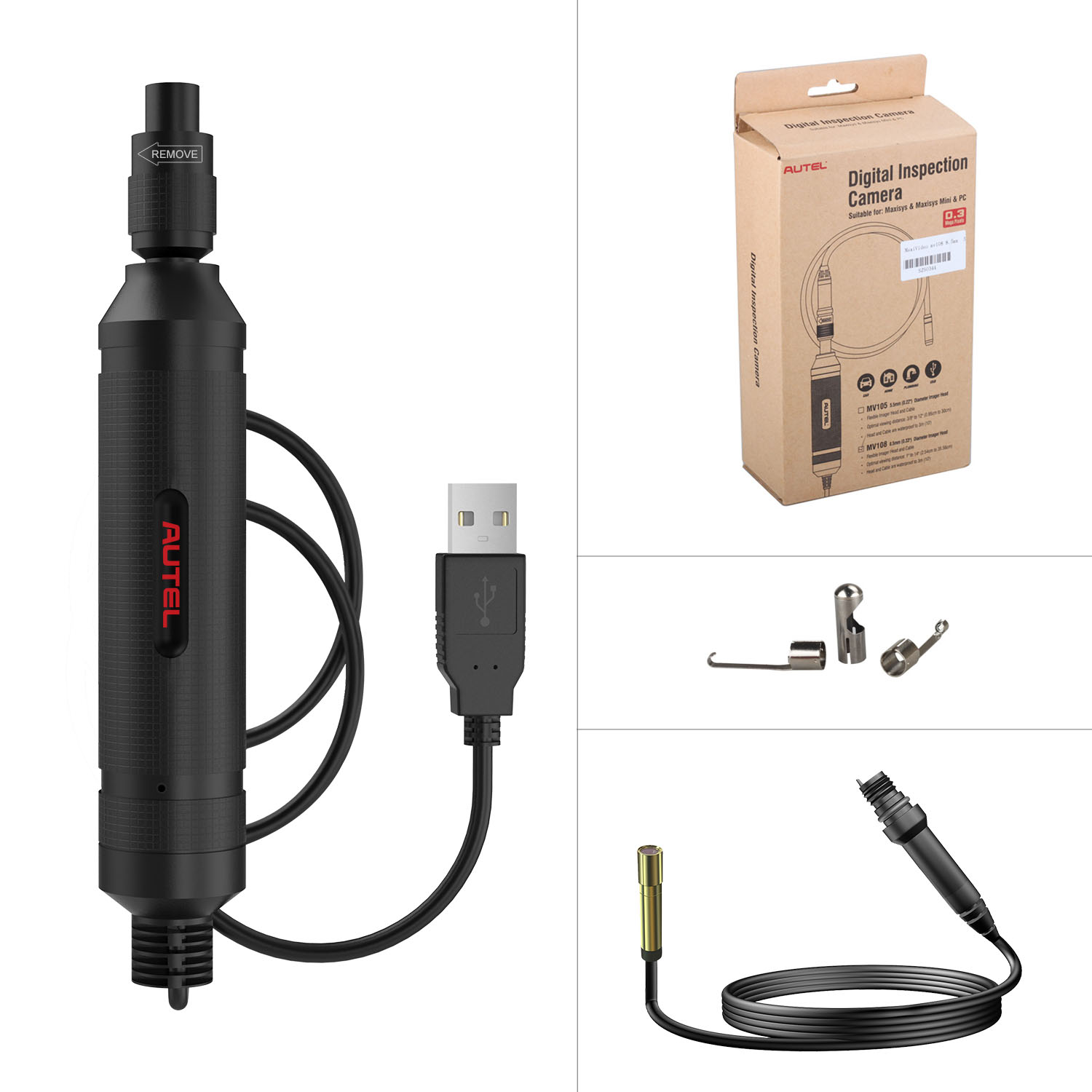

1pc x Magnet

1pc x Mirror
