GODIAG BMW CAS1/CAS2 Mech-Key Test Platform Detect CAS & Key Synchronization Solder-free Matching CAS Data Read, Write and Program

GODIAG BMW CAS1 / CAS2 Mech-Key Test Platform Detect CAS & Key Synchronization Solder-free Matching CAS Data Read, Write and Program

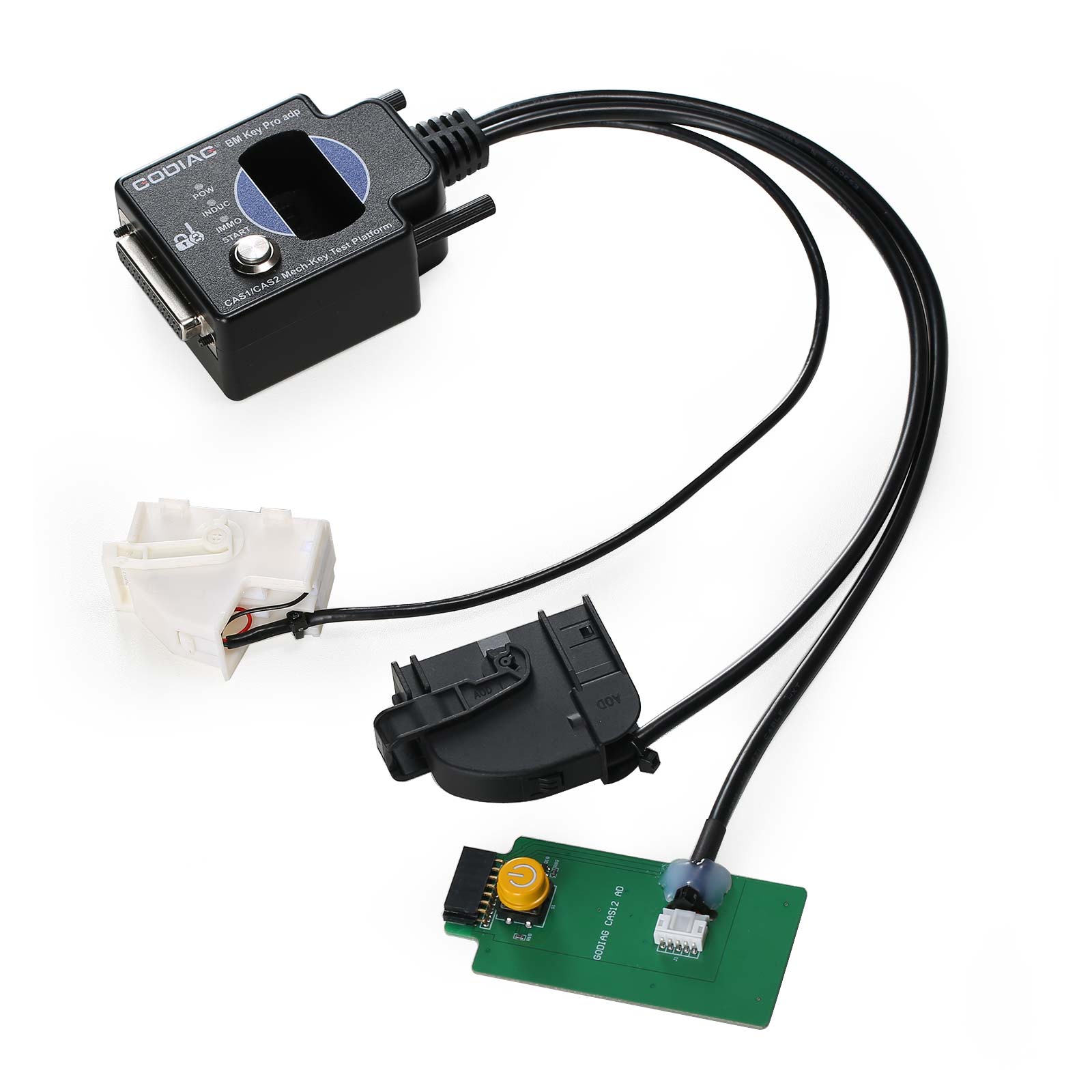

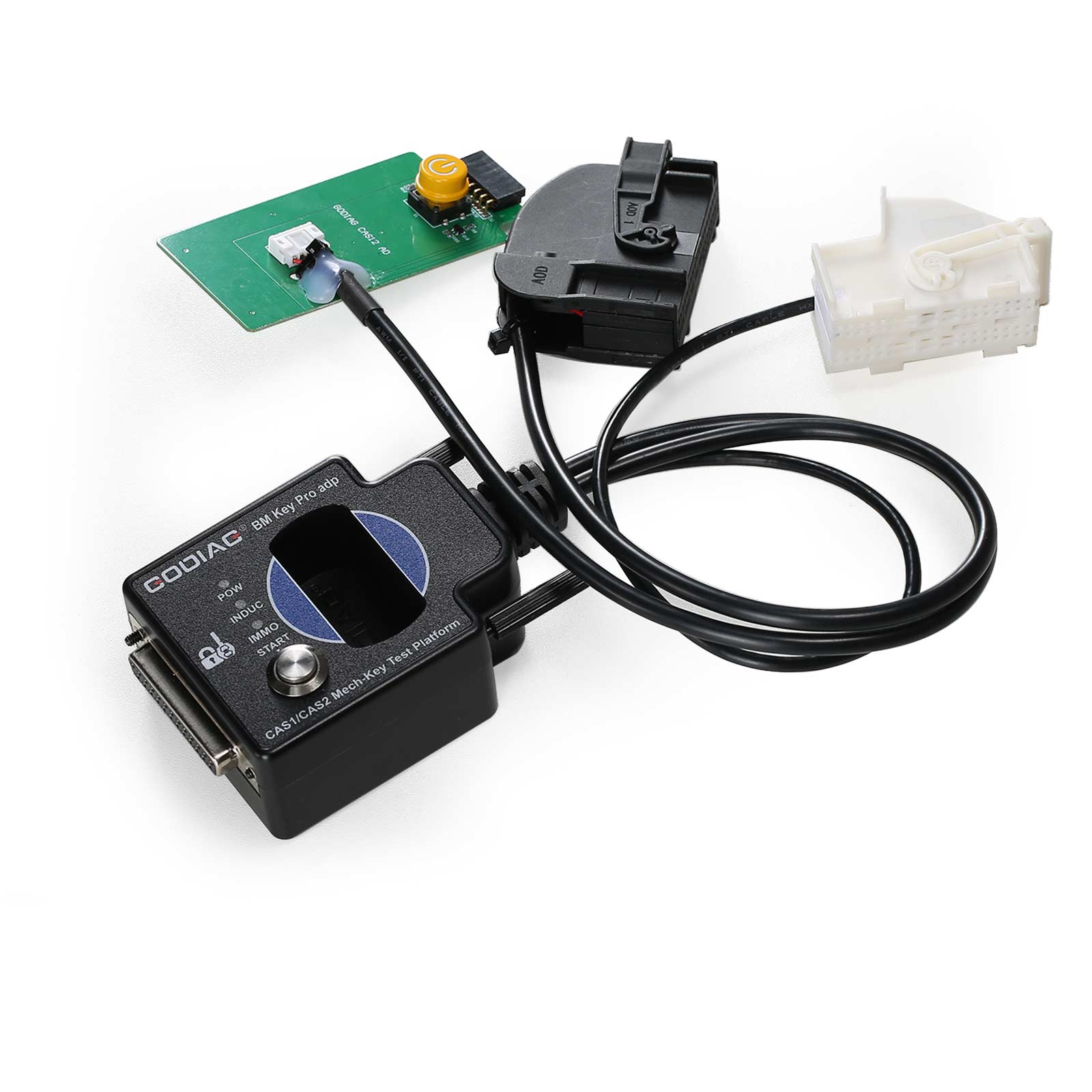

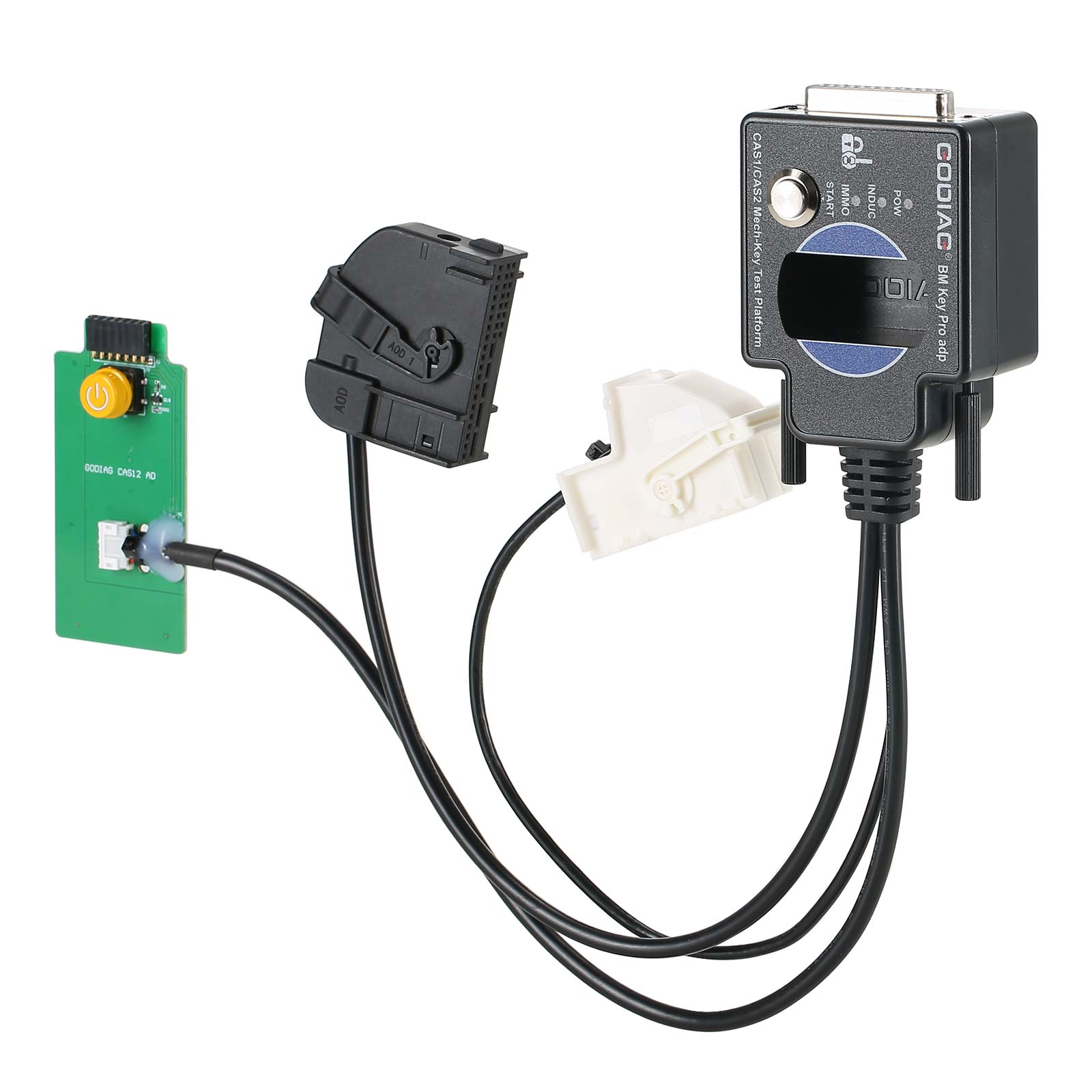

GODIAG BMW CAS1/CAS2 Mech-Key Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS1 / CAS2 programming engineers. It can cooperate with key programming devices like Autel IM608 II to perform all key lost matching or key addition operations. Please note that this product is only suitable for mechanical keys.

Note: GODIAG BMW CAS1/CAS2 Mech-Key Test Platform does not support semi-intelligent smart key CAS2 and cannot be used with diagnostic equipment or with GT100, GT100+. If necessary, please purchase a semi-intelligent smart key detection platform for the semi-intelligent smart key CAS2.

Highlights:

1. Detect CAS and key synchronization

2. Solder-free matching CAS1/CAS2 mechanical key

3. CAS data reading, writing and programming

4. All keys lost /adding keys matching

5. CAS key data backup

6. CAS module function judgment

Functions:

1.Check if the CAS1/CAS2 module and mechanical keys are synchronized.

2. Compatible with the key programming devices likes Autel MaxiIM IM608 PRO II to perform all key lost matching or key addition operations.

3. CAS1/CAS2 module diagnostics

4.CAS1 / CAS2 module programming

Synchronous detection of module and key:

Check whether the CAS2 module and mechanical key can be synchronized:

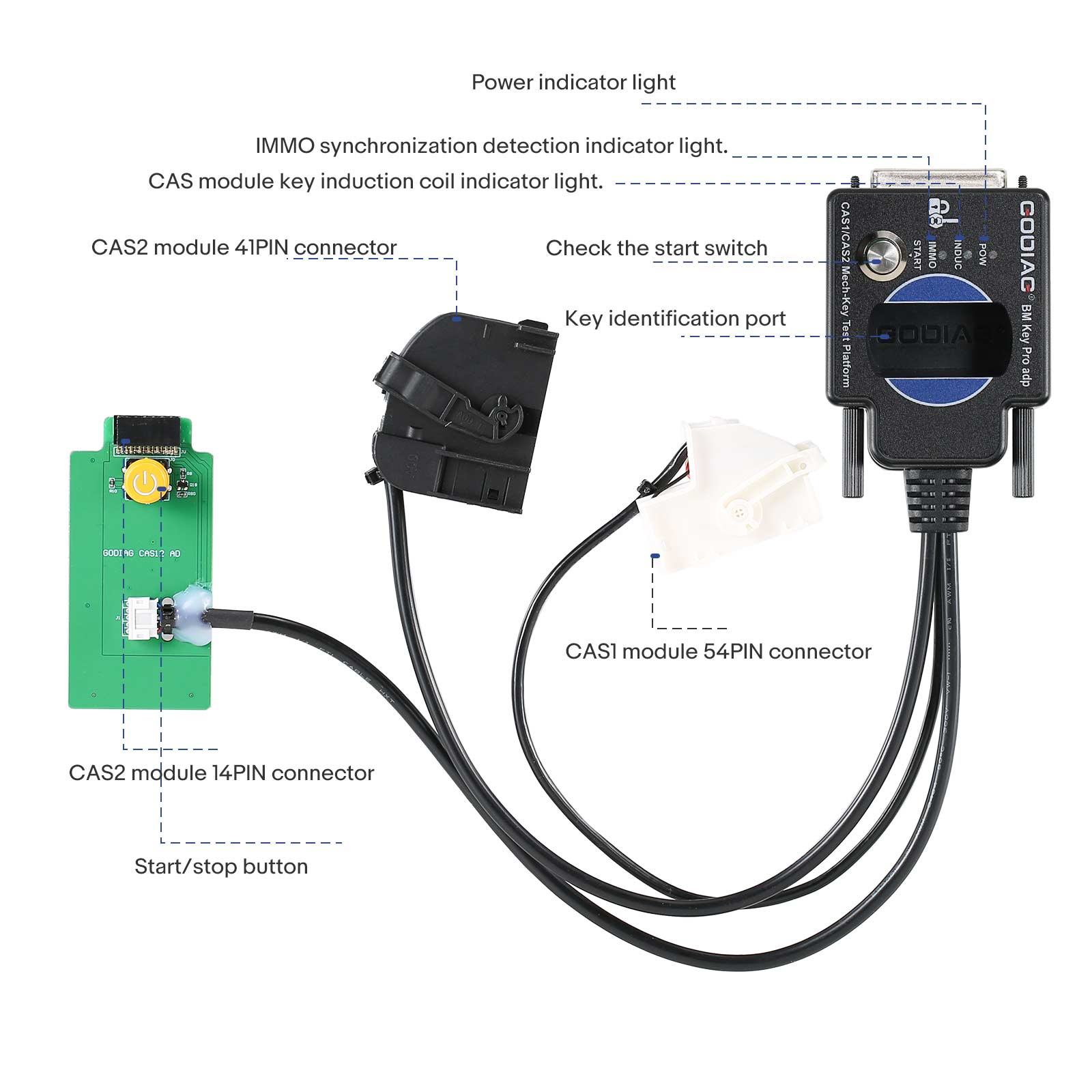

Step 1: Connect the CAS2 module according to the connection diagram

Step 2: Put the key into the key sensing area

Step 3: Connect the power supply.

Step 4: Press the start switch (press the start switch once to turn on the CAS power and automatically detect whether the key and CAS are synchronized, press it again to turn off the CAS power and turn off the detection).

Synchronization judgment method: when the detection start switch is pressed, the Power indicator light will light up. If the key is synchronized with CAS2, the CAS module key induction coil indicator light will flash regularly. If it is an unsynchronized key, the key induction coil indicator light will only flash quickly for 2 seconds. [If the key is synchronized with the CAS module, the IMMO synchronization detection indicator light will light up and the internal buzzer of the machine will sound. If the key is not synchronized with the CAS module, the IMMO synchronization detection indicator light will not light up and the internal buzzer of the machine will not sound.]

Step 5: Press and hold the analog start/stop button, the IMMO synchronization detection indicator light will go out after 3 seconds. The INDUC sensor indicator light also goes out. After releasing, the IMMO synchronization detection indicator light will light up. The INDUC sensor indicator light flashes.

CAS1 module and key synchronization detection:

1. Connect the device according to the connection diagram. Please use 12V 2.5A for power supply, otherwise the CAS1 module cannot be driven. [Do not connect the CAS2 module]

2. Press the start switch [you can see the START-STOP indicator light on the CAS lights up]

3. Insert the key into CAS1

4. Press the CAS1 key. If the key is synchronized with the CAS1 module, the CAS1 key will be locked. It will automatically exits if the key is not synchronized.

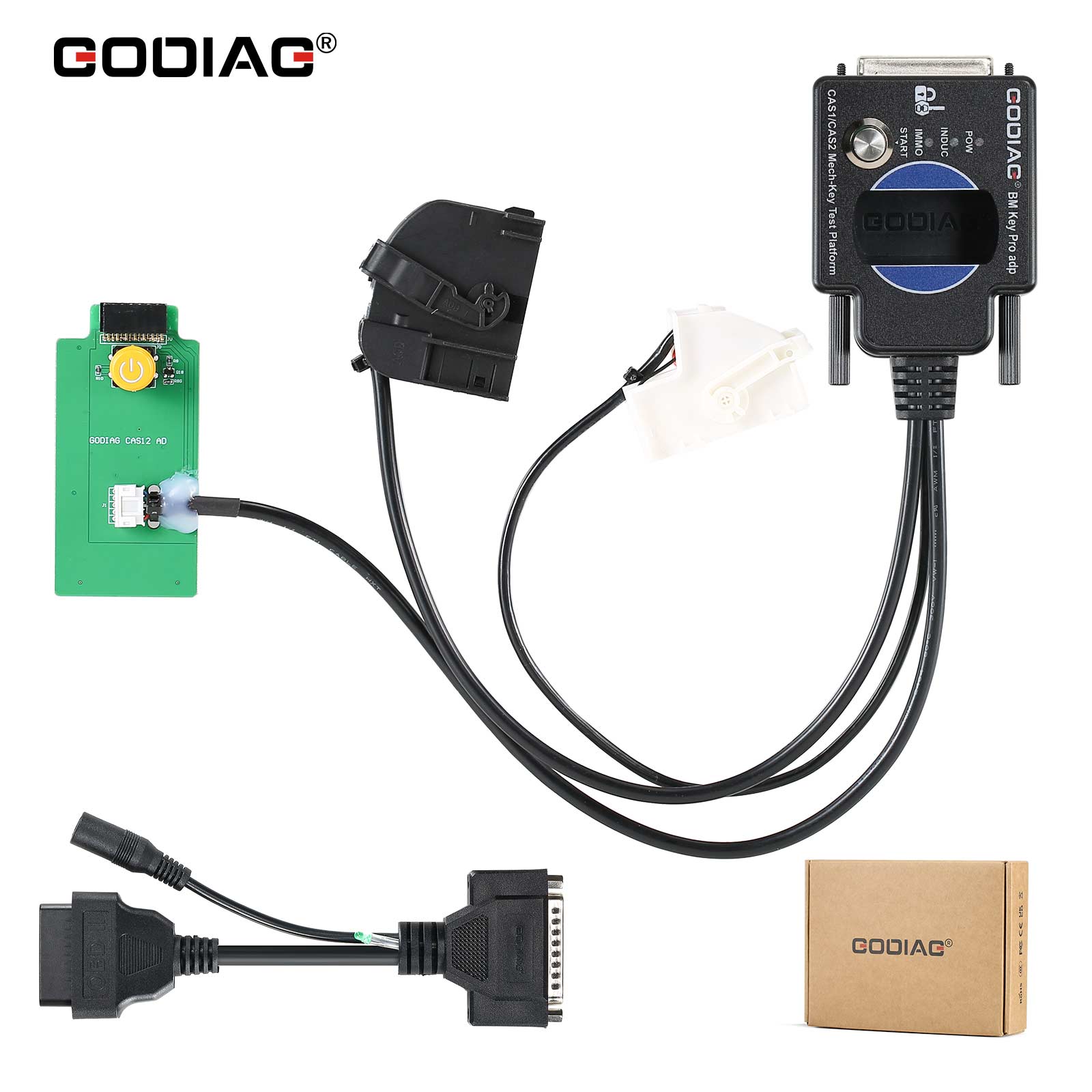

Package Includes:

1pc x GODIAG BMW CAS1/CAS2 Mech-Key Test Platform

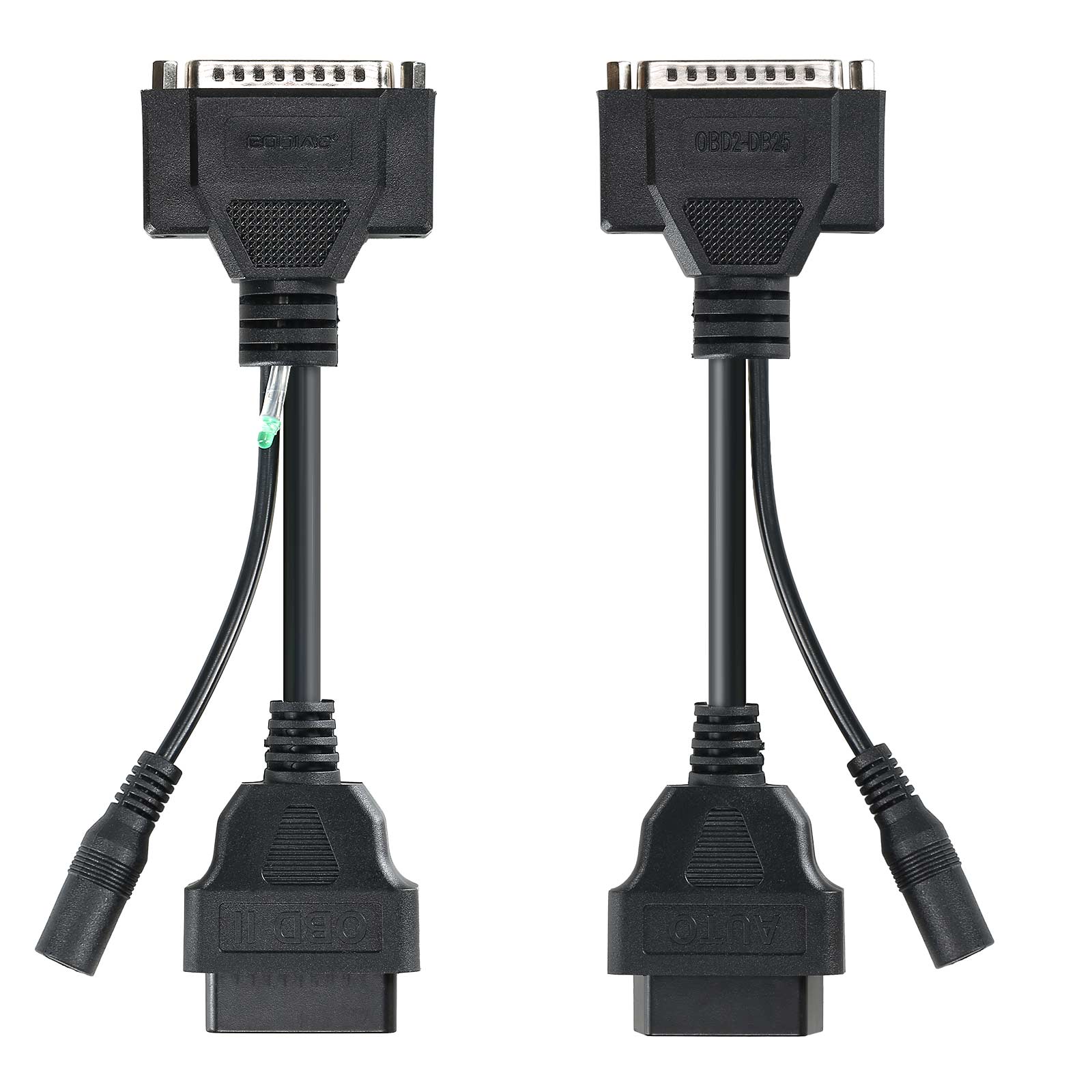

1pc x OBD2 to DB25 Cable
