Description
100% Original Autel XP400 Pro Key Programming Adapter for IM508 / IM608 Advanced All-in-One Key Programmer
Top 9 Reasons to Get Autel XP400 Pro:
1. Includes 1-Year Warranty
2. 2000+ MCU component types
3. 440+ EEPROM component types
4. 40+ Engine ECU component types
5. Compatible with IM508 and IM608
6. Free Software Updates for Life of Tool
7. 180+ Immobilizer ECU component types
8. 170+ types Odometer component reading functions
9. Expanded EEPROM functions for more component access
XP400 Pro tip: Free download software, click here.
Please note:Â XP400 Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth.
XP400 Pro Description:
The XP400 Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Â Also, added functions for EWS3, W209, NEC, and more.
The MaxiProgrammer XP400 Pro has been specially designed to work with Autel’s IM tablets like IM608, IM608 Pro to aid automotive technicians to program vehicle keys. With the newly upgraded key programmer XP400 Pro, the MaxiIM IM608 Pro is the most advanced key Programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android based 10.1-inch touchscreen tablet.
The new XP400 Pro supports key renewal on 11 key types with additional adapters – IMKPA, Key Programming Accessories Kit. Buy this accessories, please check XP400 PRO IMKPA Accessories.
Autel XP400 Pro Functions:
1. Read transponder data (including Mercedes Benz infrared smart
key), and generate exclusive keys.
2. Read/write on-board EEPROM chip data, and read/write
MCU/ECU chip data.
3. Read/write remote control transponder data and detect key
frequency.
4. Compatible with the key programming diagnostic tablet or a computer with installed key programming software, the XP400 Pro can read/write transponder data quickly and accurately.
IMKPA Kit
Expanded Key Programming Accessories
Supports over 10 key unlock types
BMW EWS3 key learning
Benz NEC key learing
Benz ESL_W209 read/write/erase
Compatible with IM508 and IM608 (XP400 Pro required)
XP400 Pro Adds Support For Following Chips:
EEPROM–>>AMD–>>AM29FXXX series chip
EEPROM–>> FUJITSU–>> MB29FXXX series chip
EEPROM–>> ST–>> M29FXXX series chip
Engine control module–>> ST–>> M29FXXX series chip
IMMO–>> BENZ–>> ESL_W209_W906(Motorola) read / write / erase function
IMMO–>> BMW–>>EWS3 module read/write function
REMOTE_RENEW(renew key)–>> NEC–>> V51 and V5 chip read / write / erase
XP400 Pro Specifications:
Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
Port Type: B-USB, DB26, DC12
Input Voltage: 5 VDC, 12VDC
Operating Current: < 500 mA
Maximum Consumption: 2.5 W

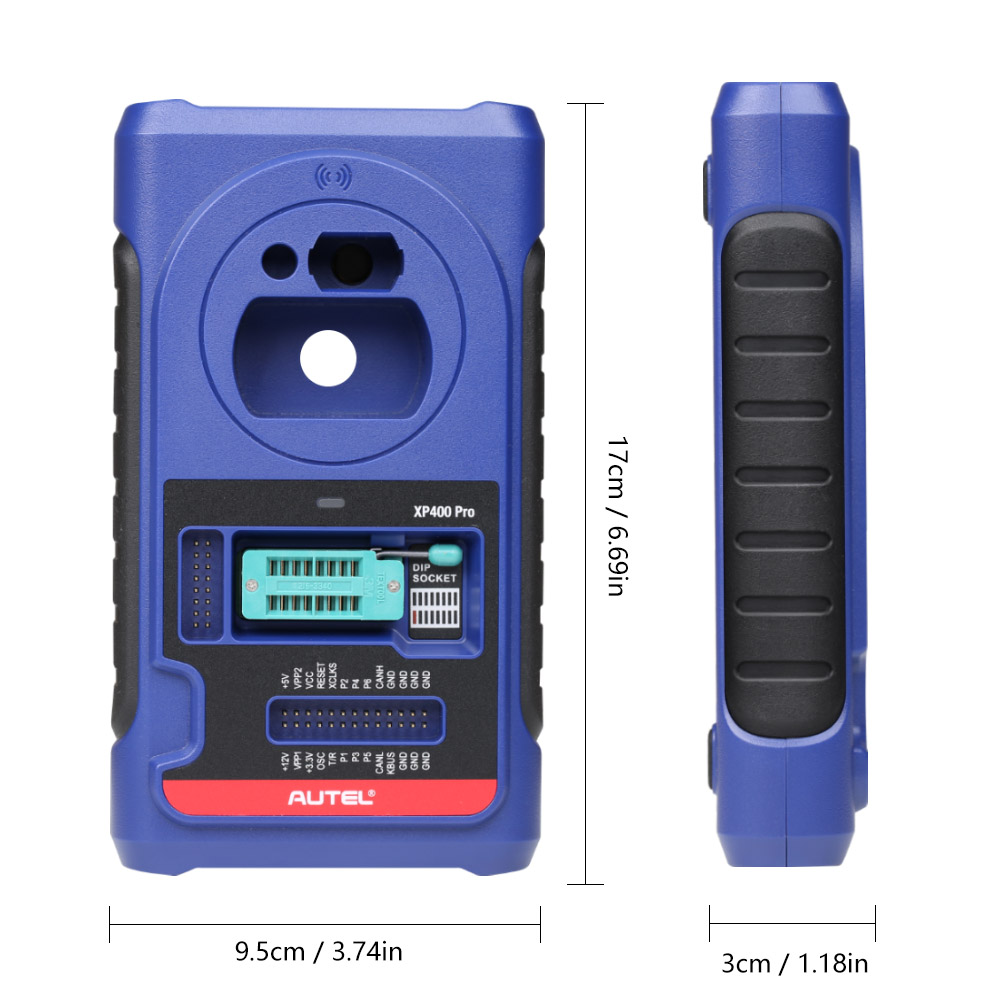

Device Dimensions: (L*W*H) 168 mm*98 mm*30 mm
Net Weight: 520g
Autel IMKPA Key Programming Accessories Kit to Use with XP400 Pro
The IMKPA accessories kit works with the XP400Pro and supports the following functions:
Currently supports over 10 key unlock types
BMW EWS3 key learning
Benz NEC key learning
Benz ESL_W209 read/write/erase
Compatible with IM508 and IM608 (XP400Pro required)
Includes 1-Year Warranty
Description:

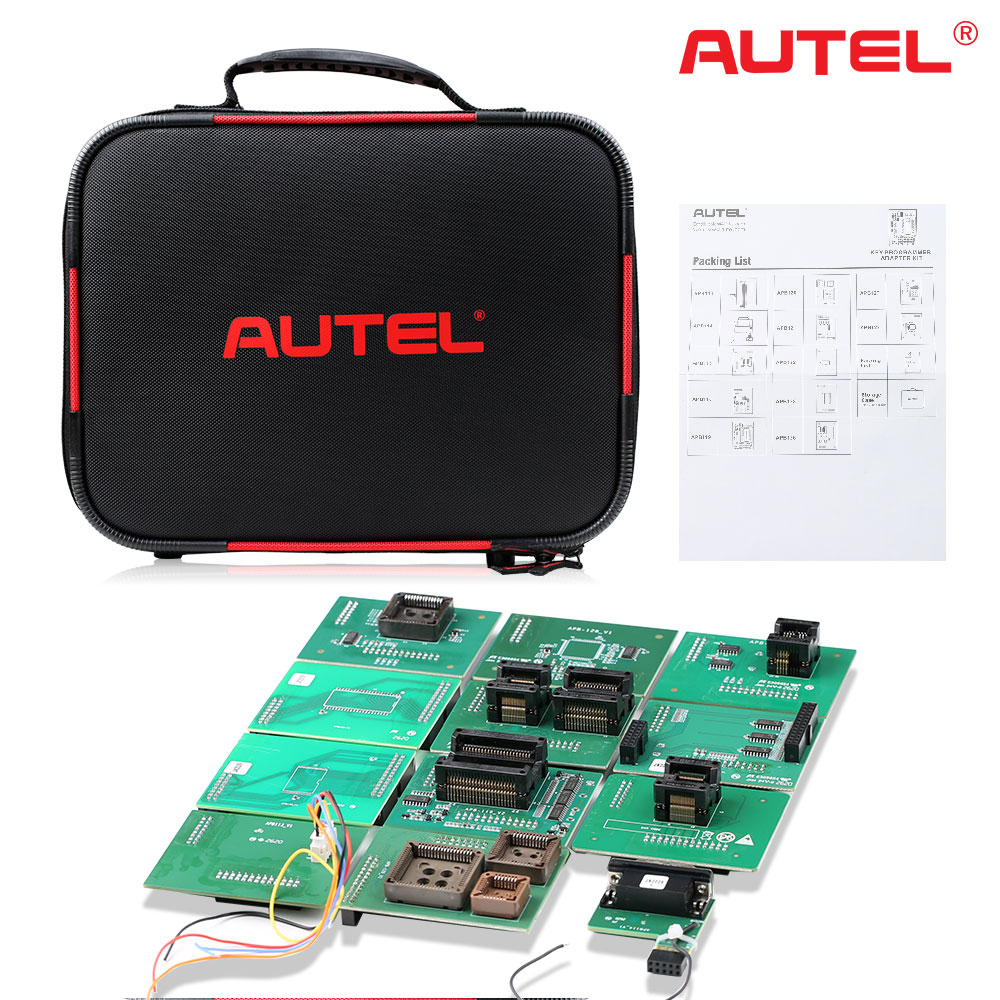

AUTEL IMKPA KEY PROGRAMMING ACCESSORIES KIT, compatible with the XP400Pro Key and Chip Programmer, includes 12 adapters for the XP400Pro that enables Read / Write / Erase for Mercedes Benz ESL_W209 / W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and Volkswagen / AUDI / BMW / Benz Key Unlock.

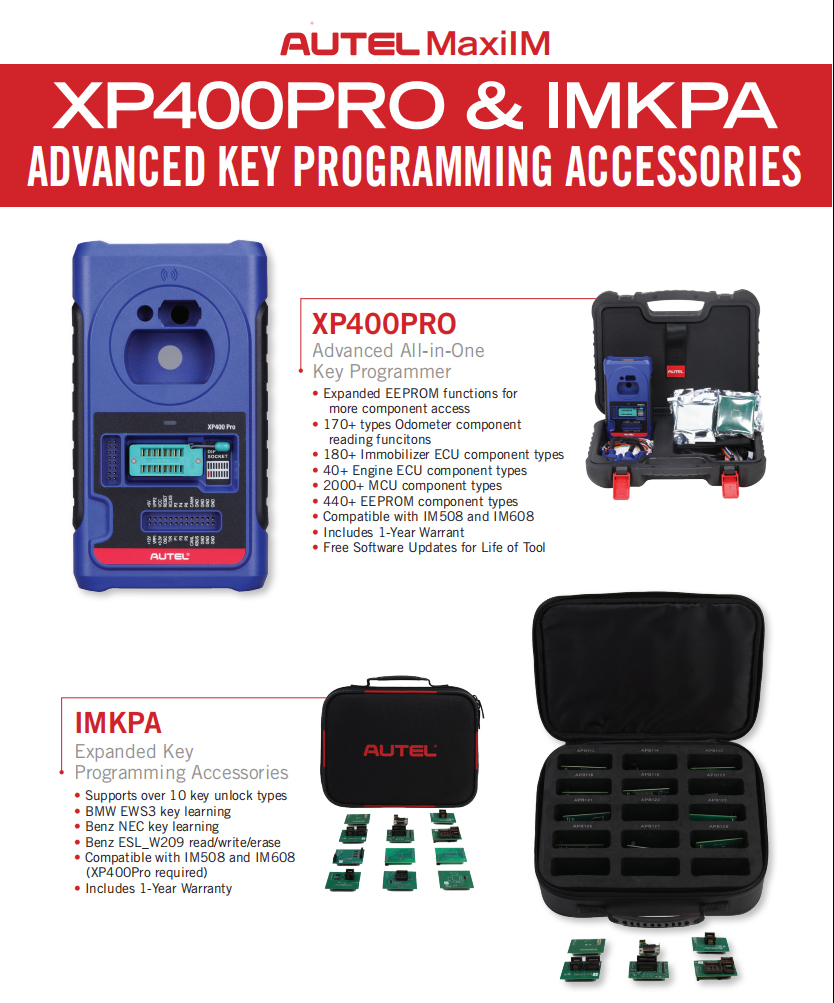

XP400PRO_IMKPA_Flyer

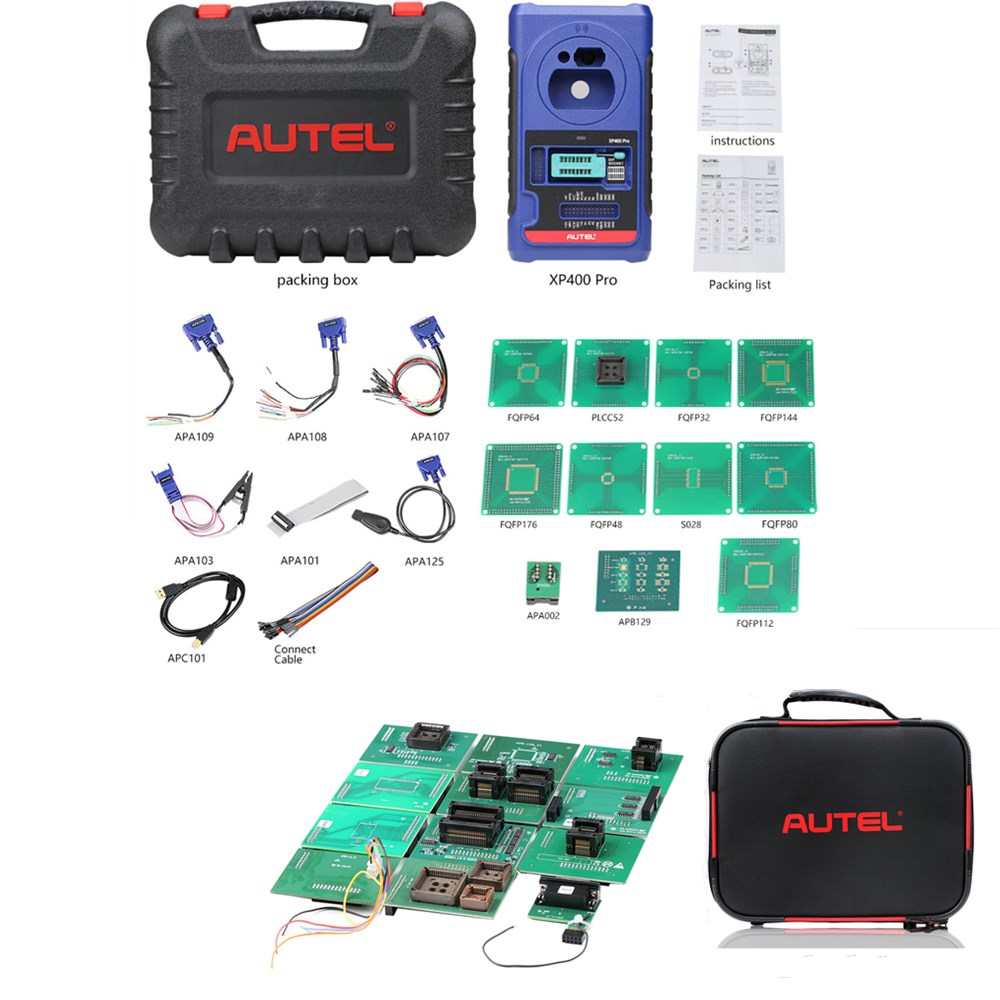

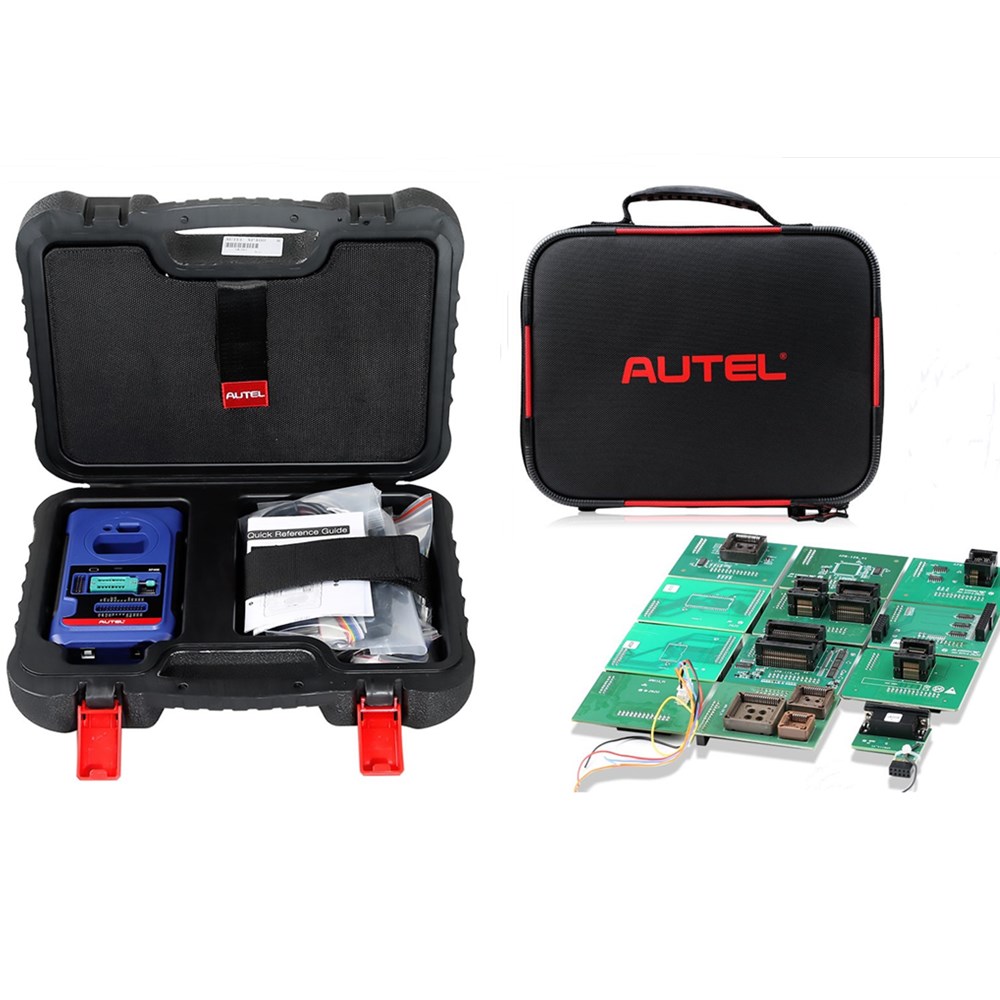

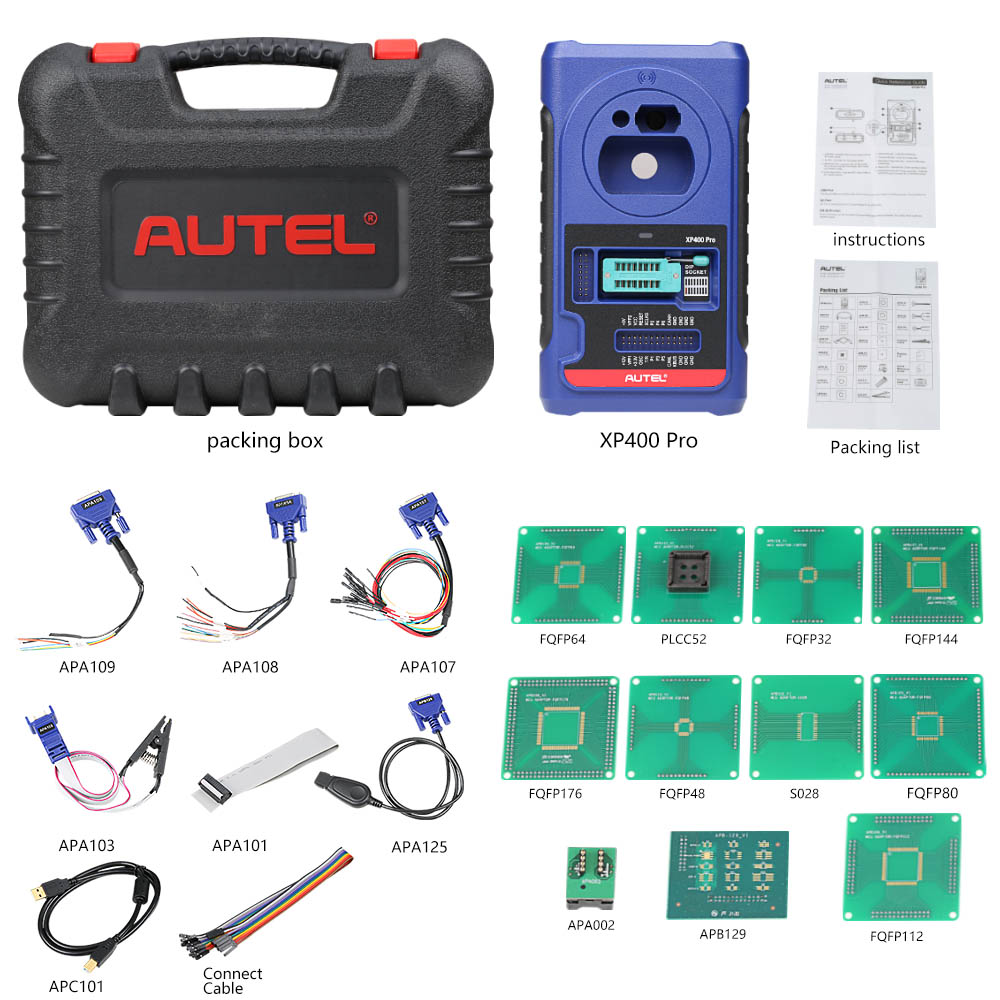

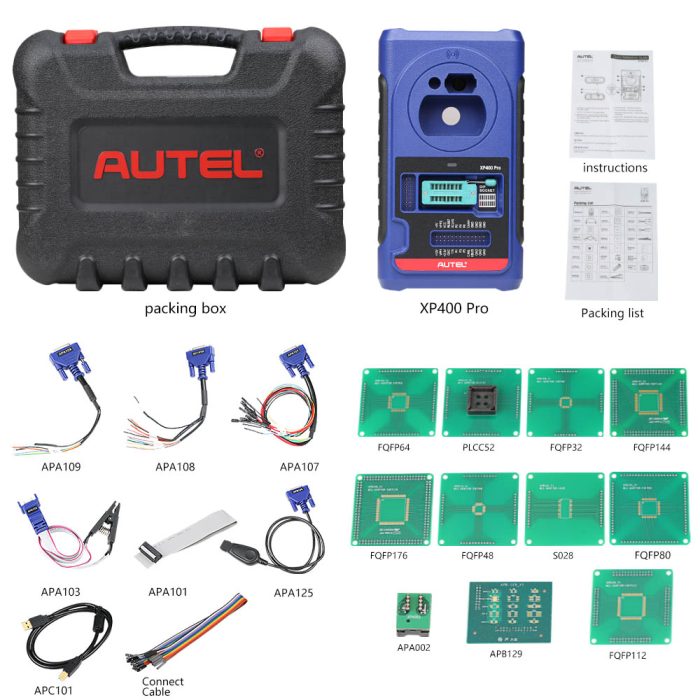

Package includes:

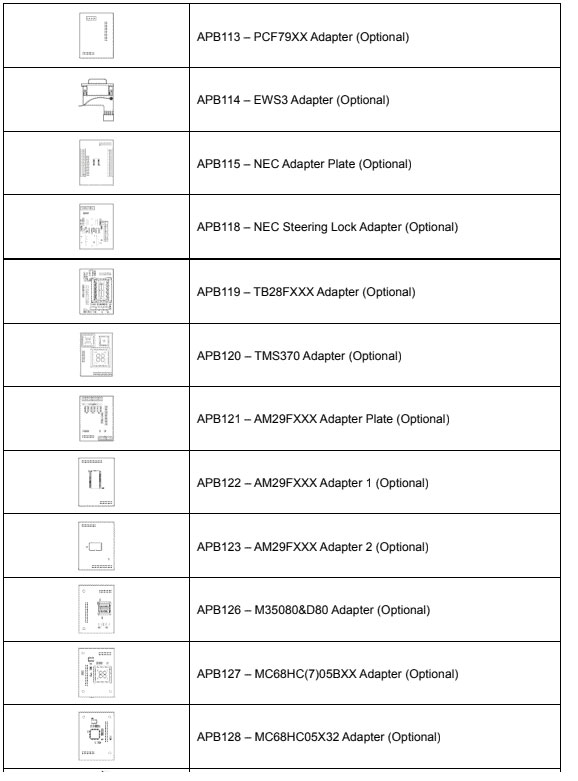

IMKPA List:
1pc x APB113 PCF79XXadaptor
1pc x APB114 EWS3 adaptor
1pc x APB115 NEC Adapter
1pc x APB118 NEC ELV adaptor
1pc x APB119 TB28FXXXadaptor
1pc x APB120 TMS370adaptor
1pc x APB121 AM29FXXX Adaptor
1pc x APB122 AM29FXXX adaptor
1pc x APB123 AM29FXXX adaptor
1pc x APB126 M35080/D80 adaptor board
1pc x APB127 MC68HC0(7)05BXX adaptor
1pc x APB128 MC68HC05X32 adaptor
1pc x Storage Case
