Autel Tesla Cable Set
Autel diagnostic cables for Tesla S & Tesla X vehicle models, enable Autel MaxiSYS MS908S Pro, Elite, Elite II, MS909, MS919, Ultra and Ultra Lite tablets to connect with Tesla S & Tesla X vehicles so as to activate factory mode and perform system diagnoses.

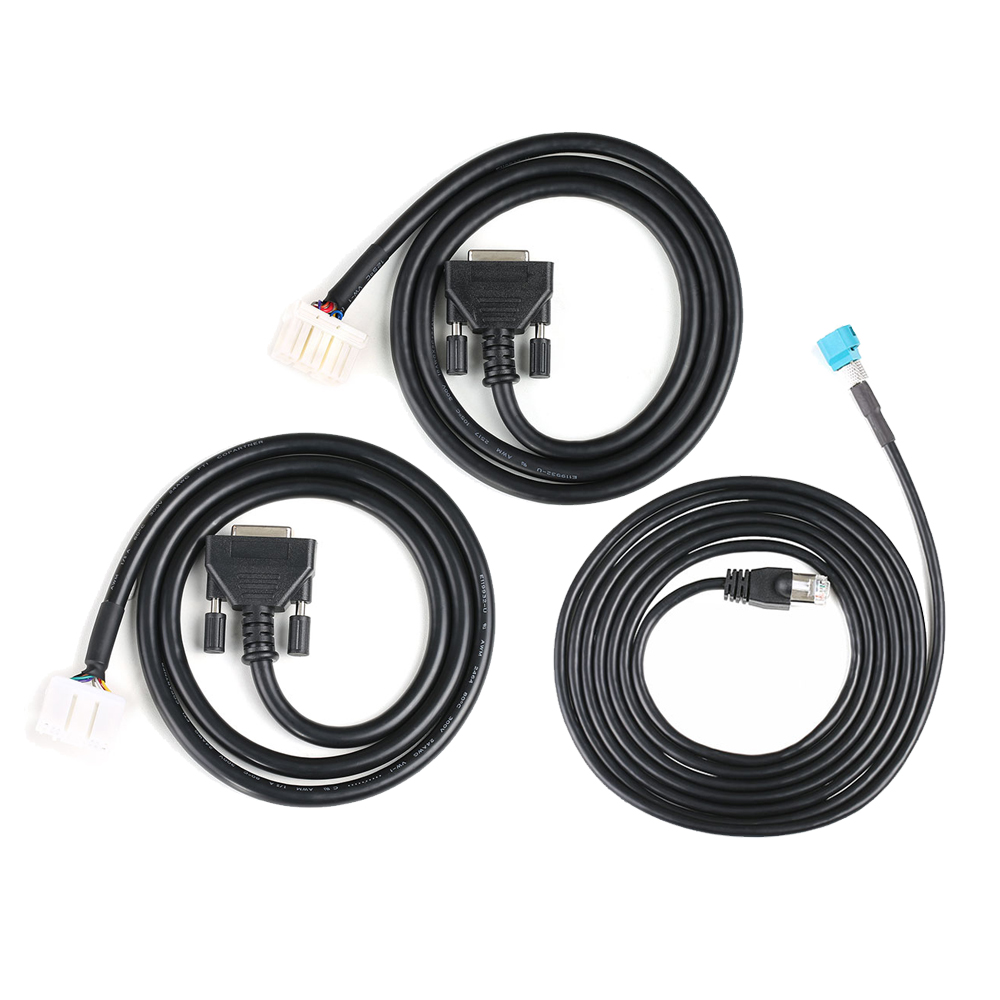

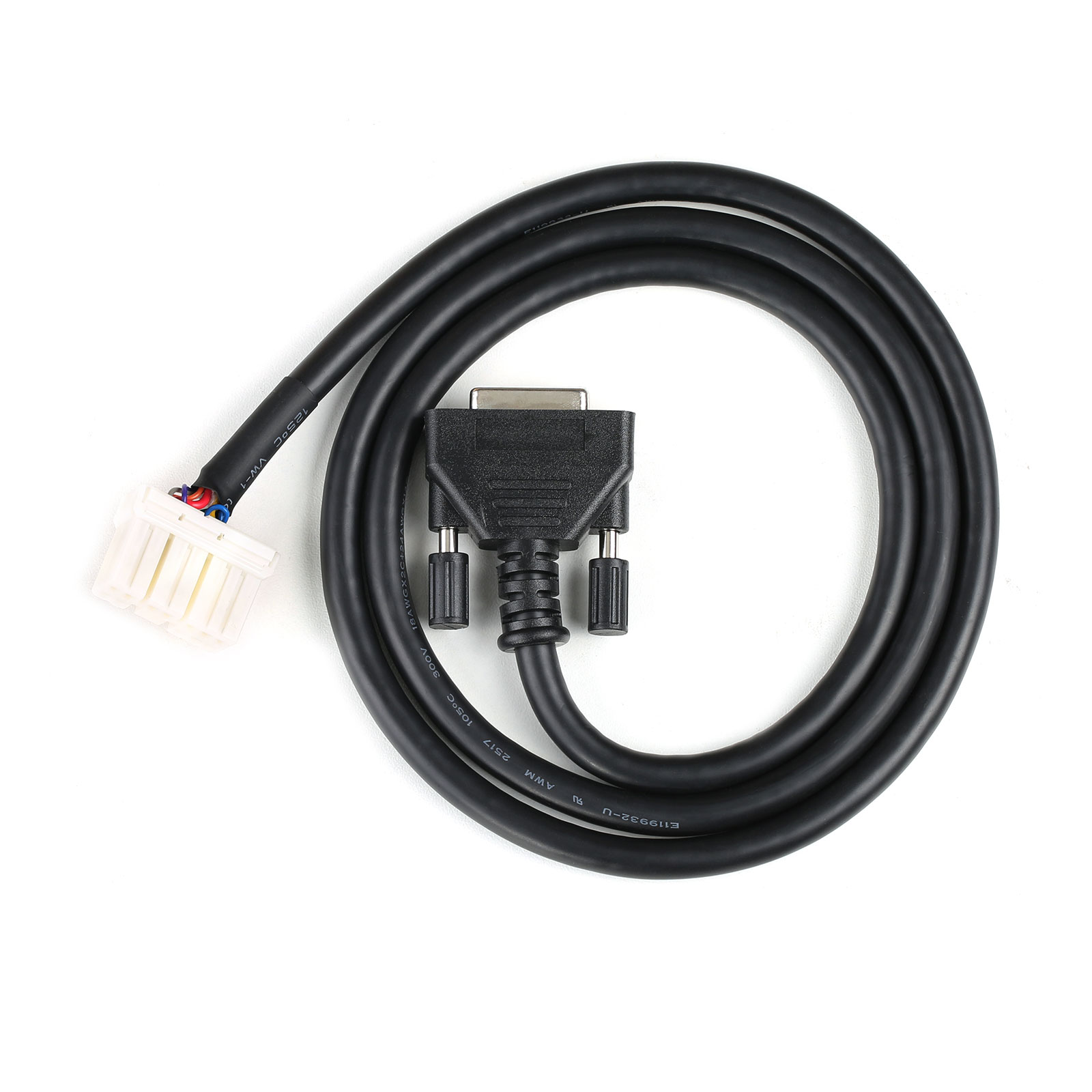

The Autel Tesla cable set includes three cables: TLAN001, TCAN001, and TCAN002.
Functions:
| Adapter Cable | Supported Model | Model Year | Connection Port | Connection Port Location | Function |
| TLAN001 | ModelS/Model X | All | X861 | On the back of the instrument cluster | Activate Factory Mode |
| TCAN001 | After Sep 2015 | X863 | Below the central control screen | Perform Diagnoses For LAN Related Systems |
|
| Before Sep 2015 | On the left side of the Instrument Cluster | ||||
| TCAN002 | After Sep 2015 | X437 | Below the central control screen | Perform Diagnoses For CAN Related Systems |
|
| Before Sep 2015 |

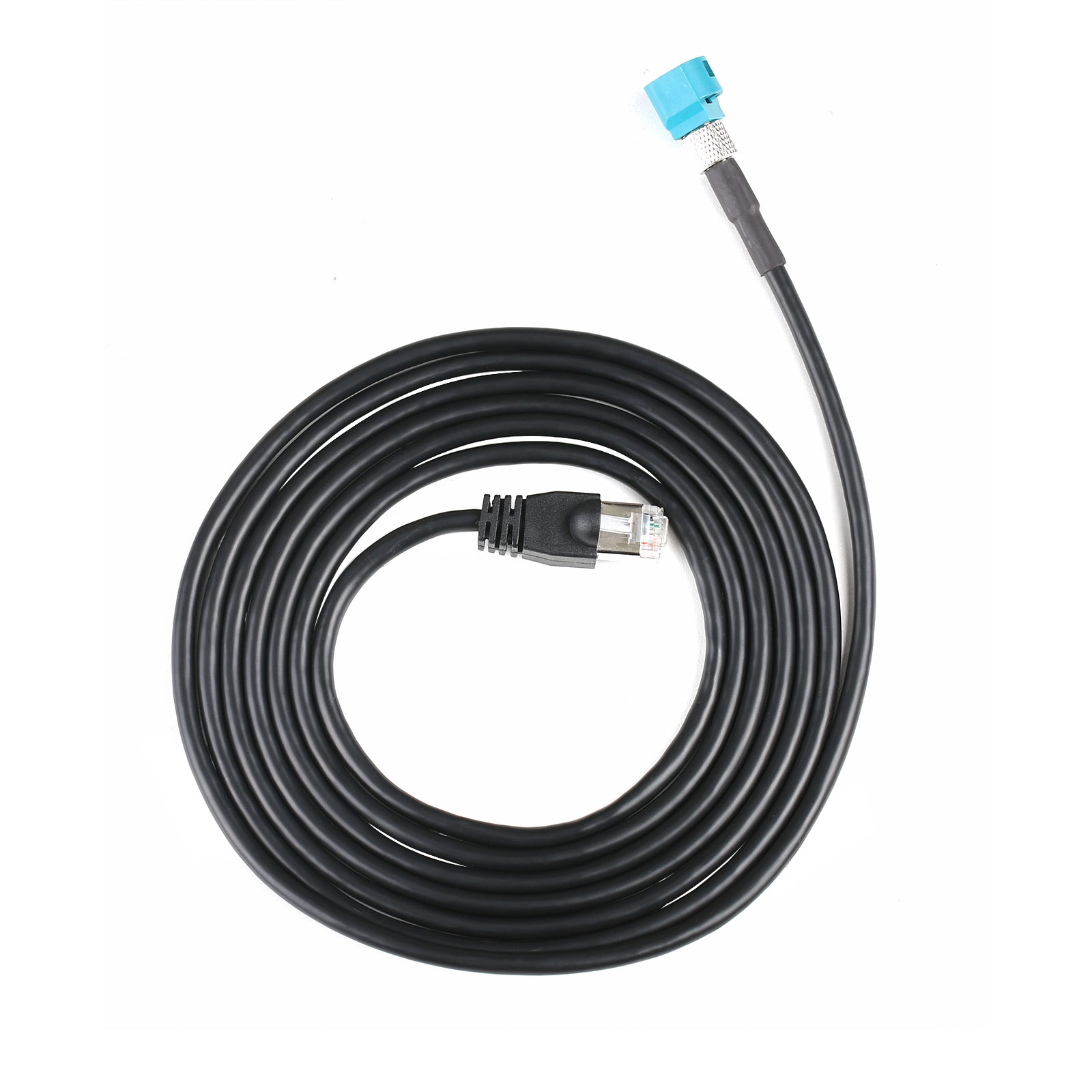

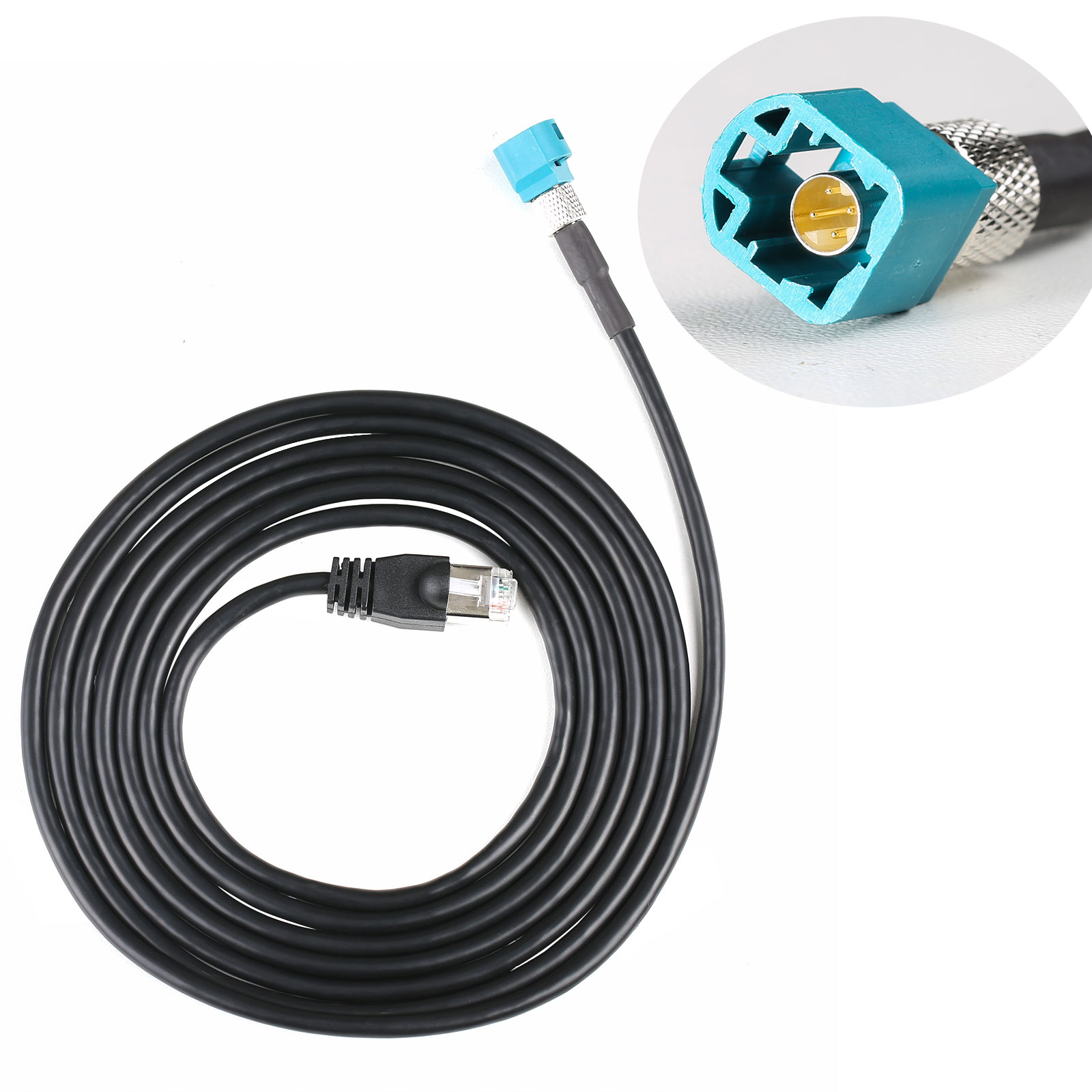

LAN001 – Connects to Tesla port X861 (located behind the instrument cluster) to activate factory mode (instrument cluster must be disassembled)
– Connects to Tesla port X863 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.
– Connects to Tesla port X863 (located to the left of the instrument cluster) for diagnostics pre-2015/Sept vehicles.

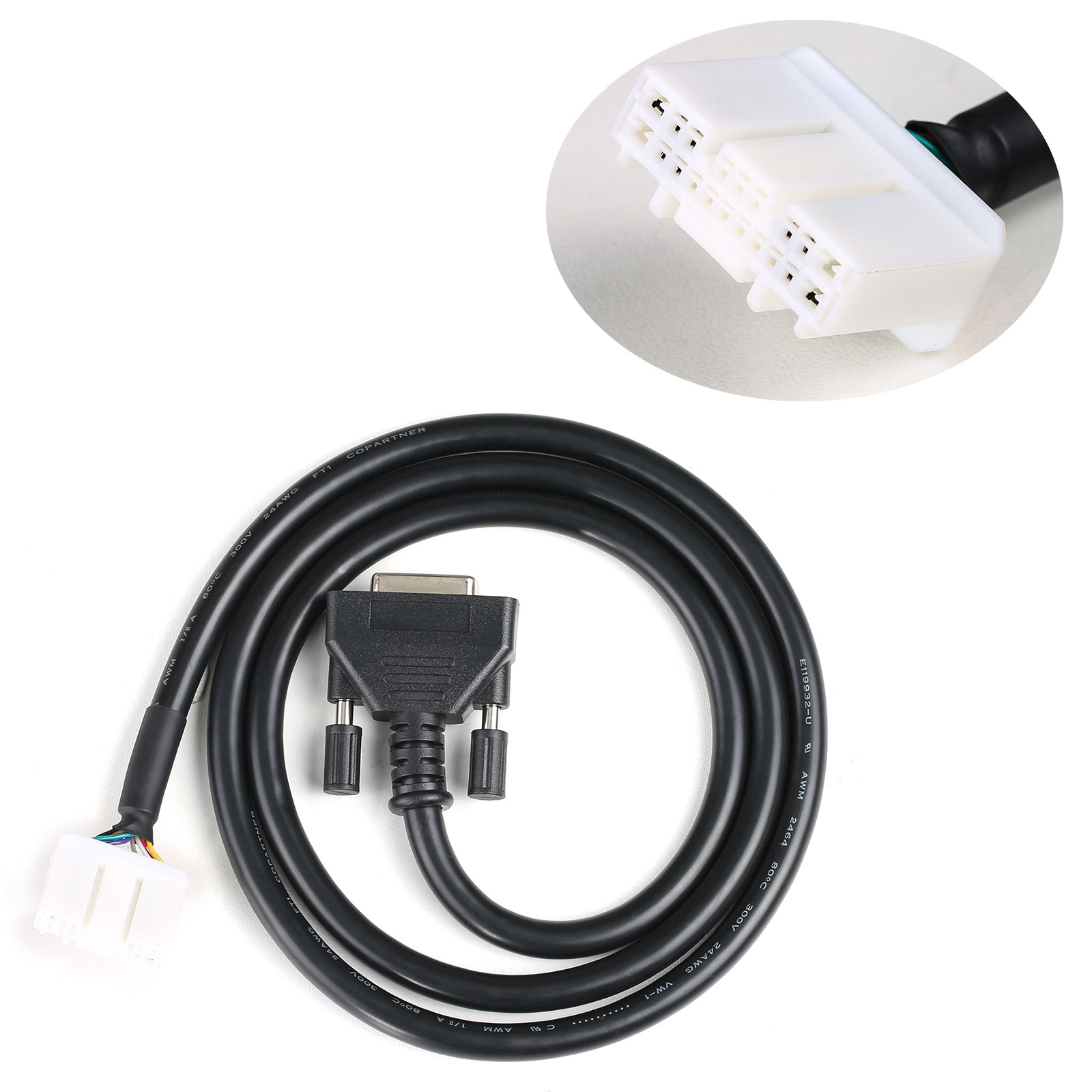

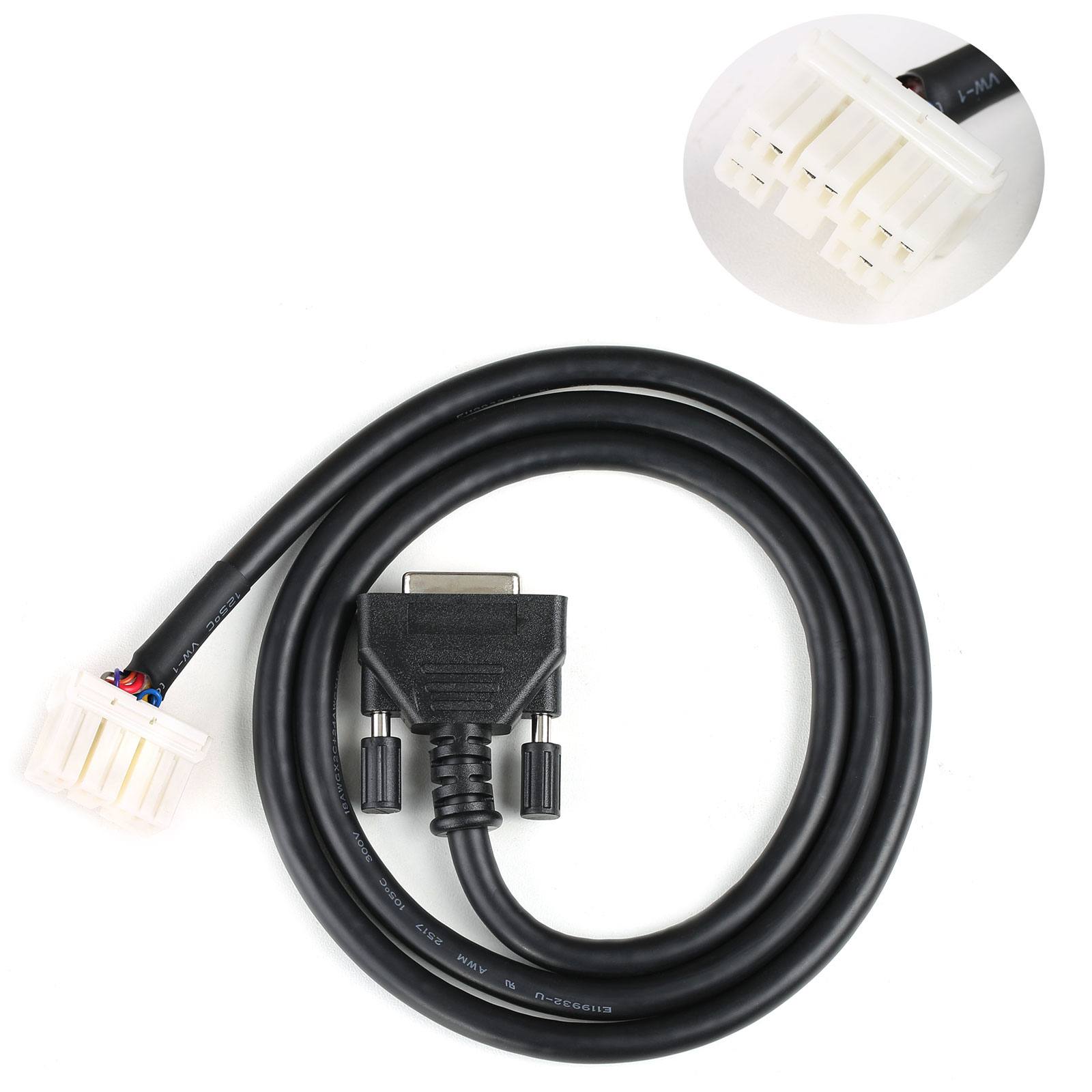

CAN001 – Connects to Tesla port X437 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.

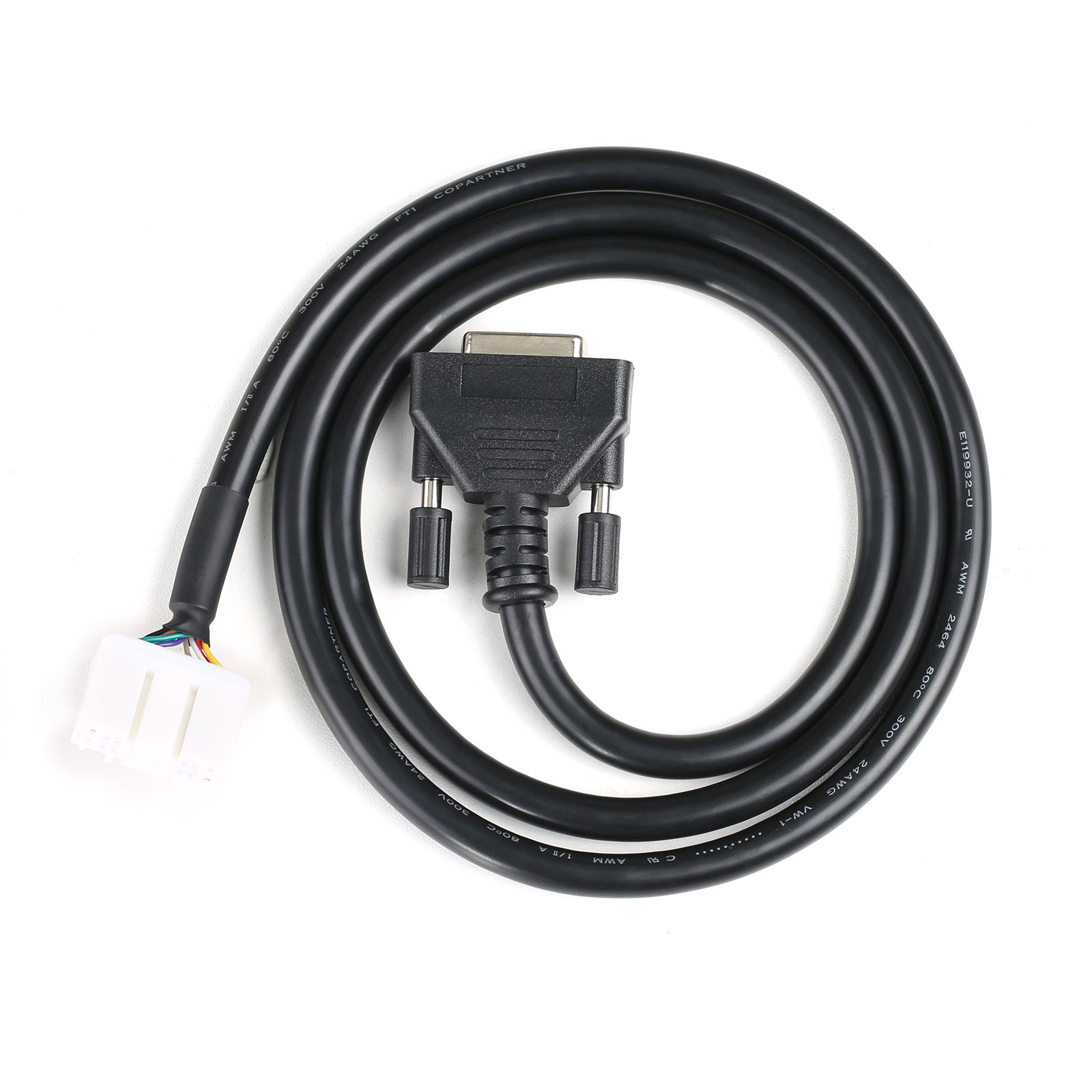

CAN002 – Connects to Tesla port X437 (located below the central control screen) for diagnostics of pre-2015/Sept vehicles.

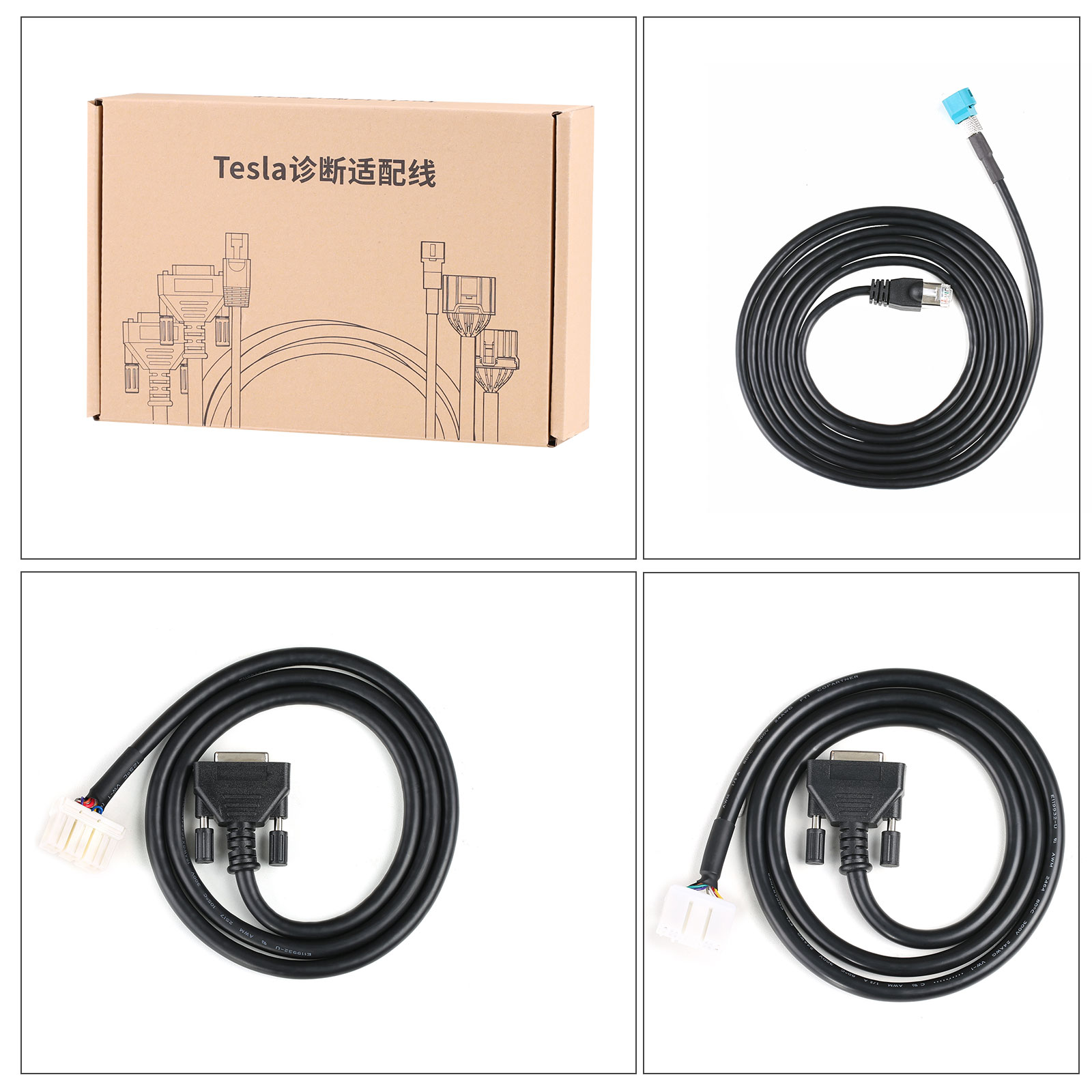

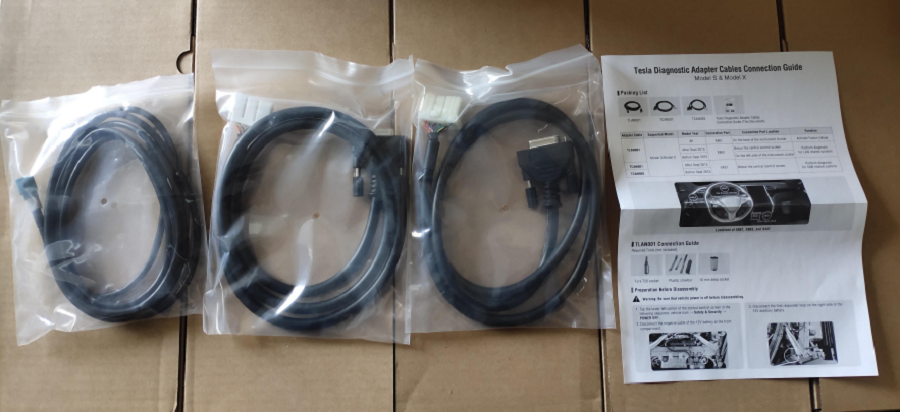

Package Includes:
1pc x TLAN001 cable
1pc x TCAN001 cable
1pc x TCAN002 cable
1pc x Tesla Diagnostic Adapter Cables Connection Guide
