Autel MaxiVCI VCI V200 Bluetooth Compatible with Autel MS906Pro/ MS906Pro-TS/ ITS600 DoIP and CAN FD

Autel MaxiVCI VCI V200 is a VCI (Vehicle Communication Interface) device, which is used with MS906 PRO MK906 PRO, MS906 PRO TS, MK906 PRO TS, KM100, BT609, BT608 and ITS600 tablets to do vehicle diagnoses.

Autel V200 supports DoIP and CAN FD protocols.:
This Bluetooth Connector Adapter Autel VCI V200 supports CAN FD/DO IP protocol, which data transfer rate up to 5Mbit/s to speed up data transfer and scan the all vehicle system quickly, saving more time for the mechanician or garage. Autel MaxiVCI V200 also supports CAN, EOBD, OBD, OBDII interfaces to cover more cars both old or new.

Wireless Bluetooth Technology
This Autel V200 VCI saves you from having to curl up at the steering wheel with tedious wires to repair your car, allowing you to repair the car freely around the car in 75 Feet. The ultra-fast OBDii port communication V200 can quickly transfer vehicle data to the scanner for accurate diagnostic results. More stable and fast with wireless Bluetooth Technology, saving time and win more business.

3 Steps Connect
Easy 3 Steps to connect vehicle and scanner:
1. Insert the Vehicle Data Connector on the MaxiVCl V200 into the vehicle’s DLC;
2. Power up the scanner;
3. Pair the scanner with the MaxiVCl V200 via Blueto-oth to establish communication. In addition, you can also plug the USB cable into the VCI200 to establish communication, and the system will give priority to USB communication. Both connection methods are simple and easy to understand.

Non-OBDII & OBD II Vehicle Connection

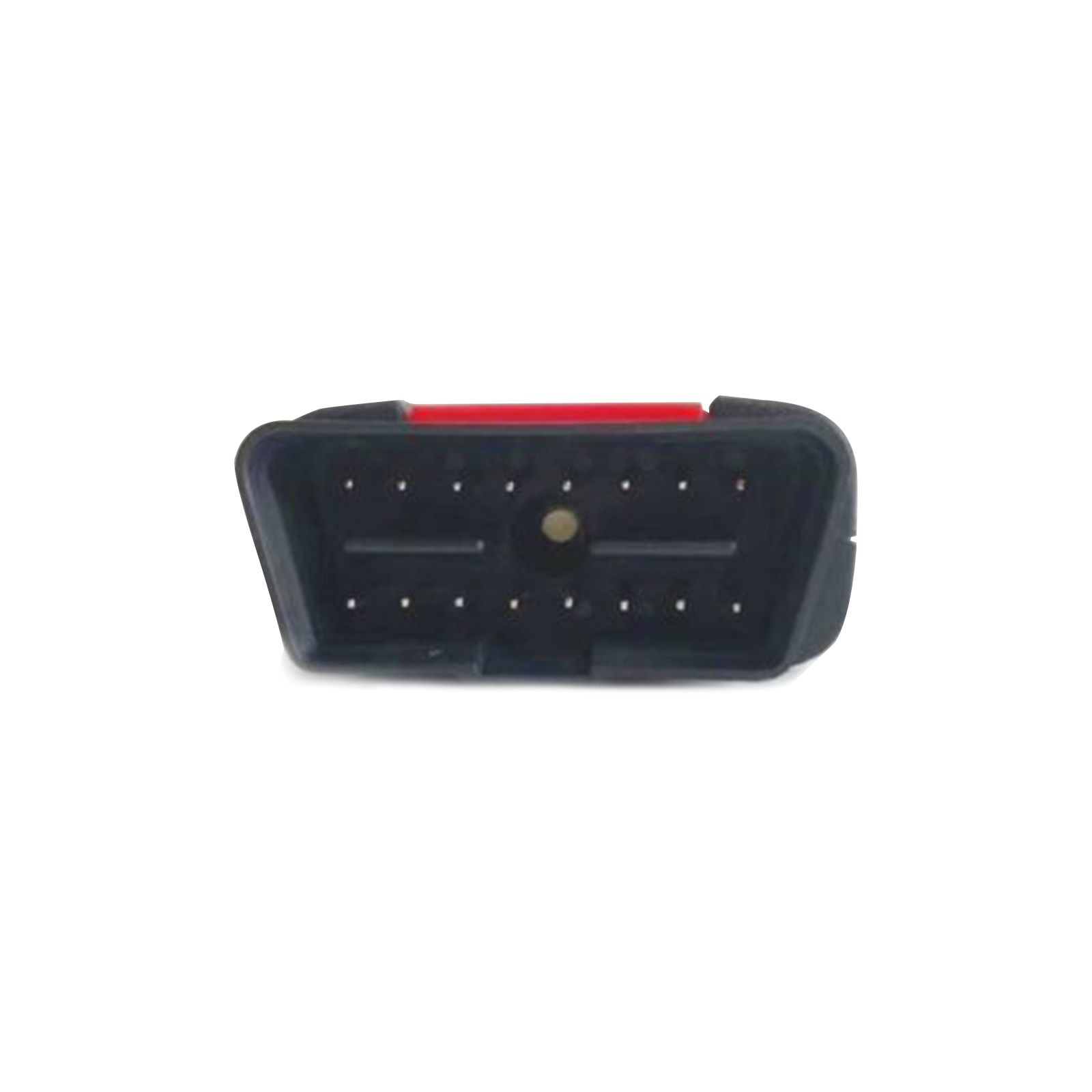

If your car with Non-OBDII port, you require OBDI adapter to complete connect: First locate the required OBDI adapter and connect its 16-pi-n jack to the Vehicle Data Connector on the MaxiVCI V200, then Connect the attached OBDI adapter to the vehicle’s DLC. If your vehicle is standard OBD II port, only Insert V200 into DLC, which is generally located under the vehicle dash.

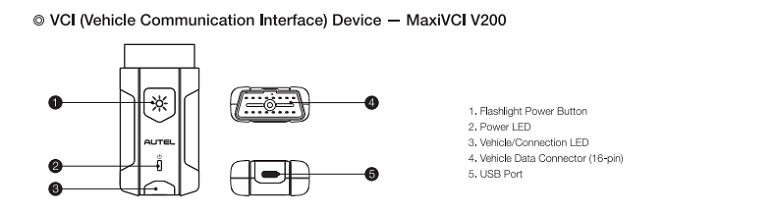

VCI LED Description:
