Description
2. precise laser measurement: tread depth & brake disc wear
3. comprehensive test report: TPMS health, tread depth & brake disc wear characteristics & repair tips.
AUTEL ITS600E Highlights:
1. Exclusive TPMS Status Screen
2. Tire Pressure Placard Value Reset
3. Wireless OBDII Connection Via Bluetooth VCI
4. Activate, Read, Relearn All Known TPMS Sensors
5. Fast OBD Ll Relearn For Most US Domestic Vehicles
6. Copy By OBD Sensor Programming For Faster Service
AUTEL ITS600E Other Features:
10. Free Update Online for One year, after one year, Autel ITS600E One Year Update Service charges 150 USD / Year.
11. Support 14 Languages: English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Russian, Italian, Japanese, Hungarian, Czech. (Please contact us if you want to change the language.)
MaxiTPMS TBE200E Top 7 Highlights:
1. Free Update Online Lifetime.
2. Laser Measurement Without Having to Remove Tires.
3. Full Tire Tread Depth and Brake Disc Wear Check 2 in 1
4. Use ITS600 to View and Print the Detailed TPMS Report.
5. 2 Test Modes Available to Test Single Tire or Comprehensive Four Tires.
6. Uneven Wear Analysis Without Measuring Different Parts for Several Times.
7. Multi-Language Supported: English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.
TBE200E Features:

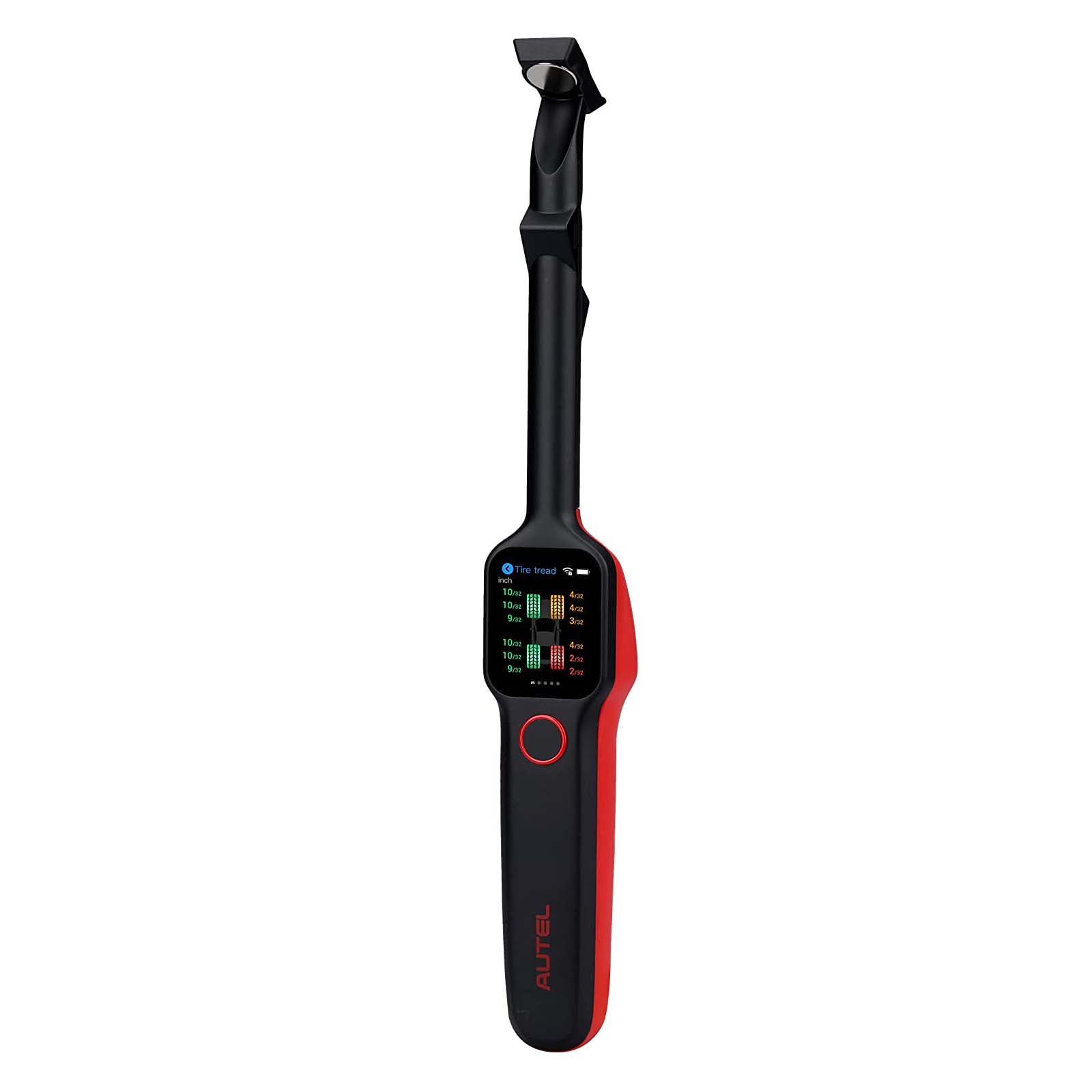

1. TIRE TREAD DEPTH & BRAKE DISC WEAR TESTERS
Why choose TBE200E? Autel MaxiTPMS TBE200E is not only a laser inspector with a measuring accuracy of 0.1 mm, but also can display measurements graphically. It is convenient for technicians and repair shops workers to measure tread depth/brake disc wear without removing wheels. TBE200E provides 4 possible results (Gray, Green, Yellow, Red) are represented to the degrees of tire wear/wear status, it offers accurate analysis to ensure your driving safety.
2. REAL-TIME TIRE HEALTH ANALYSIS
Autel TBE200E tread depth reader provides wear analysis and displays the measurement data curves in real-time and service advice on its 1.65-inch high resolution super Retina touchscreen AMOLED. The full-color graphical display illustrates wear and provides service advice, including tire and brake disc replacement, tire rotation, and 4-wheel alignment. Adding scan DOT, tire expiration notice, tire recall lookup functions help you get the tire data easier.

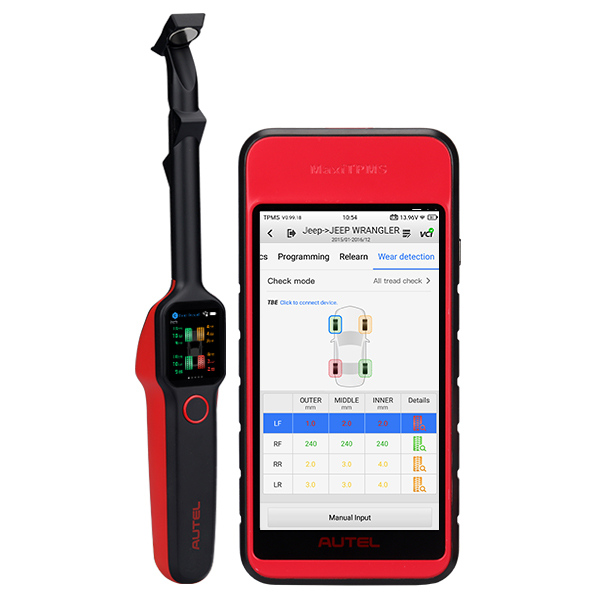

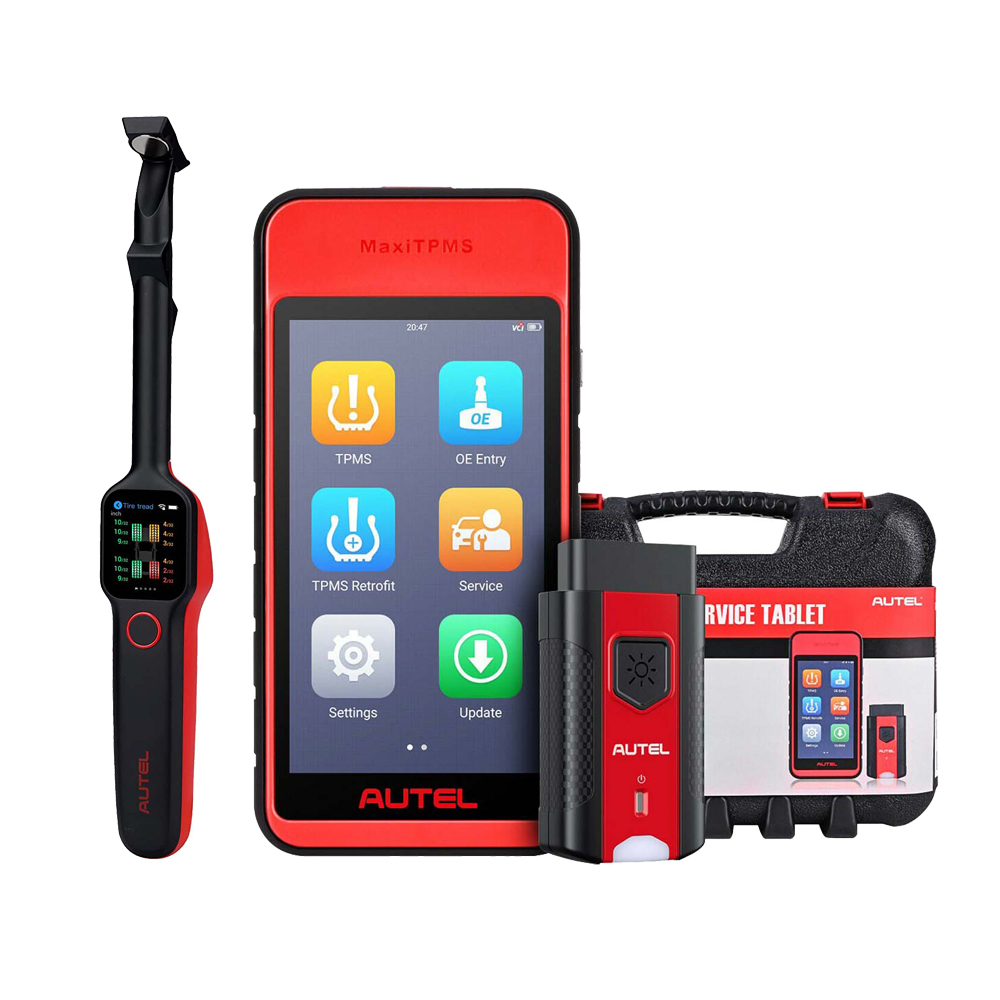

3. ENHANCING THE TBE200E WITH THE ITS600E

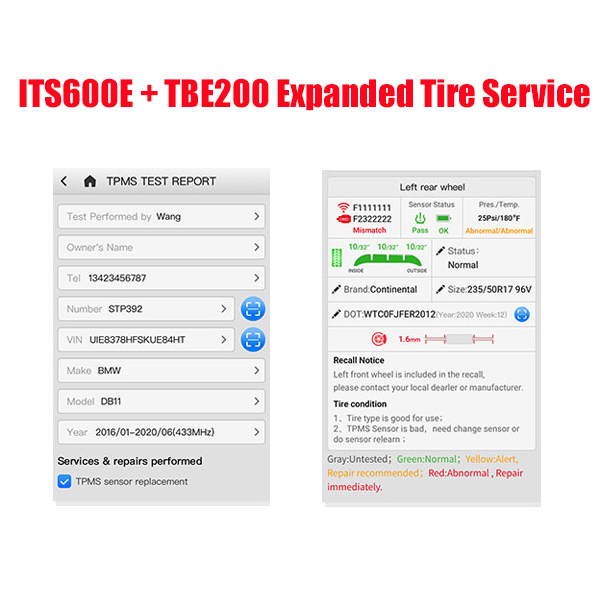

The TBE200E will offer optimal performance when paired with the ITS600E TPMS tool(sold separately). When used with the ITS600E, The TBE200E will take advantage of the ITS600E’s larger screen to collect tire tread and brake disc wear information, combine it with TPMS information from the ITS600E to produce comprehensive vehicle health reports that include detailed information for both service areas. These reports can be printed and presented or kept as records for the repairer.
Autel TBE200E TMPS tool not only supports 99% vehicle including passenger cars, off-roads and commercial vehicles, but also is compatible with almost all tire types (Goodyear, Continental, Bridgestone, Dunlop etc) on the market. TBE200E comes with one-year warranty and 100% risk-free purchases. TBE200E will be your best choice!
Description:

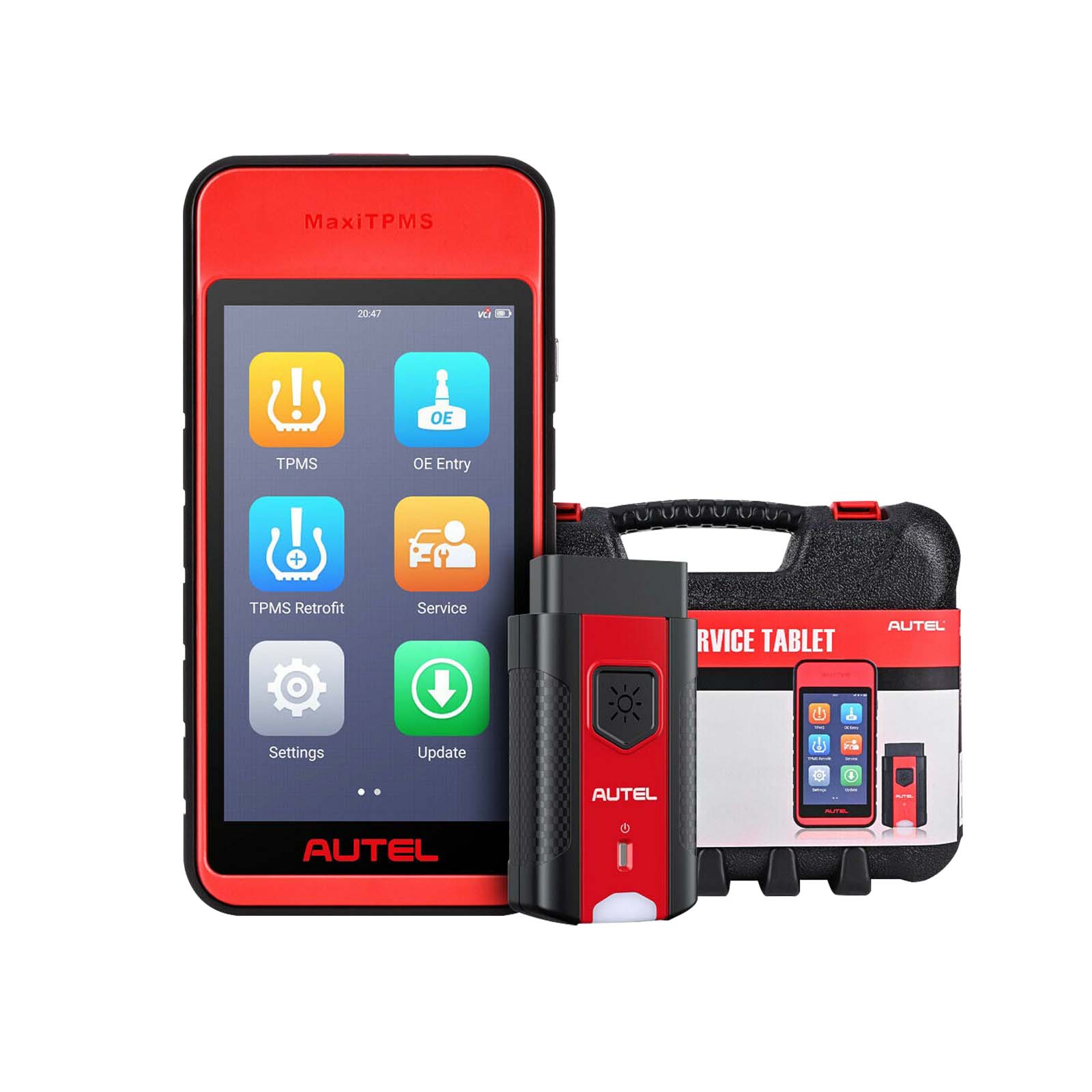

Based on Android OS, Autel MaxiTPMS ITS600E TPMS tool not only has the essential TPMS sensor programming, sensor relearning, sensor activating functions but also added user-friendly tire functions, quick vehicle identification, TPMS module retrofitting, etc. There is no doubt that Autel ITS600E is your reliable helper and professional doctor.
Additionally, it provides DOT number scan, tire expiration notice and access to recall lookup. The ITS600E is compatible with TBE200/TBE100(sold separately) tire tread & brake disc wear analysis tool. By providing an extensive series of tire-related features and functions, ITS600E is your ideal choice to complete TPMS and tire health work.
Autel ITS600E Functions:
TPMS Diagnostics: Scan TPMS ECU modules, locate vehicle problems and recover normal performance.
4 Common Used Reset Functions: Oil Reset, EPB Reset, BMS Reset, SAS Reset.
SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.
Tread Depth & Brake Disc Wear
Precise laser measurement of tread depth & brake disc wear
Autel MaxiTPMS ITS600E is the upgrade of TS408/TS501/TS508/TS601 TPMS scanners. When it comes to TPMS functions, ITS600E has the same as the TS608, but better in UI design and more details (like tire functions, vehicle scanning, reset functions).Click Autel MaxiTPMS ITS600E vs TS608 vs MK808TS vs TS508 for more details.
How to Use TBE200E?
Calibration frequency: Calibration is recommended every two months. Immediate calibration should be performed if deviations are detected or if the tool is dropped or in some manner mishandled.
Specifications:
| Recommended Use | Indoor |
| Processor | 4x ARM Cortex-A35 (1.5 GHz) |
| Memory | 1GB RAM LPDDR3 & 4GB ROM |
| Display | 1.65-inch AMOLED capacitive touch screen with 348×442resolution |
| Connectivity | Wi-Fi USB 2.0, Type C |
| Camera | CMOS WXGA, 1 megapixel & 8 megapixel, 30fps |
| Audio output | Beep |
| Battery and Power | 3.7 V/3000 mAh 18650 lithium-ion battery/Charges via 5 V AC/DC power supply |
| Tested Battery Life | Around 8 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 300 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temp | -10 to 45°C(14 to 113°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 283.0mm (11.14″) x 39.0 mm (1.54″) x 33.5 mm (1.32″) |
| Net Weight | 188 g (0.41 lb.) |
Specifications:
| Recommended Use | Indoor |
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 2GB RAM DDR4 & 64GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280×720 resolution |
| Connectivity | Wi-Fi/USB 2.0/Type C/BT |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A, Output: Beep |
| Power and Battery | Charges via 5 V AC/DC power supply 3.8 V/5000 mAh lithium-polymer battery |
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temp | -10 to 45°C(14 to 113°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 183.0 mm (7.2″) x 89.0 mm (3.5″) x 22.0 mm (0.87″) |
| Net Weight | 368 g (0.8 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
Package List:
