Description

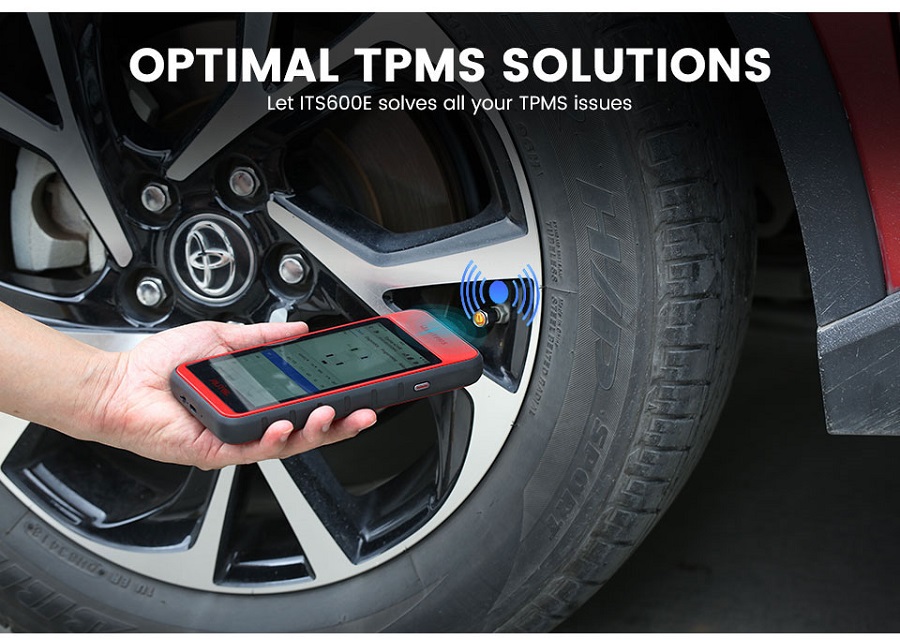

Autel MaxiTPMS ITS600E TPMS Relearn Tools TPMS Programming Tool Activate/Relearn All Sensors TPMS Diagnostics 4 Reset Functions
AUTEL ITS600E Highlights:
1. Exclusive TPMS Status Screen
2. Tire Pressure Placard Value Reset

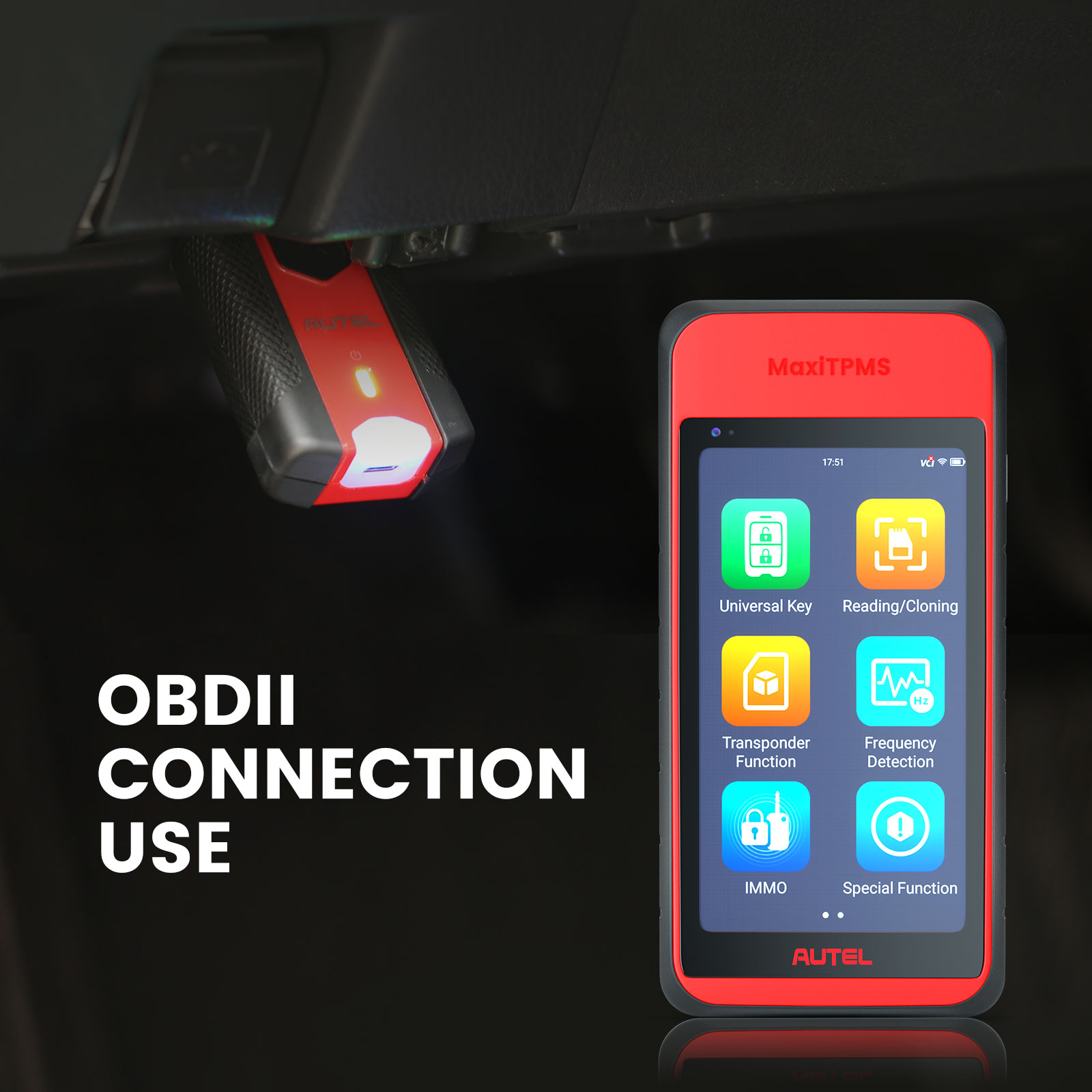

3. Wireless OBDII Connection Via Bluetooth VCI
4. Activate, Read, Relearn All Known TPMS Sensors
5. Fast OBD Ll Relearn For Most US Domestic Vehicles
6. Copy By OBD Sensor Programming For Faster Service
2. Tire Pressure Placard Value Reset
3. Wireless OBDII Connection Via Bluetooth VCI
4. Activate, Read, Relearn All Known TPMS Sensors
5. Fast OBD Ll Relearn For Most US Domestic Vehicles
6. Copy By OBD Sensor Programming For Faster Service
AUTEL ITS600E Other Features:
1. Activates, reads and relearns all known sensors
2. Enhanced, at-a-glance diagnostics status screen
3. Fast OBDII relearn for most vehicles
4. Program MX-Sensors to replace 99% of OE sensors
5. Copy By OBD sensor programming for faster service

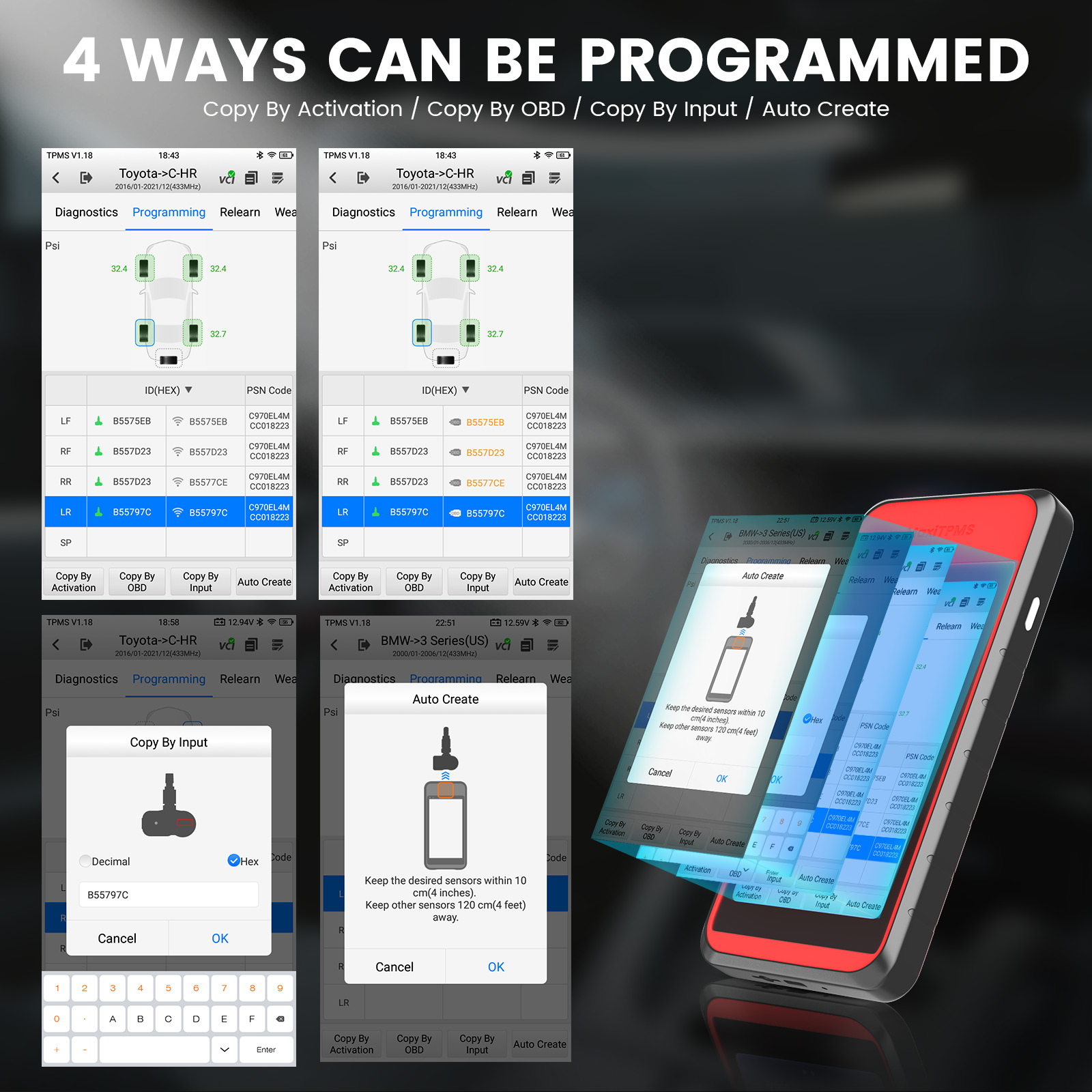

6. Four MX-Sensor program modes; batch program up to 20 MX-Sensors
7. Includes wireless Bluetooth vehicle communication interface (VCI)
8. Tire pressure placard value reset
9. Read/Clear TPMS system codes & view live data
10. Free Wi-Fi software updates forOne year, after that, click here to get one year update service.
11. Support 14 Languages: English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Russian, Italian, Japanese, Hungarian, Czech. (Please contact us if you want to change the language.)
Description:

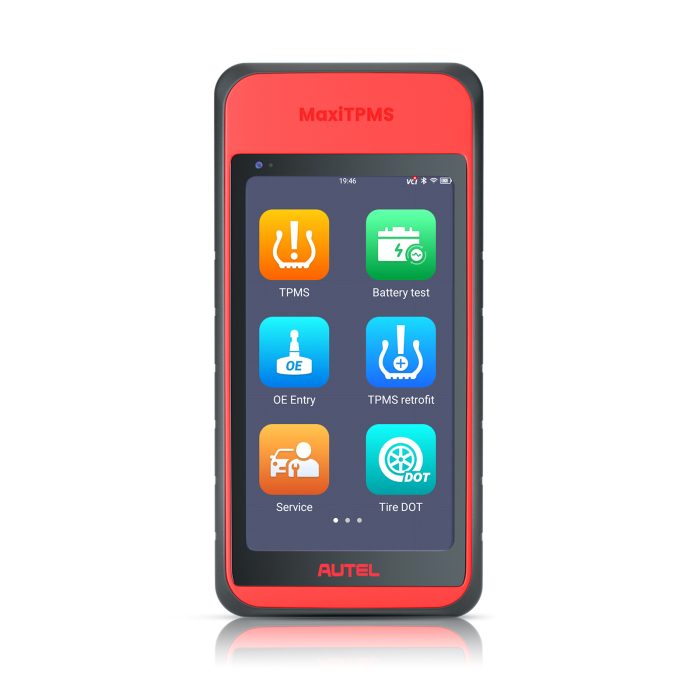

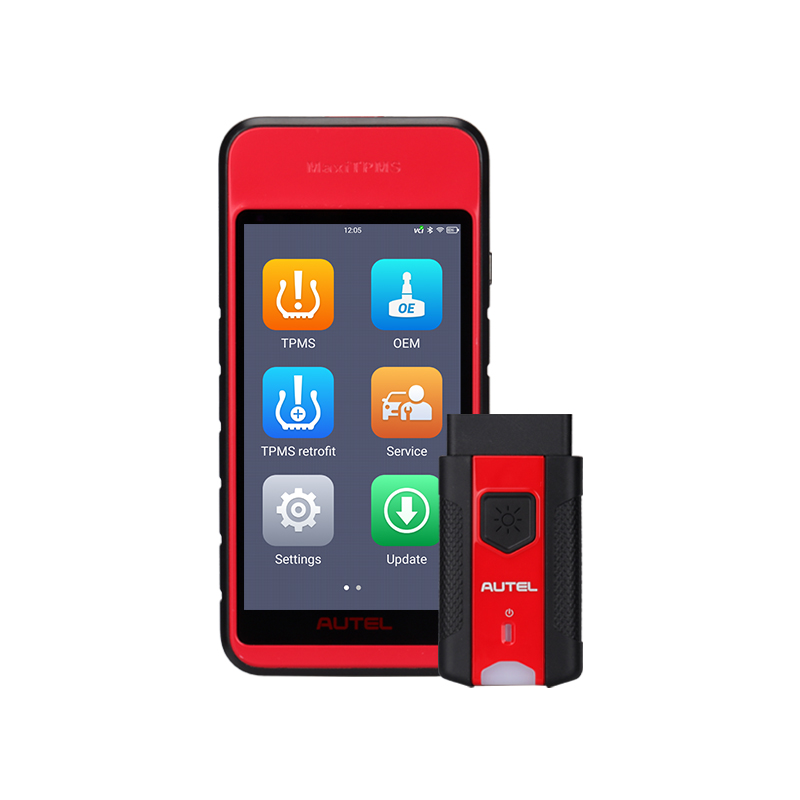

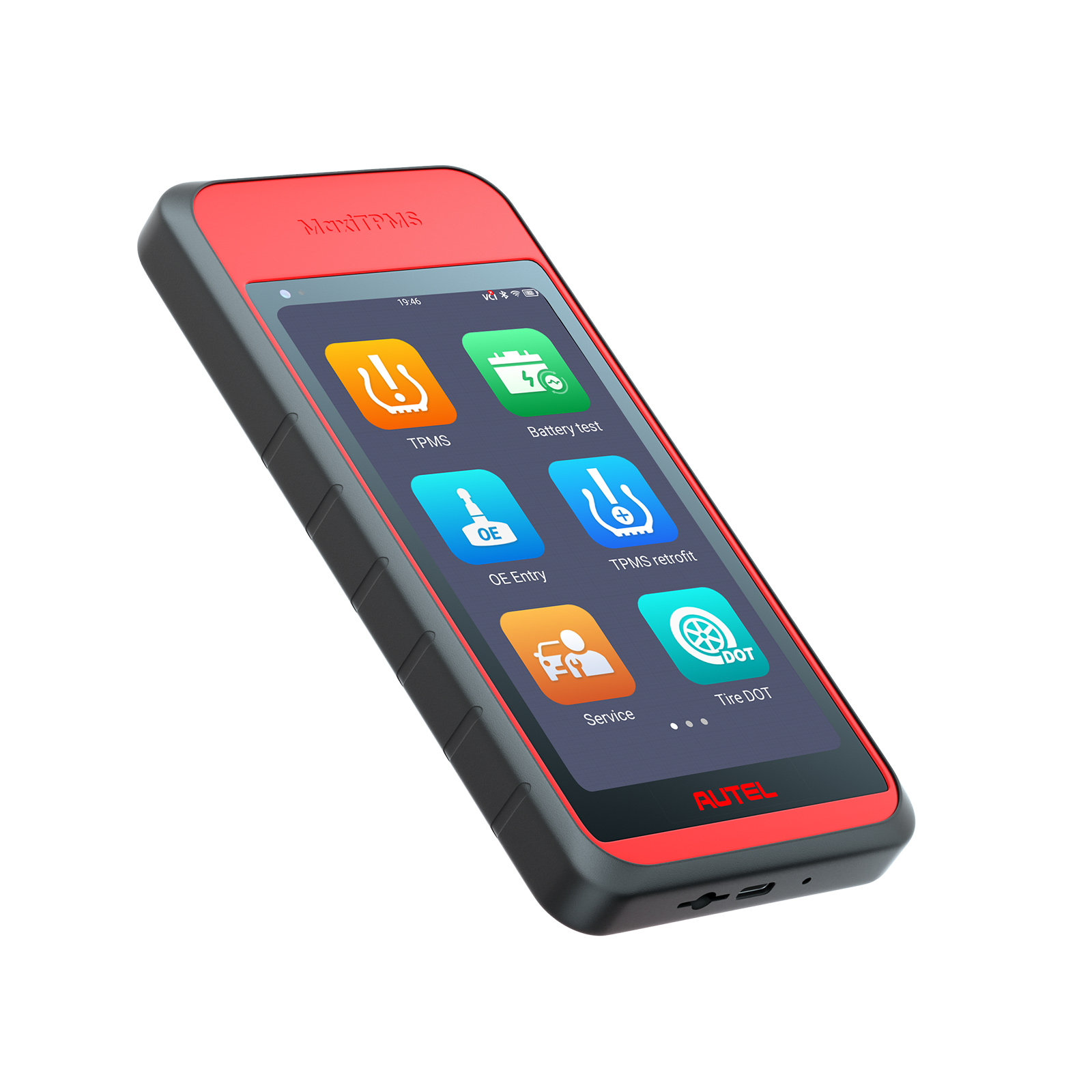

The Autel MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian, and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, and OBDII relearn functionality and on-screen relearn instructions for all vehicles.
Based on Android OS, the 2022 version Autel MaxiTPMS ITS600E TPMS tool not only has the essential TPMS sensor programming, sensor relearning, sensor activating functions but also added user-friendly tire functions, quick vehicle identification, TPMS module retrofitting, etc. There is no doubt that Autel ITS600E is your reliable helper and professional doctor.
The MaxiTPMS ITS600E is a wireless, touchscreen Android-based tablet that features a 5.5-inch color display and a Bluetooth vehicle communication interface (VCI). It is compatible with U.S, Asian and European TPMS-equipped vehicles.
Additionally, it provides DOT number scan, tire expiration notice and access to recall lookup. The ITS600E is compatible with TBE200/TBE100(sold separately) tire tread & brake disc wear analysis tool. By providing an extensive series of tire-related features and functions, ITS600E is your ideal choice to complete TPMS and tire health work.
Autel ITS600E Functions:
2 Programming Options: Copy by OBD, and Auto Create

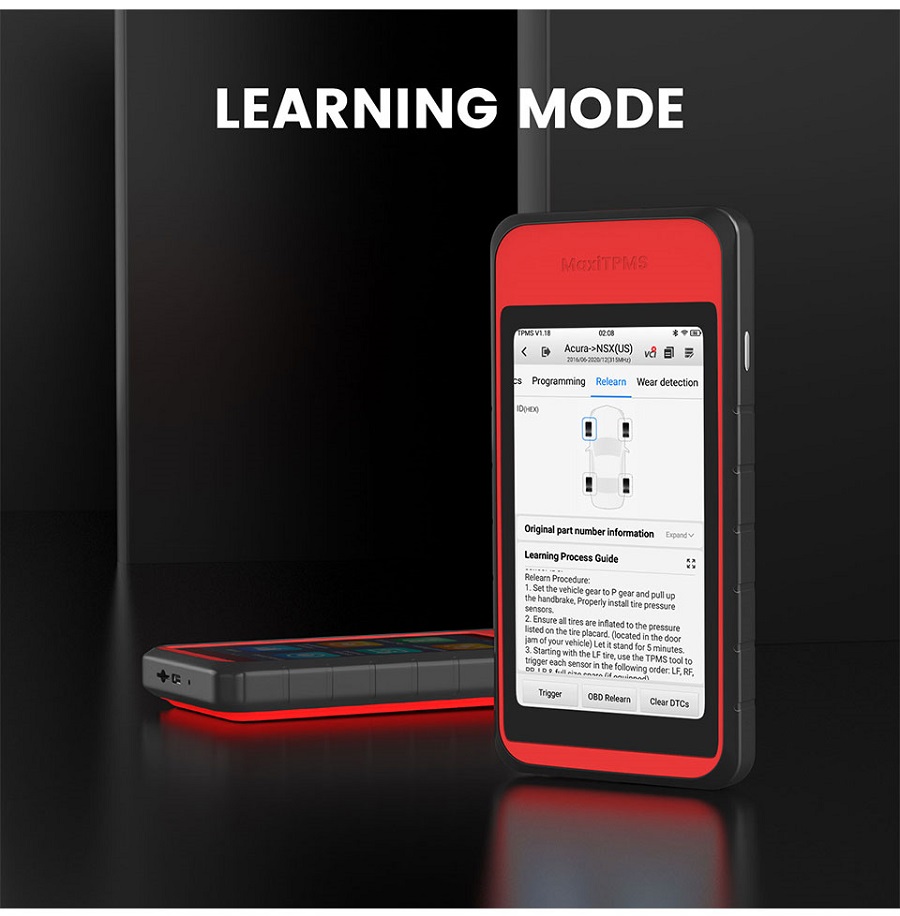

3 Relearn Methods: OBD Relearn, Automatic Relearn, and Stationary Relearn.
3 Quick Vehicle Identification Ways: Auto VIN, Scan License, VIN Scan.

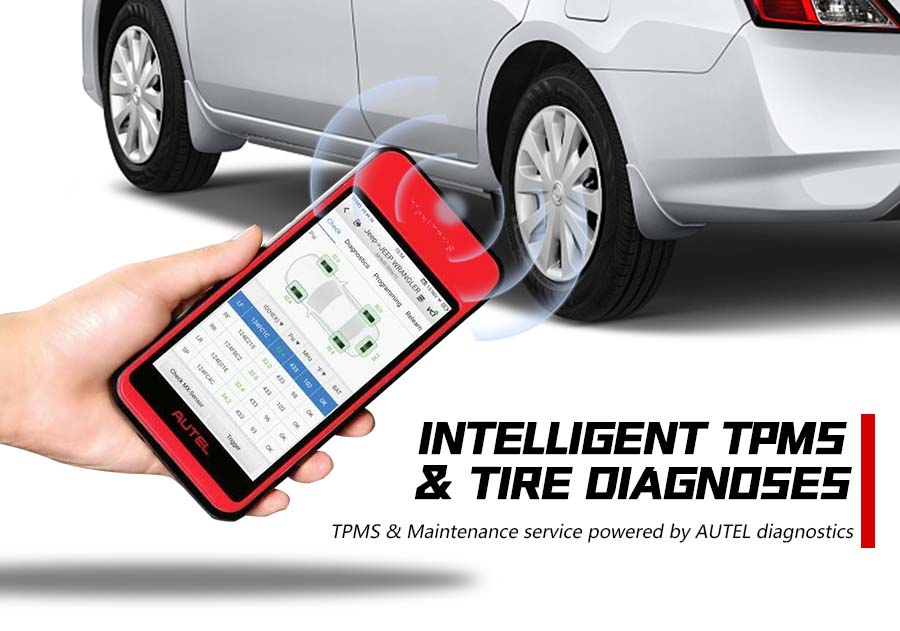

Activating: Trigger all the 315/433MHz TPMS sensors and read sensor information.
Compatible with American, Asian, and European vehicles with TPMS system.
Expanded TPMS Functions: ITS600E diagnostic scanner also provides DOT number scan, tire expiration notice, tire recall, tire tread & brake disc wear detection.(Work together with MaxiTPMS TBE200E/TBE100E).
TPMS Diagnostics: Scan TPMS ECU modules, locate vehicle problems and recover normal performance.
4 Common Used Reset Functions: Oil Reset, EPB Reset, BMS Reset, SAS Reset.
Autel ITS600E= TPMS Tool + Diagnostic Scanner
ITS600E diagnostic scanner is specially designed with 4 commonly used diagnostic functions to provide quick access to the vehicle systems for various scheduled reset and maintenance tasks. ITS600E relearn tool innovates the design of configuring the diagnostic function on the tire pressure tool and performs Oil reset, EPB, BMS, and SAS Calibration.
Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.
EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
BMS Reset: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.
SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.
Quick Vehicle Identification
ITS600E TPMS tool couples with 3 quick and convenient methods available for acquiring VIN information to finish vehicle identification:
Auto VIN Detect, Scan License, and Scan VIN. This technology greatly reduces the diagnostic time and brings convenience for users. If you cannot find the VIN or the camera cannot successfully identify the VIN/license number, you can manually select vehicle make, model, and year to complete vehicle identification.
Auto VIN Detect: Automatically acquire vehicle information and identify the application electronically through the OBDII Diagnostic Port.
Scan License: Open the camera and scan the license number to enter the identification page, easy and useful.
Scan VIN: Scan the vehicle’s VIN or Barcode/QR code directly to get information (vehicle make, model, year, etc.)
Expanded Tire Service
DOT
Quick & Easy Tire DOT Number Scan Tire Expiration Notice Tire Recall Lookup
Tread Depth & Brake Disc Wear
Precise laser measurement of tread depth & brake disc wear
Comparison:
Autel MaxiTPMS ITS600E is the upgrade of TS408/TS501/TS508/TS601 TPMS scanners. When it comes to TPMS functions, ITS600E has the same as the TS608 but is better in UI design and more details (like tire functions, vehicle scanning, and reset functions).
Click Autel MaxiTPMS ITS600E vs TS608 vs MK808TS vs TS508 for more details.
Click Autel MaxiTPMS ITS600E vs TS608 vs MK808TS vs TS508 for more details.

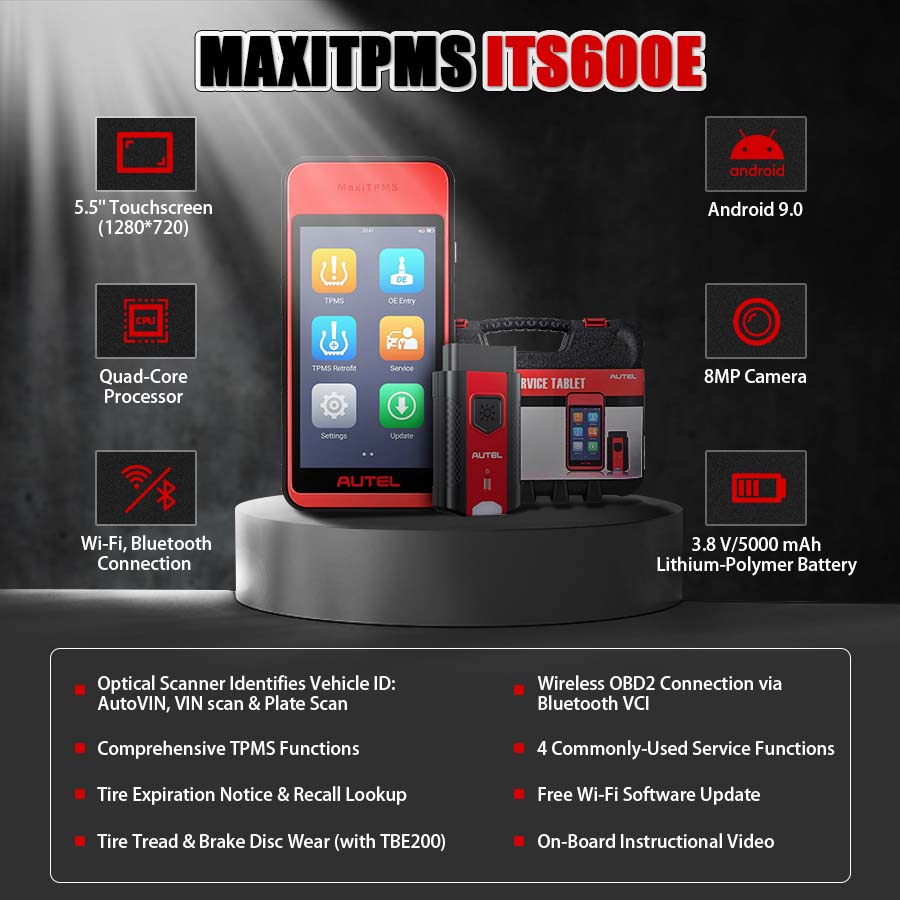

Product Specifications:
| Recommended Use | Indoor |
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 2GB RAM DDR4 & 64GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280×720 resolution |
| Connectivity | Wi-Fi/USB 2.0/Type C/BT |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A, Output: Beep |
| Power and Battery | Charges via 5 V AC/DC power supply 3.8 V/5000 mAh lithium-polymer battery |
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temp | -10 to 45°C(14 to 113°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 183.0 mm (7.2″) x 89.0 mm (3.5″) x 22.0 mm (0.87″) |
| Net Weight | 368 g (0.8 lb.) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Low-speed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |

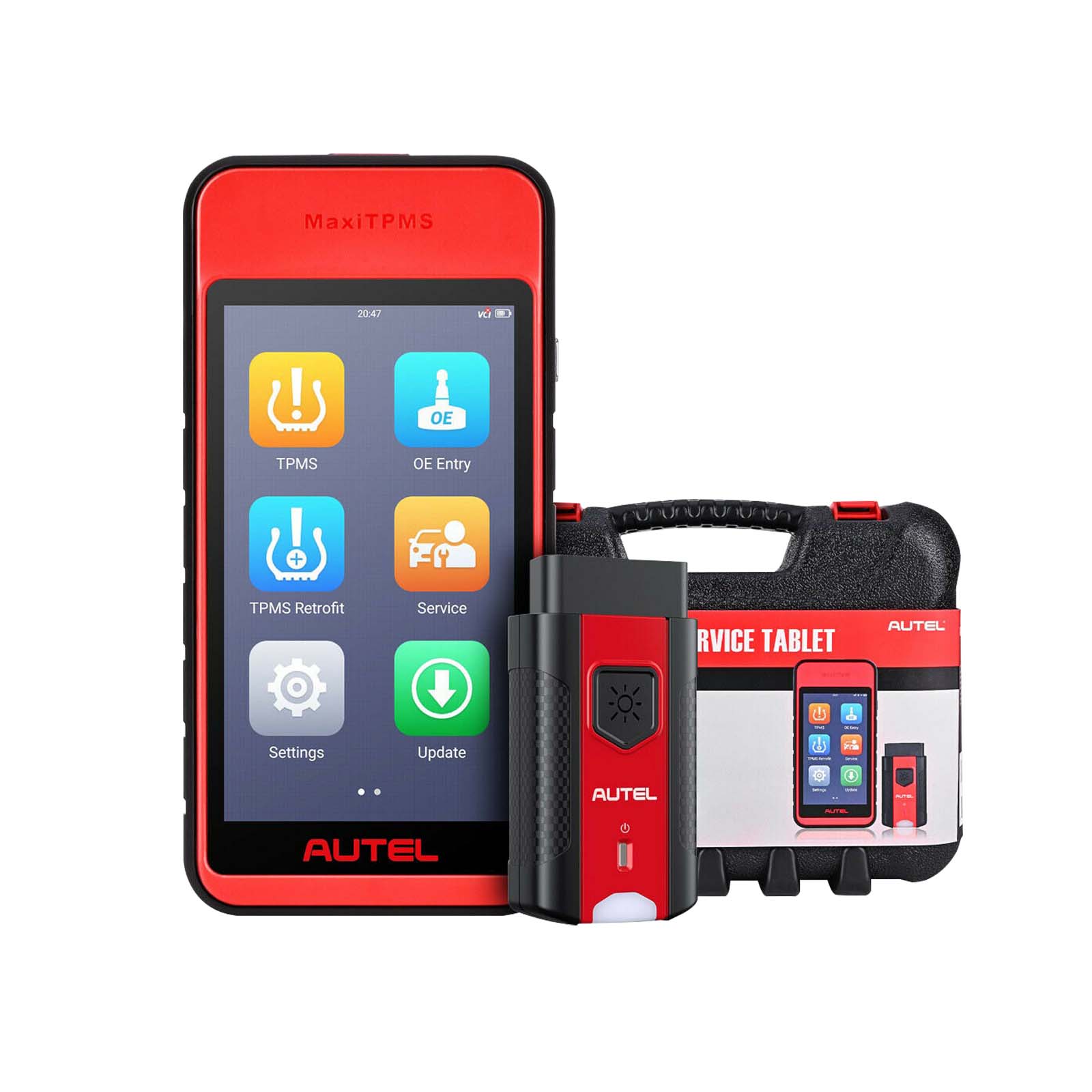

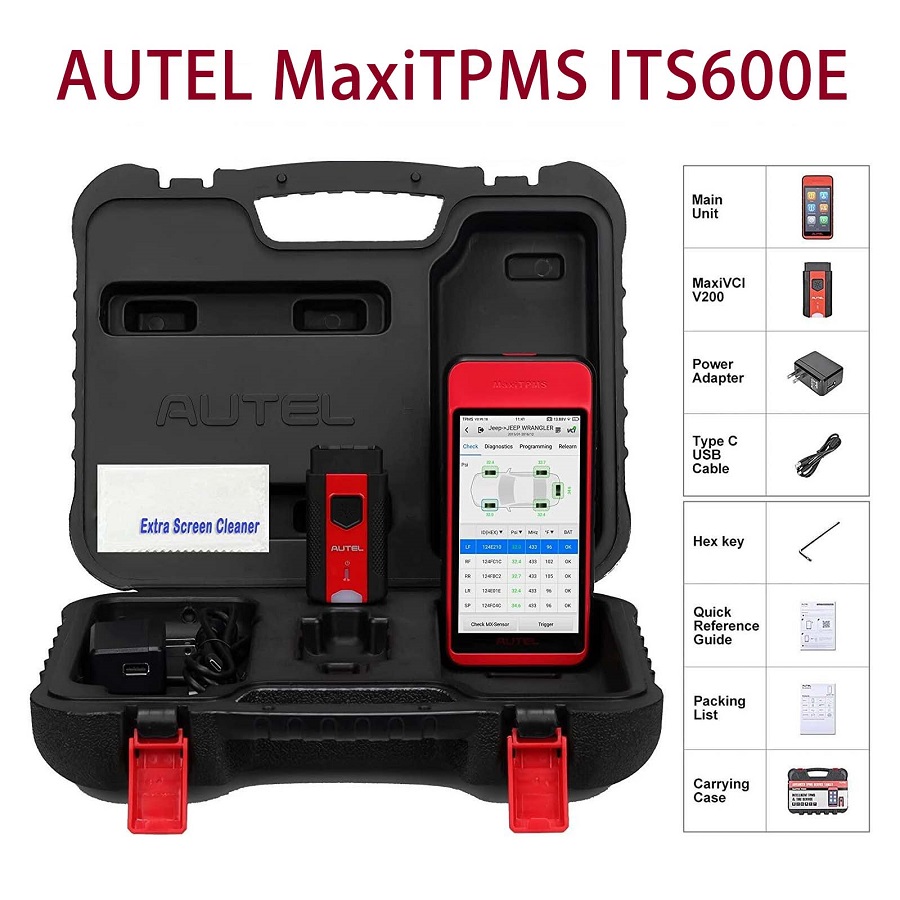

Package Includes:
1pc x Main Unit
1pc x MaxiVCI V200
1pc x Power Adapter
1pc x Type C USB Cable
1pc x Hex Key
1pc x Quick Reference Guide
1pc x Packing List
1pc x Carrying Case
