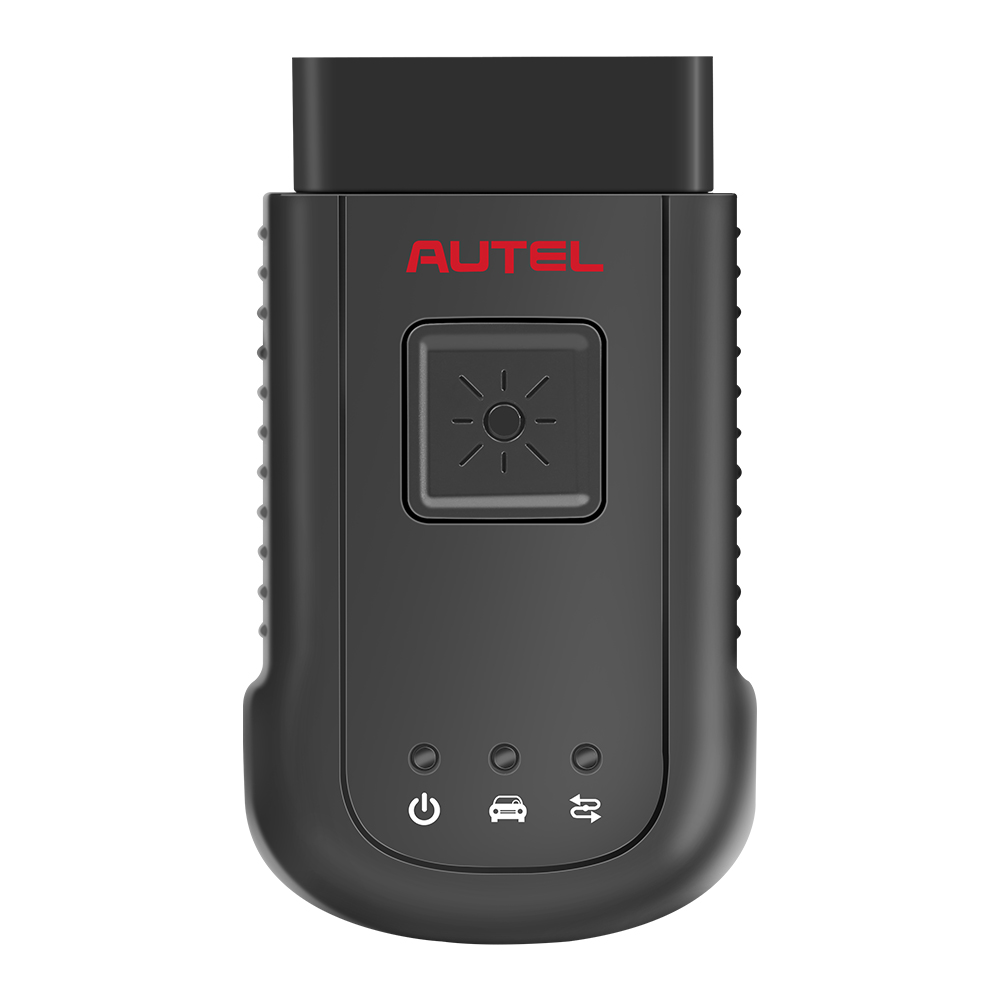

Autel MaxiSYS-VCI 100 Compact Bluetooth Vehicle Communication Interface MaxiVCI V100 for Autel Maxisys Tablet MS906BT / MK906BT

The wireless diagnostic interface MaxiVCI V100 is a small interface box used to connect to a vehicle’s diagnostic connector (DLC) and connect wirelessly with the MaxiSys Display Tablet, as well as a standalone PC, as a vehicle communication interface (VCI) for vehicle data transmission. Thanks to the wireless technology, with which you are allowed to work freely around the vehicle.

The MaxiVCI V100 can communicate with vehicles’ electronic control units (ECUs), guaranteeing performance and speed that redefine multi-brand diagnostics. The development of this interface has been focused on reducing the communication time, and ensuring the tool is practical to use.

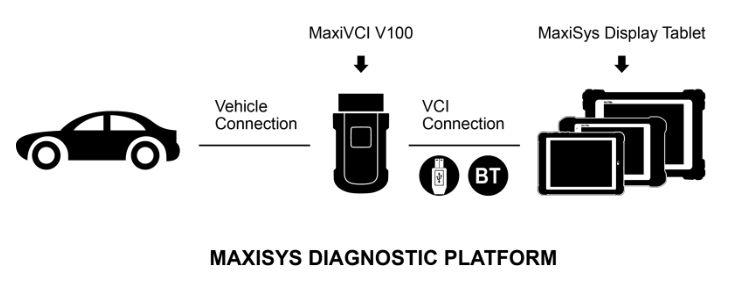

The MaxiSys diagnostic platform combines the MaxiVCI V100 and the display tablet with technical information into a single program, ensuring quick and simple access to the vehicle to perform comprehensive diagnostics applications.

The MaxiSys diagnostic platform combines the MaxiVCI V100 and the display tablet with technical information into a single program, ensuring quick and simple access to the vehicle to perform comprehensive diagnostics applications.

1. Undateable software via the Internet
2. Ultra-fast OBDII-port communication within 75 feet
3. Supports comprehensive diagnosis and reading of control modules
4. Wirelessly connects vehicle ECU to MaxiSYS tablets supporting Bluetooth
5. Features convenient wireless Bluetooth technology enabling tech to perform diagnostics outside of a vehicle.

The MaxiVCI V100 device package includes the unit, user manual, and a CD with driver program and update agent.

If you are concerned about the operation of your vehicle at any time while using the MaxiVCI V100

1. Pull off the roadway immediately or as soon as it is safe to do so.
2. Disconnect the device from the OBDII port.
3. Consult a licensed mechanic or automobile service center.

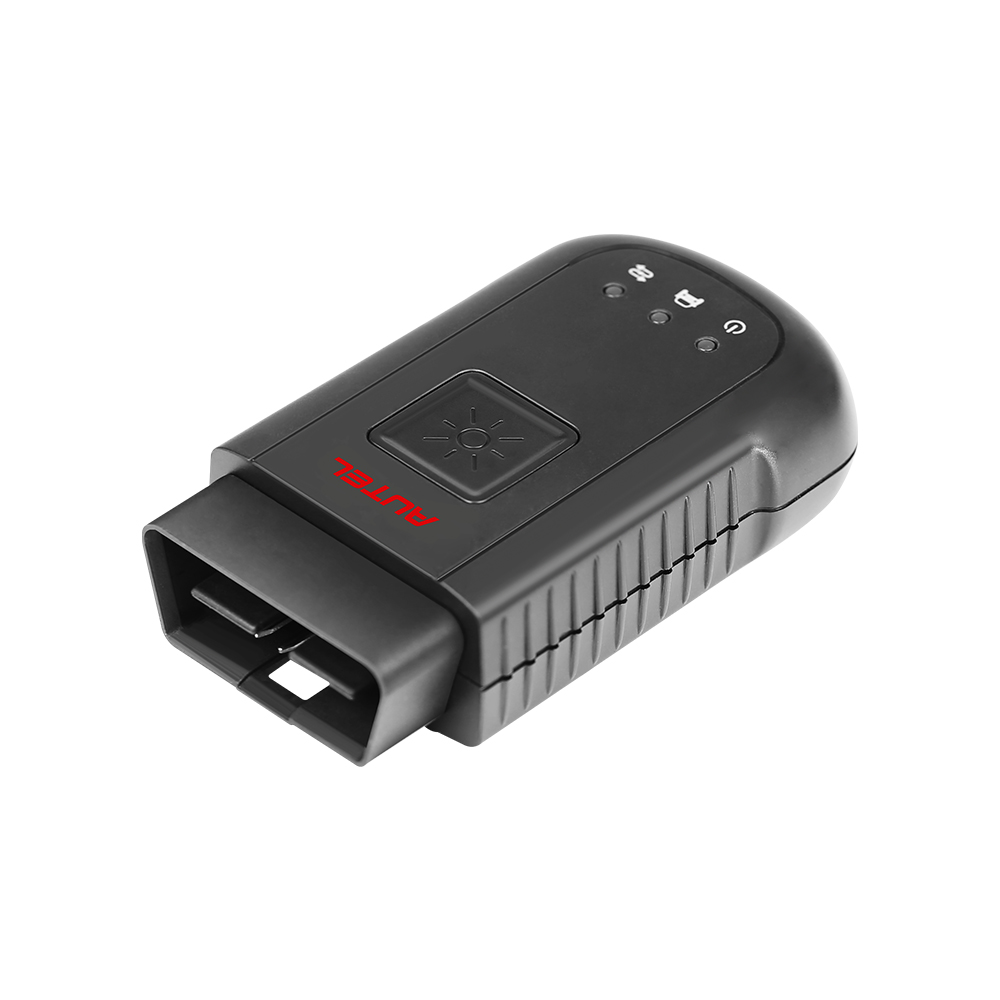

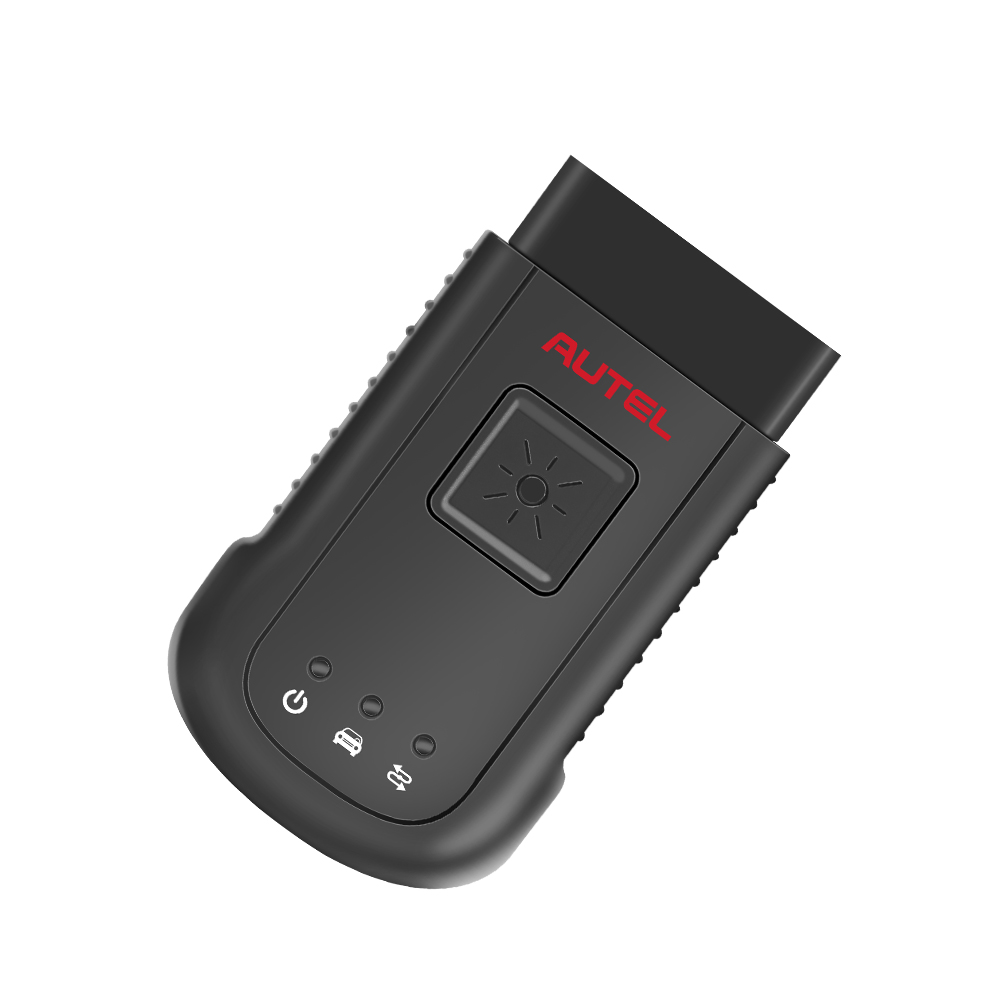

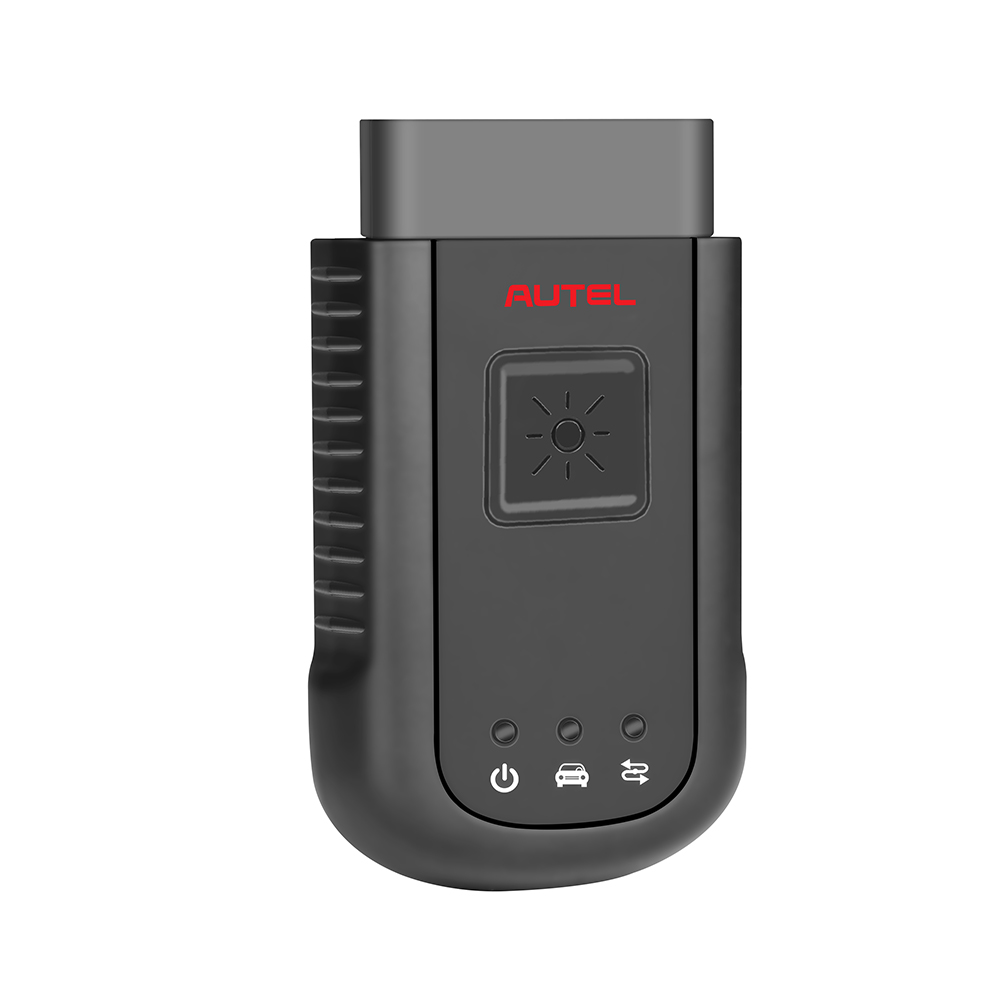

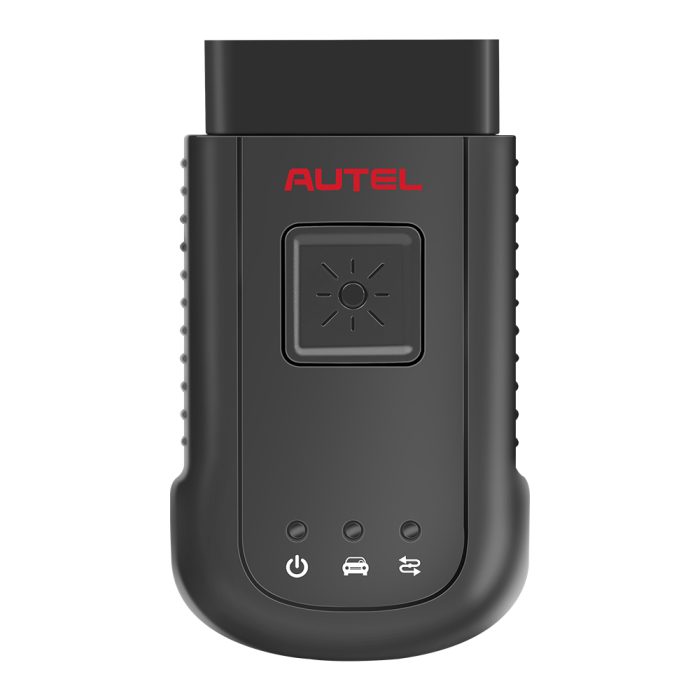

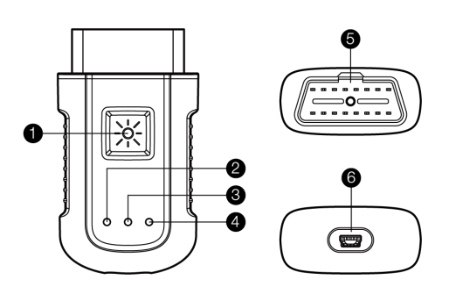

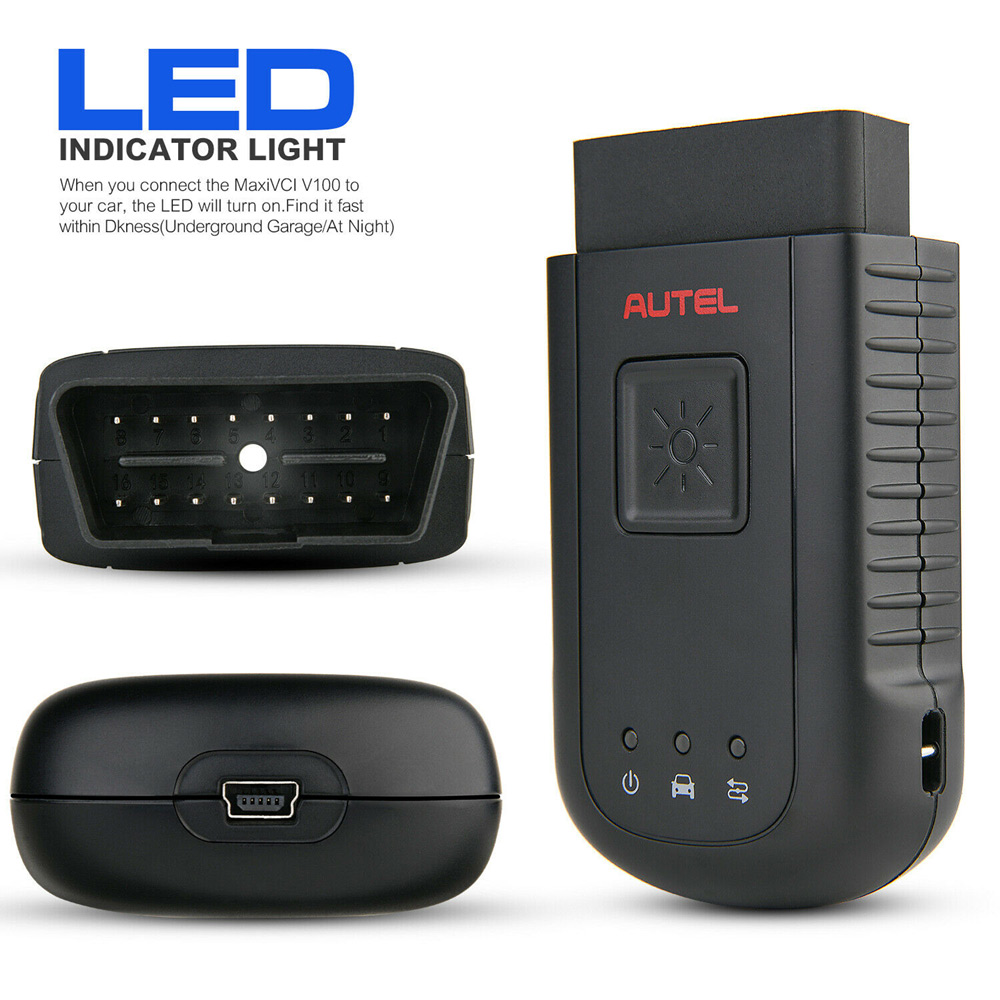

1. Lighting Push Button

2. PowerLED

3. VehicleLED

4. Connection LED

5. Vehicle Data Connector (16-Pin)

6. USB Port

Notice:

The new, ultra-compact MaxiSYS-VCI100 features the latest advances in wireless Bluetooth connectivity. It has been carefully designed and tested to comply with OBDII protocols. However, some vehicle models are not in full compliance with these protocols for various reasons. In addition, the computer control systems or sensors on any given vehicle may be malfunctioning.

While Autel’s testing and the experiences of the users have shown the unit to be safe and reliable, there is an inherent risk in using any product that may potentially affect the operation or drive-ability of your vehicle.?

If you are concerned about the operation of your vehicle at any time while using the MaxiVCI V100 1. Pull off the roadway immediately or as soon as it is safe to do so. 2. Disconnect the device from the OBDII port. 3. Consult a licensed mechanic or automobile service center.

Specifications:

Item	Description
Communications	BT V.2.1 + EDR USB 2.0
Wireless Frequency	2.4 GHz
Input Voltage Range	12 VDC
Supply Current	150 mA @ 12 VDC
Operating Temperature	0°C to 50°C (ambient)
Storage Temperature	-20°C to 70°C (ambient)
Built-in Battery	3.7V Lithium Battery
Light	White LED

1pc x Autel MaxiSYS VCI100
