Description
2025 AUTEL MaxiSYS Ultra EV Advanced EV Diagnostics with MaxiFlash VCMI
Highlights:
1. One Year Update Online, after one year, Autel Ultra EV One Year Software Update charges 899 USD/ Year.
2. Advanced Diagnostics: Comprehensive coverage for U.S., European, and Asian electric, hybrid, gas, and diesel vehicles.
2. Advanced Diagnostics: Comprehensive coverage for U.S., European, and Asian electric, hybrid, gas, and diesel vehicles.
3. High-Voltage System Analysis: Rapidly diagnose high-voltage systems with the ability to read and erase codes, view live data, and access detailed system diagrams.
4. Battery Pack Diagnostics: Perform SOC and SOH analysis via OBD or directly with included specialty cables and jumpers. The Ultra EV provides in-depth connection guidance for safe and secure testing.
5. Interactive Data Logging: Directly connect with AUTEL support for real-time troubleshooting of diagnostic issues.
6. Workshop Management: Efficiently manage workshop operations and keep all data files, customer info, and vehicle records well organized.
7. Topology Mapping: Visualize the entire system with color-coded topology maps for supported vehicles.
8. Oscilloscope Functionality: The VCMI 5-in-1 device includes a multimeter, waveform generator, and CAN Bus tester for advanced diagnostics.
9. Cloud-based Data Storage: Saves customer and vehicle records, scanner data and technician notes.
Description:

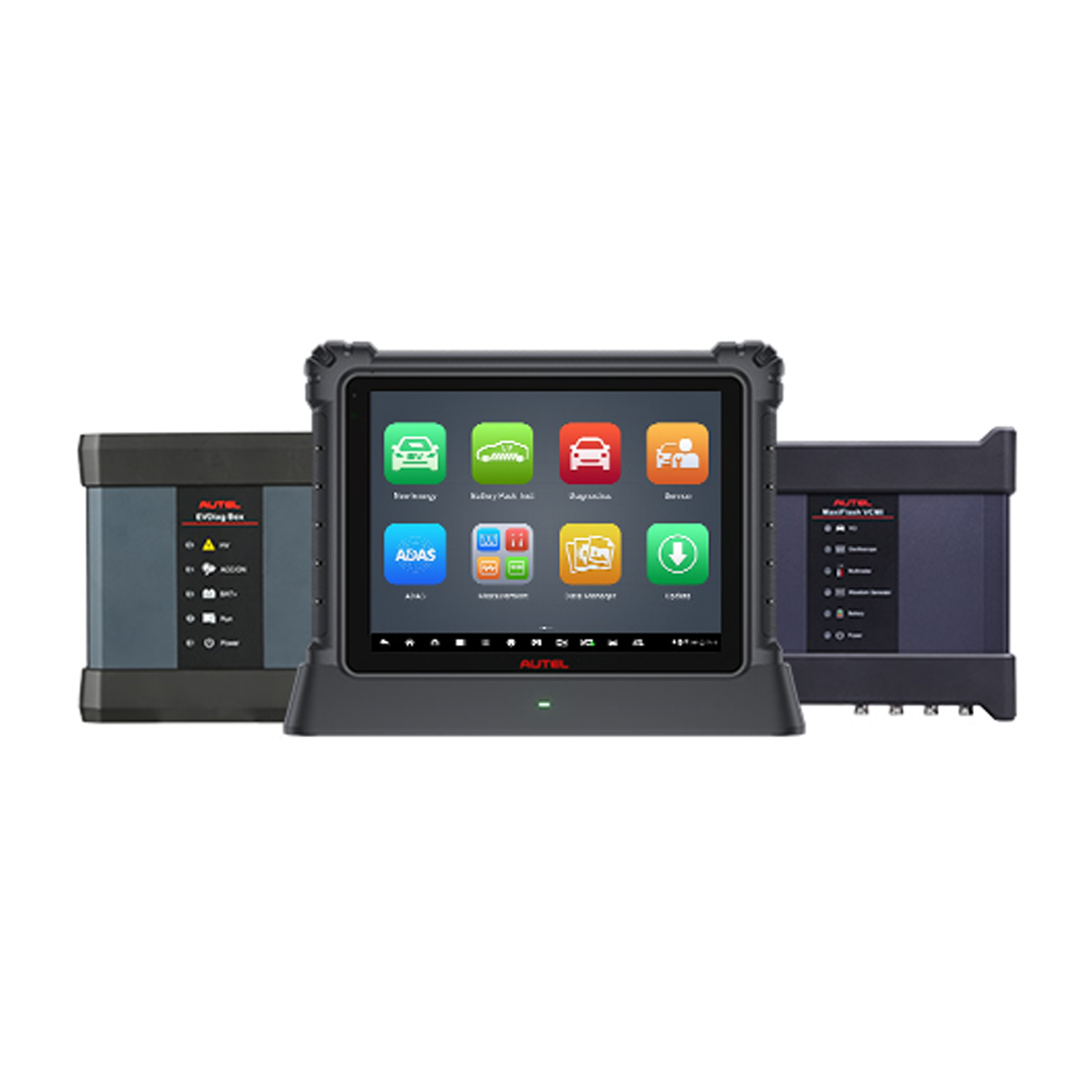

The 2025 AUTEL MaxiSYS Ultra EV is the next-generation diagnostic tool designed for electric, hybrid, gas, and diesel vehicles. With its 12.9-inch touchscreen tablet and MaxiFlash VCMI (5-in-1) measurement device, the Ultra EV offers unparalleled diagnostic capabilities for high-voltage systems, battery packs, and more. Whether you’re performing State of Charge (SOC) and State of Health (SOH) analysis or diagnosing complex electrical systems, the Ultra EV provides detailed graphics and step-by-step guidance to ensure safe and accurate testing. Equipped with a Bluetooth-enabled vehicle communication interface, J2534 pass-thru programming, and a dedicated EVDiag box, the Ultra EV is the ultimate tool for modern automotive diagnostics.
Product Comparison Between MS909EV and Ultra EV:
| Model | MS909EV | Ultra EV |
| Connection | Bluetooth MaxiFlash VCI | Bluetooth MaxiFlash VCMI |
| Screen | 9.7inch touchscreen | 12.9inch touchscreen |
| Battery | 15,000mAh | 18,000mAh |
| Processor | 2.2GHz+1.8GHz octa-core | 2.2GHz+1.8GHz octa-core |
| Memory | 128GB SSD/ 4GB RAM | 256GB SSD/ 4GB RAM |
| Camera | 16MP rear/16MP front | 16MP rear/5MP front |
| Docking Station | × | Included |
| EVDiag Box | Included | Included |
| Operating System | Android 10.0 | Android 7.0 |
| Automatic Detection | Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
| Secure Gateway Access | Authorized FCA Access With AutoAuth account |
Authorized FCA Access With AutoAuth account |
| License Plate Reader | Available on select vehicles | Available on select vehicles |
| Vehicle Coverage | U.S., European and Asian electric, gas and diesel, and hybrid vehicles | U.S., European and Asian electric, gas and diesel, and hybrid vehicles |
| OBDII Test Modes | All 10 test modes | All 10 test modes |
| Service Resets | 36 service features | 36 service features |
| Diesel PM | Reset diesel emissions Light&medium duty vehicles |
Reset diesel emissions Light&medium duty vehicles |
| System Diagnostics | Access all modules in all systems | Access all modules in all systems |
| High-voltage System Diagnostics | Diagrams of high-voltage system block | Diagrams of high-voltage system block |
| Battery Pack Diagnostics | SOC and SOH analysis | SOC and SOH analysis |
| Component Activations | Bi-directional control | Bi-directional control |
| Enhanced Functions | Coding&adaptations | Coding&adaptations |
| ADAS Calibration | ADAS Upgrade & Frame Kit Purchase required |
ADAS Upgrade & Frame Kit Purchase required |
| Cloud Services | Remote programming & Report storage | Remote programming & Report storage |
| Topology Module Mapping | Color coded all system status screen on supported vehicles | Color coded all system status screen on supported vehicles |
| Oscilloscope | × | VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester |
Specifications:
Operating System: Android 7.0
Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM & 256GB On-board Memory
Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity: WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (Two USB HOST Type A, one USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
Camera: Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Power and Battery: 18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Package includes:
1pc x Ultra main unit
1pc x MaxiFlash VCMI
1pc x docking station
1pc x main cable V2.0
1pc x USB 2.0 cable V2
1pc x AC/DC adapter(12V)
1pc x auxiliary power outlet adapter
2pcs x light fuses 6x30mm
1pc x clamp cable
4pcs x scope test lead
2pcs x multimeter test lead
2pcs x secondary ignition pickup
2pcs x attenuator 20:1
4 x 6pcs breakout leads
1 x 2pcs multimeter probe
2 x 2pcs flexible back-pinning probe
1 x 5pcs back-pinning probe red/green/blue/yellow/black
2pcs x back-pinning probe screw
20pcs x back-pinning probe replacement needle
2 x 2pcs small crocodile clip
1 x 2pcs large dolphin clip
1pc x quick reference guide
1pc x packing list
1pc x soft cloth
1pc x tool box
1pc x USB to Ethernet adapter
1pc x carrying case 687x170x470mm
EV Diagnostics Upgrade Kit
1pc x EVDiag box
6pcs x breakout lead 1
6pcs x breakout lead 2
6pcs x breakout lead 3
6pcs x breakout lead 4
1pc x EVDiag box main cable BPTC0001/01
3pcs x breakout lead extension cord
4pcs x dual banana plug
1pc x adapter BPTC0101/01
1pc x adapter BPTC0102/01
1pc x adapter BPTC0103/01
1pc x adapter BPTC0201/01
1pc x adapter BPTC0202/01
1pc x adapter BPTC0203/01
1pc x adapter BPTC0204/01
1pc x adapter BPTC0205/01
1pc x adapter BPTC1101/01
1pc x adapter BPTC1102/01
1pc x DB25 snake cable BPTJ0001/01
1pc x packing list
1pc x carrying case
