Description
2025 Autel MaxiPRO MP808TS MP808Z-TS MP808S-TS WiFi/ Bluetooth Diagnostic Tool for Complete TPMS Service and Diagnostic Functions
Highlights:
1. Two Years Free Update Online. After two years, MP808Z-TS one year update service Charges 449 USD / Year.
2. Auto VIN & Cloud Report Management & Remote Desk
3. 40+ Special Features
4. AutoAuth Access: Now MP808Z-TS also has full access to protected FCA vehicles!
5. Advanced ECU Coding
* Unlock Hidden Functions: works on BMW, Audi, VW, Skoda etc.
* Online Coding: works on BMW, Porsche, VW etc.
* VAG Guided Functions: works on Audi, VW, Skoda, Seat, Man LD etc.
6. Complete TPMS Functions: The diagnostic tool is capable of activating/reading 98% of known TPMS sensors, reading and clearing TPMS codes, displaying manufacturer-specific TPMS Relearn procedures for all vehicles, performing OBDII Relearns and programming Autel MX-Sensors to replace OE sensors. ► MP808Z-TS + 4*Sensors
7. Multi-Language: English, German, Spanish, Portuguese, Dutch, French, Italian, Korean, Russian, Polish, and Swedish for optional. after you make an order, please contact with seller about the language. Autel Pre-selected Language Operation Guide
Extended Functions (Need to buy them additionally):
a. Compatible with MaxiBAS BT506 to perform battery analysis.
b. Compatible with MaxiVideo MV108S Inspection Camera: Connect with MV108S borescope to enable up-close visual inspections in confined areas, such as engine cylinders.
Description:

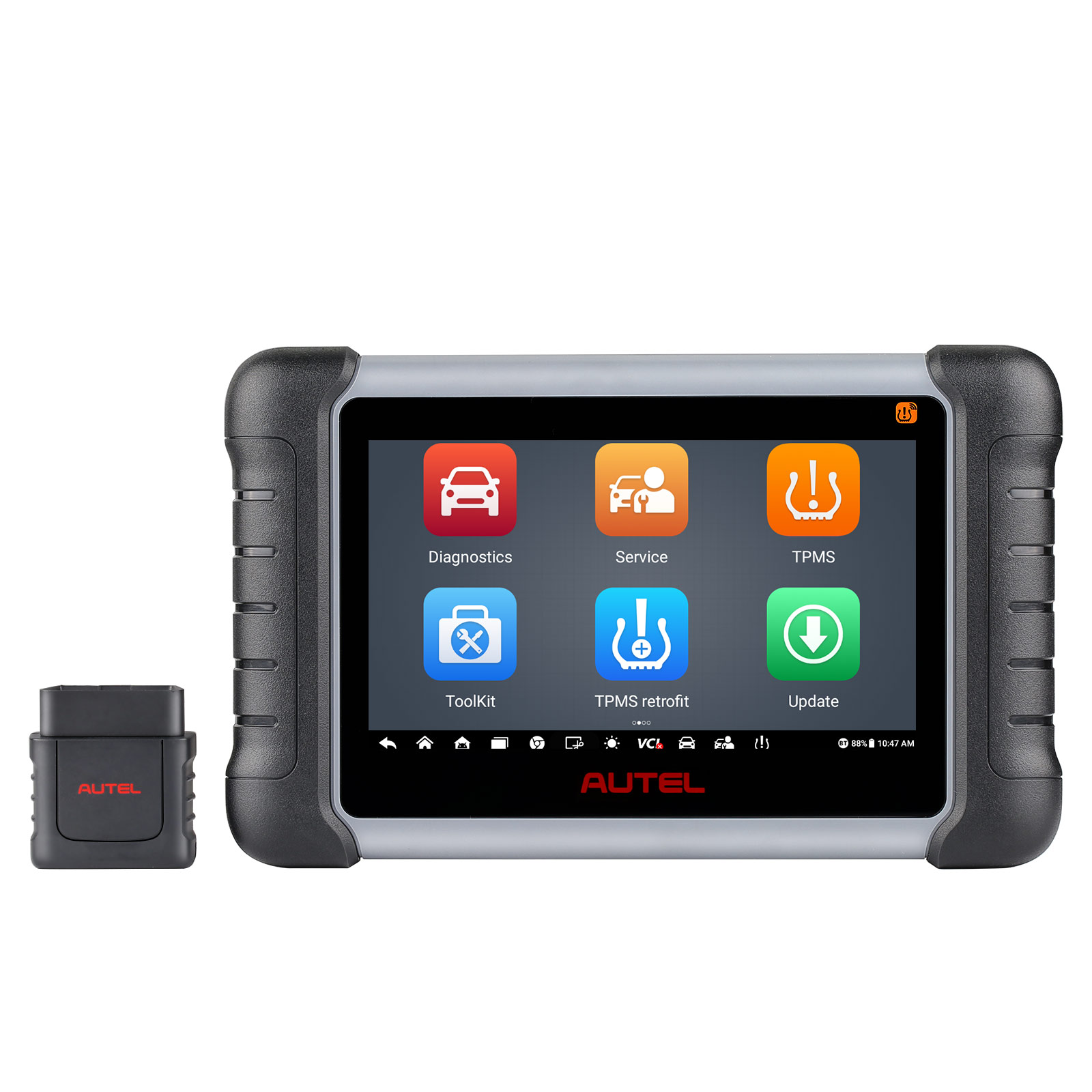

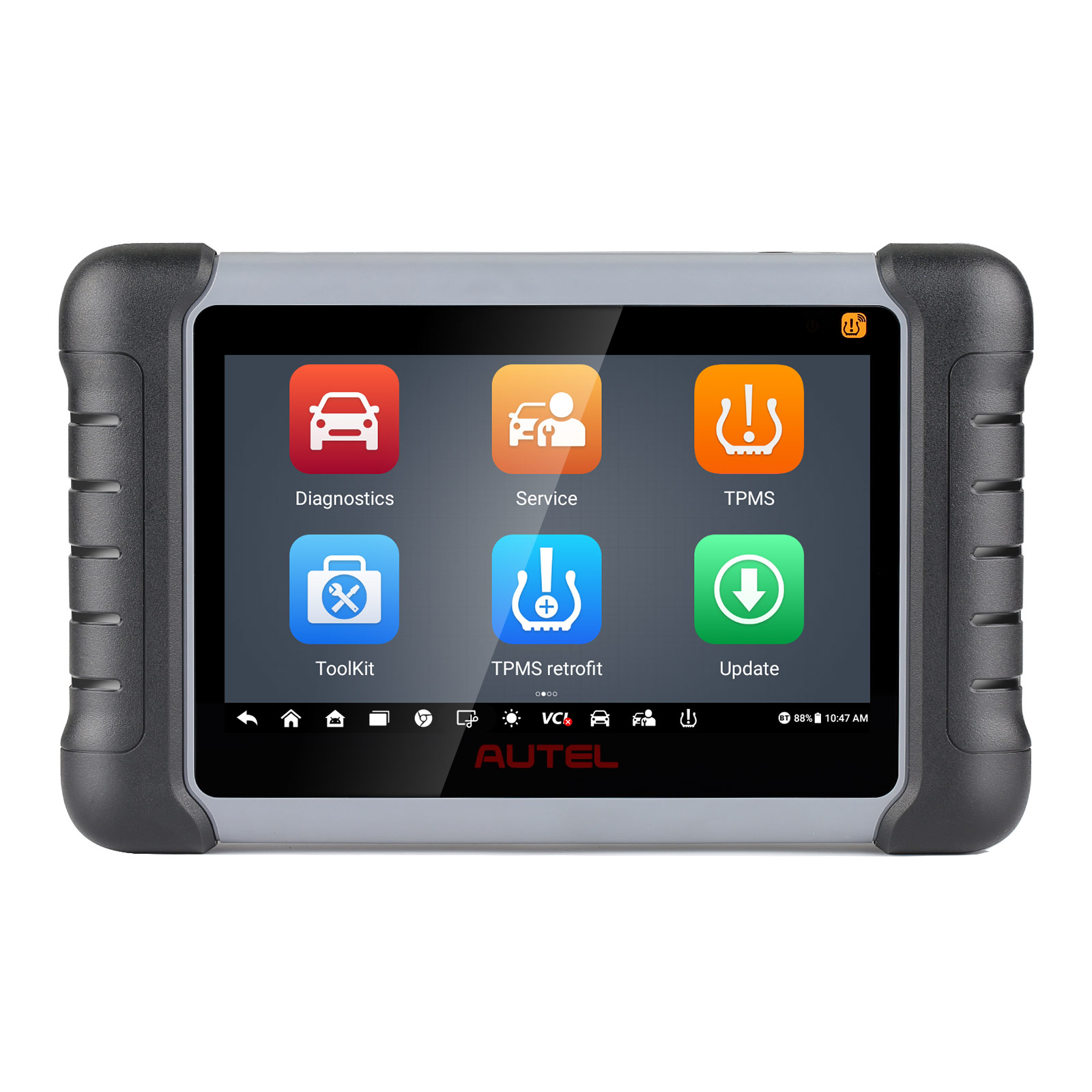

OE-Level All System Diagnostics: The Autel MP808Z-TS performs a wide range of OE-level diagnostics for all electronic systems. Besides all the functions of the MK808 / MK808TS, you can use this Autel scanner to carry out advanced Bi-directional Control and the Guided Functions of VW and Benz. It is a combination of advanced diagnostics and complete TPMS functions.
Autel MaxiPRO MP808S vs MaxiPRO MP808BT PRO vs MaxiPRO MP808S-TS & MP808Z-TS, click here.
Programs Autel MX-Sensor with 2 options to replace OEM sensors:
a. Auto Create – Create a random ID to program MX-Sensor
b. Copy by OBD – Program the sensor ID retrieved from TPMS ECU
MaxiPRO MP808Z-TS MP808S-TS Specifications:
| Situation Recommended | Indoor |
| Operating System | Android 11 |
| Processor | Rockchip RK3566 |
| Memory | RAM 4G+ROM 64G |
| Display | 7-inch LCD capacitive touchscreen with 1024×600 resolution |
| Connectivity | Mini USB 2.0 USB 2.0 |
| Wi-Fi (2.4 & 5GHz) | |
| HDMI Type A | |
| Micro SD card slot (supports up to 64GB) | |
| Sensors | Light sensor for automatic brightness adjustment |
| Audio input/output | Input: N/A |
| Output: Beep | |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery |
| Charges via 5 VDC power supply | |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 55°C(32 to 131°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Dimensions (W x H x D) | 270.8 mm (10.0″) x 176.0 mm (6.9″) x 36.0 mm (1.4″) |
| Net Weight | 885 g (2.31 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

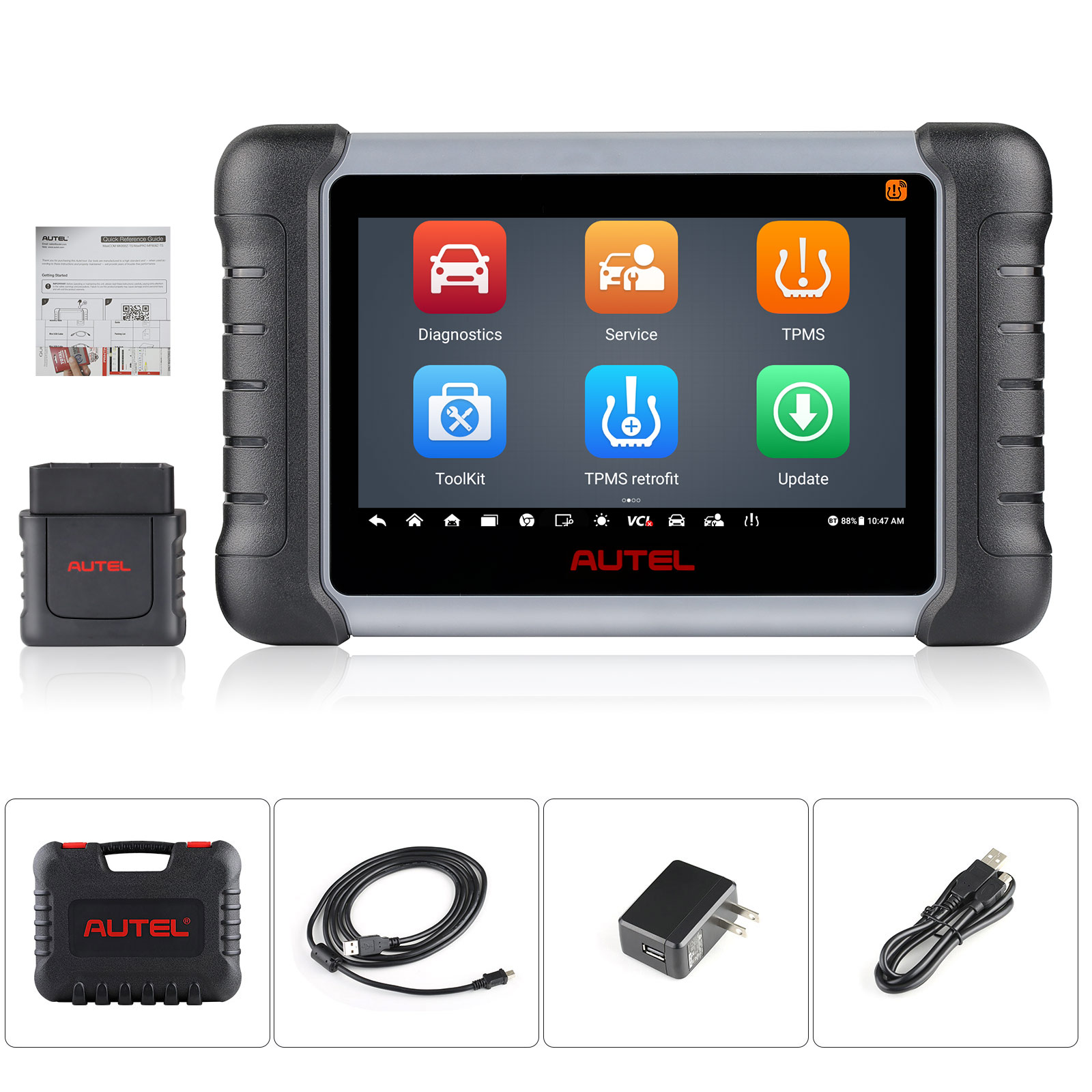

Package List:

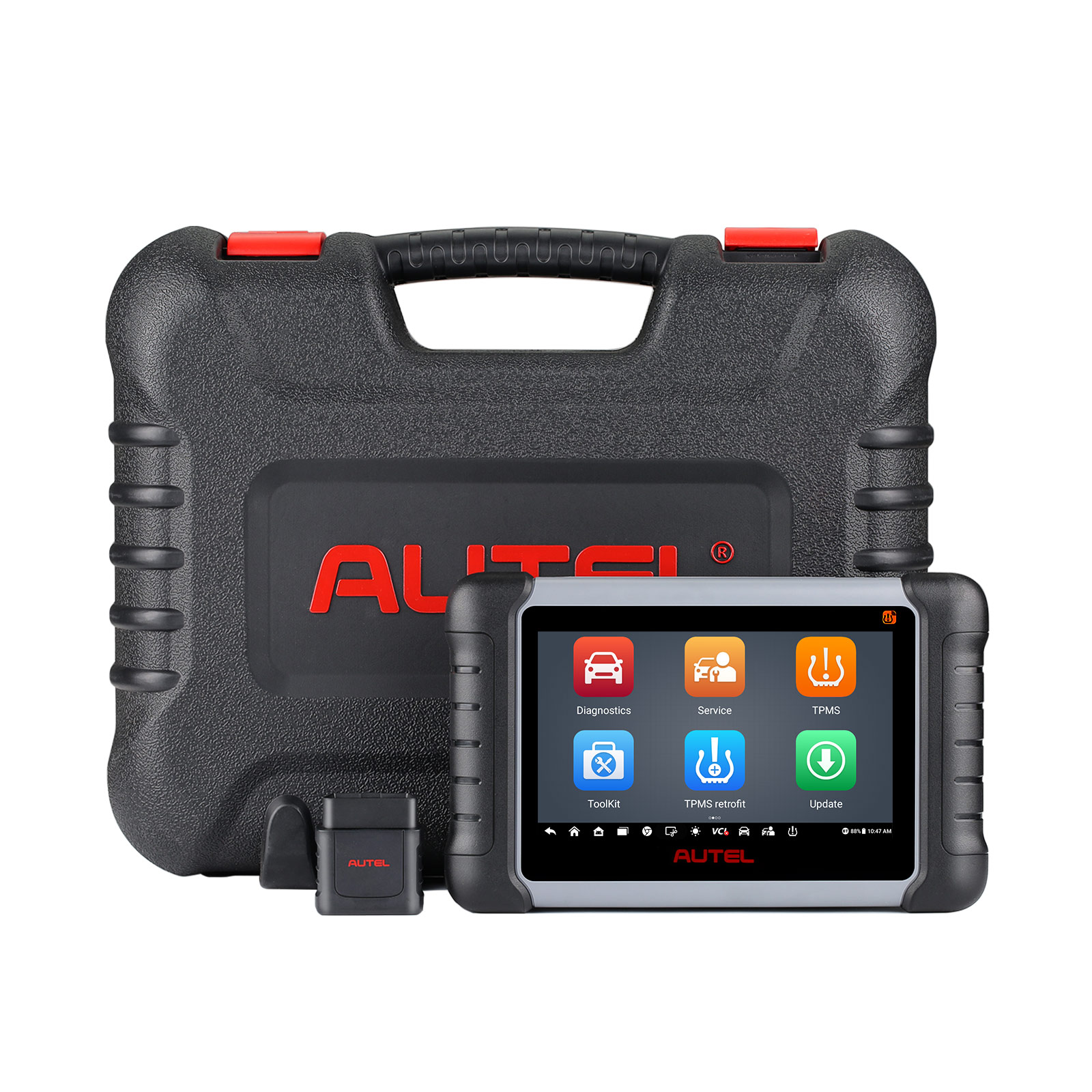

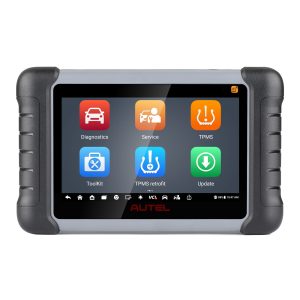

1pc x MaxiPRO MP808Z-TS MP808S-TS Main Unit
1pc x USB Cable (for charging)
1pc x USB Cable (for test)
1pc x MaxiVCI Mini
1pc x USB External Power Adapter
1pc x User Manual
1pc x Quick Reference Guide
1pc x Carry Case
