Description

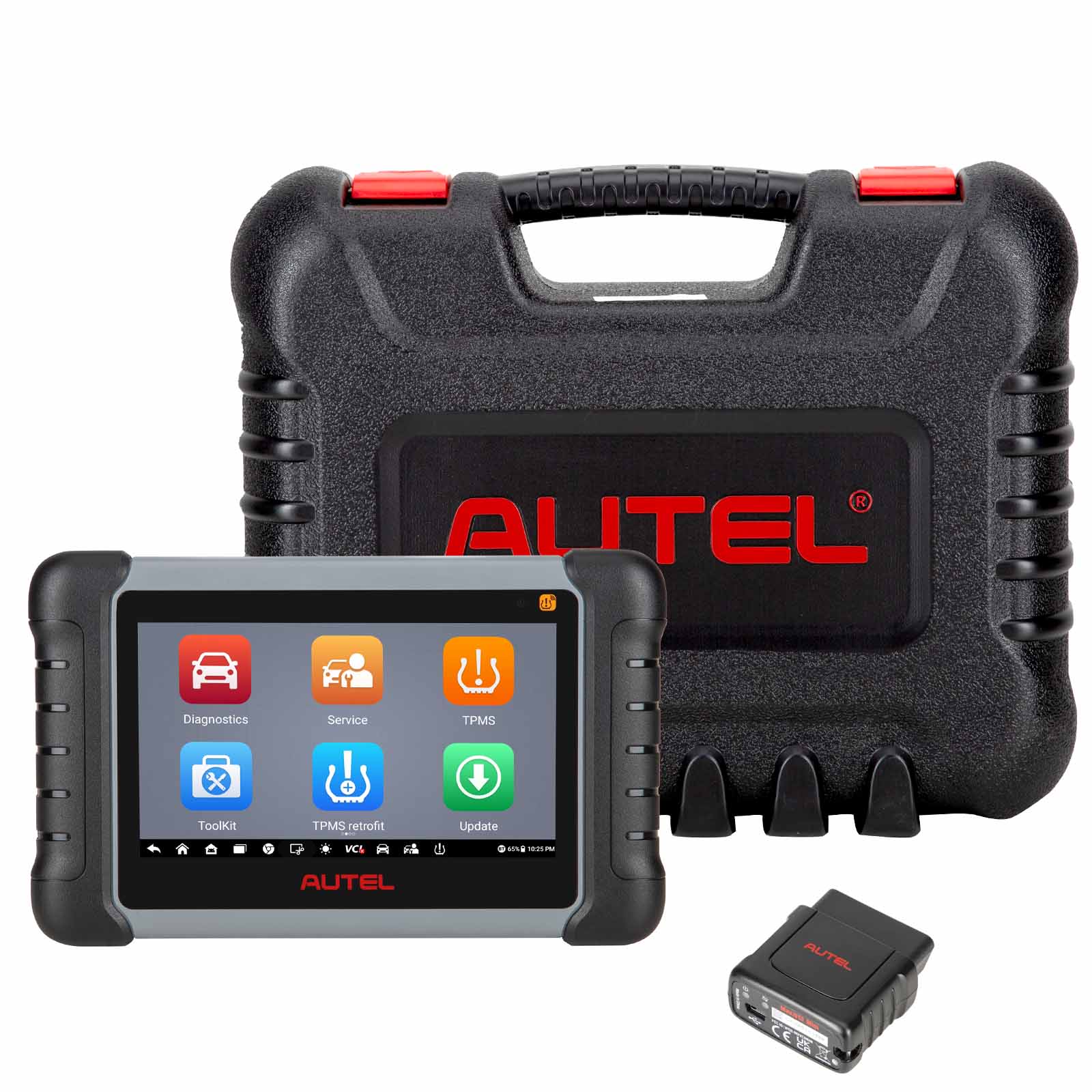

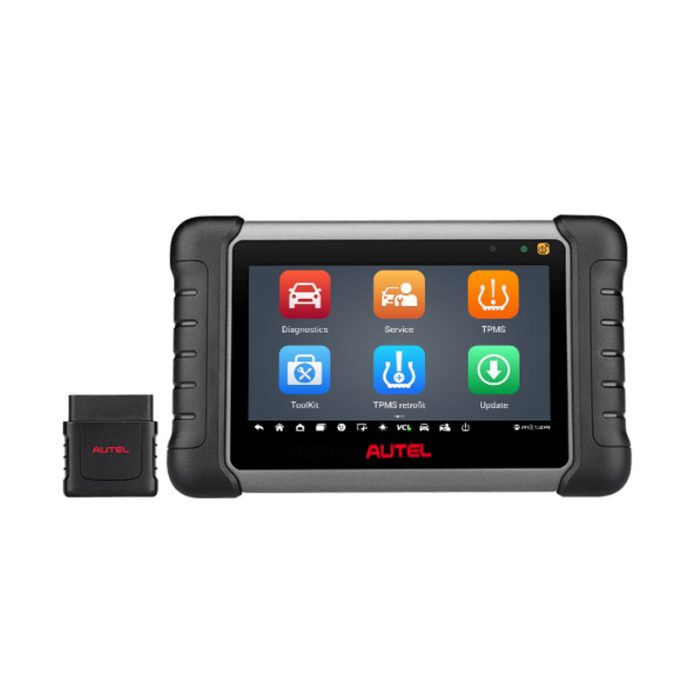

AUTEL MaxiPRO MP808S-TS TPMS Bidirectional Tool with TPMS Relearn Rest Programming Active Test 40+Services
Highlights:
1. Two Years Free Update Online. After two years, MP808S-TS one year update service Charges 299 USD / Year.
2. Auto VIN & Cloud Report Management & Remote Desk
3. 40+ Special Features
4. AutoAuth Access: MP808S-TS also has full access to protected FCA vehicles!
5. Advanced ECU Coding
*Â Unlock Hidden Functions: works on BMW, Audi, VW, Skoda etc.
*Â Online Coding:Â works on BMW, Porsche, VW etc.
*Â VAG Guided Functions: works on Audi, VW, Skoda, Seat, Man LD etc.

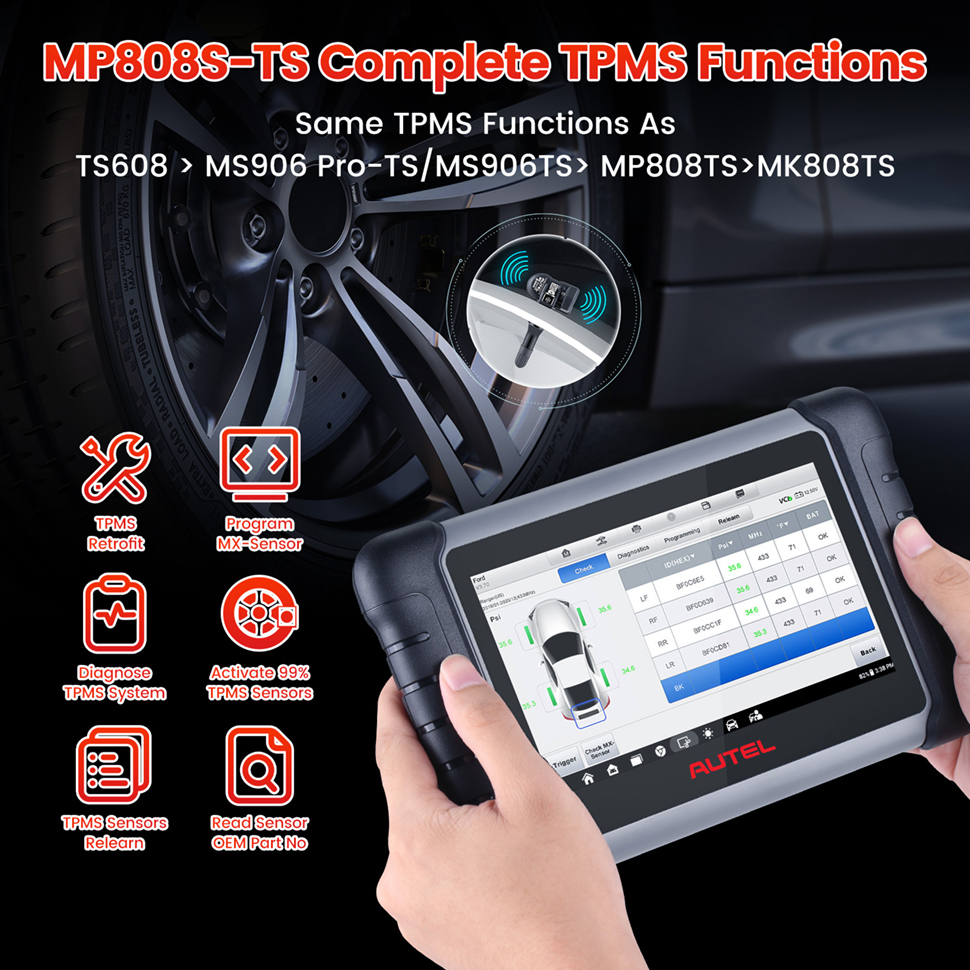

6. Complete TPMS Functions: The diagnostic tool is capable of activating/reading 98% of known TPMS sensors, reading and clearing TPMS codes, displaying manufacturer-specific TPMS Relearn procedures for all vehicles, performing OBDII Relearns and programming Autel MX-Sensors to replace OE sensors.
7. Multi-Language: English, German, Spanish, Portuguese, Dutch, French, Italian, Korean, Russian, Polish, and Swedish for optional. after you make an order, please contact with seller about the language. Autel Pre-selected Language Operation Guide
Extended Functions (Need to buy them additionally):
a. Compatible with MaxiBAS BT506 to perform battery analysis.
b. Compatible with MaxiVideo MV108S Inspection Camera: Connect with MV108S borescope to enable up-close visual inspections in confined areas, such as engine cylinders.
Description:
OE-Level All System Diagnostics: Autel MP808S-TS performs a wide range of OE-level diagnostics for all electronic systems. Besides all the functions of the MK808 / MK808TS, you can use this Autel scanner to carry out advanced Bi-directional Control and the Guided Functions of VW and Benz. It is a combination of advanced diagnostics and complete TPMS functions.
Programs Autel MX-Sensor with 2 options to replace OEM sensors:
a. Auto Create – Create a random ID to program MX-Sensor
b. Copy by OBD – Program the sensor ID retrieved from TPMS ECU
Specification:
| Operating System | Android 11 |
| Processor | Cortex-A55 quad-core processor (1.8GHz) |
| Memory | 4GB RAM & 64GB On-board Memory |

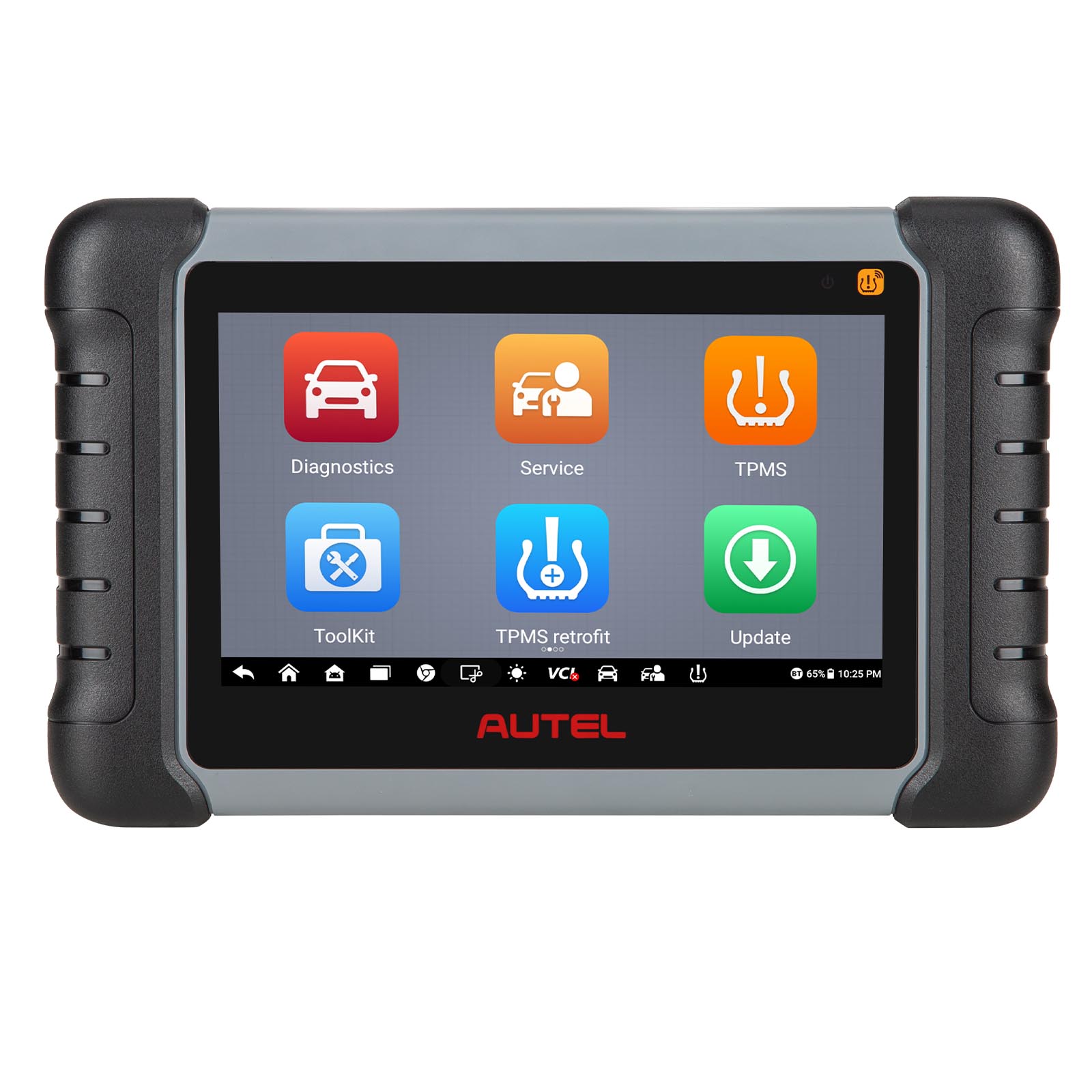

| Display | 7-inch LCD capacitive touchscreen with 1024×600 resolution |
| Connectivity | Wi-Fi（802.11a/b/g/n/ac） |

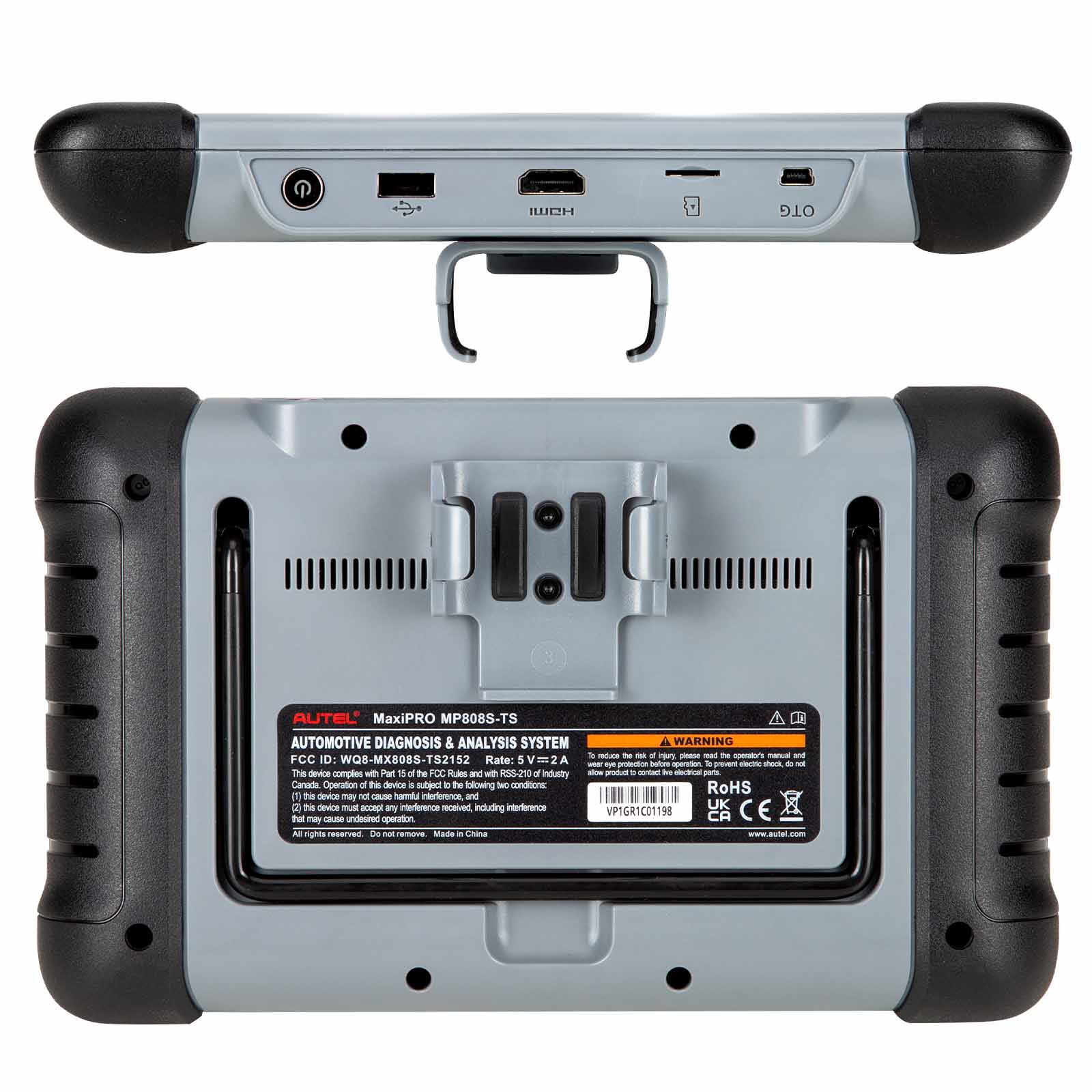

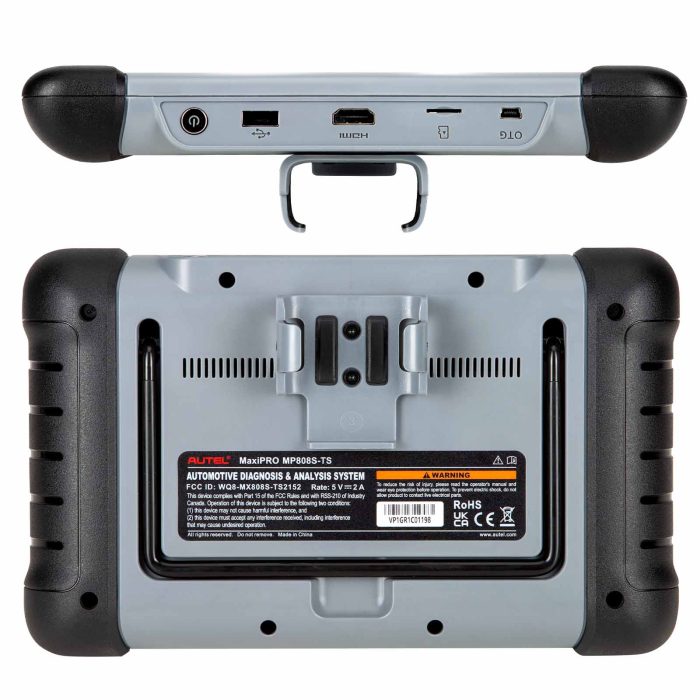

| USB 2.0，Mini USB 2.0 | |
| Wireless BT V2.1+EDR | |
| HDMI Type A | |
| SD Card (Support up to 64GB) | |
| Sensors | Light sensor for brightness auto adjust |
| Audio Input/Output | Input: N/A |
| Output: Beep | |
| Power and Battery | 3.7 V/5000mAh lithium-polymer battery |
| Charges via 5 VDC power supply | |
| Input Voltage | 5V/1.5A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions(WXHX D) | 270.8 mm (10.0″) x 176.0 mm(6.9″) x 36.0 mm (1.4″) |
| Weight | 885g (2.31 lb.) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6 |

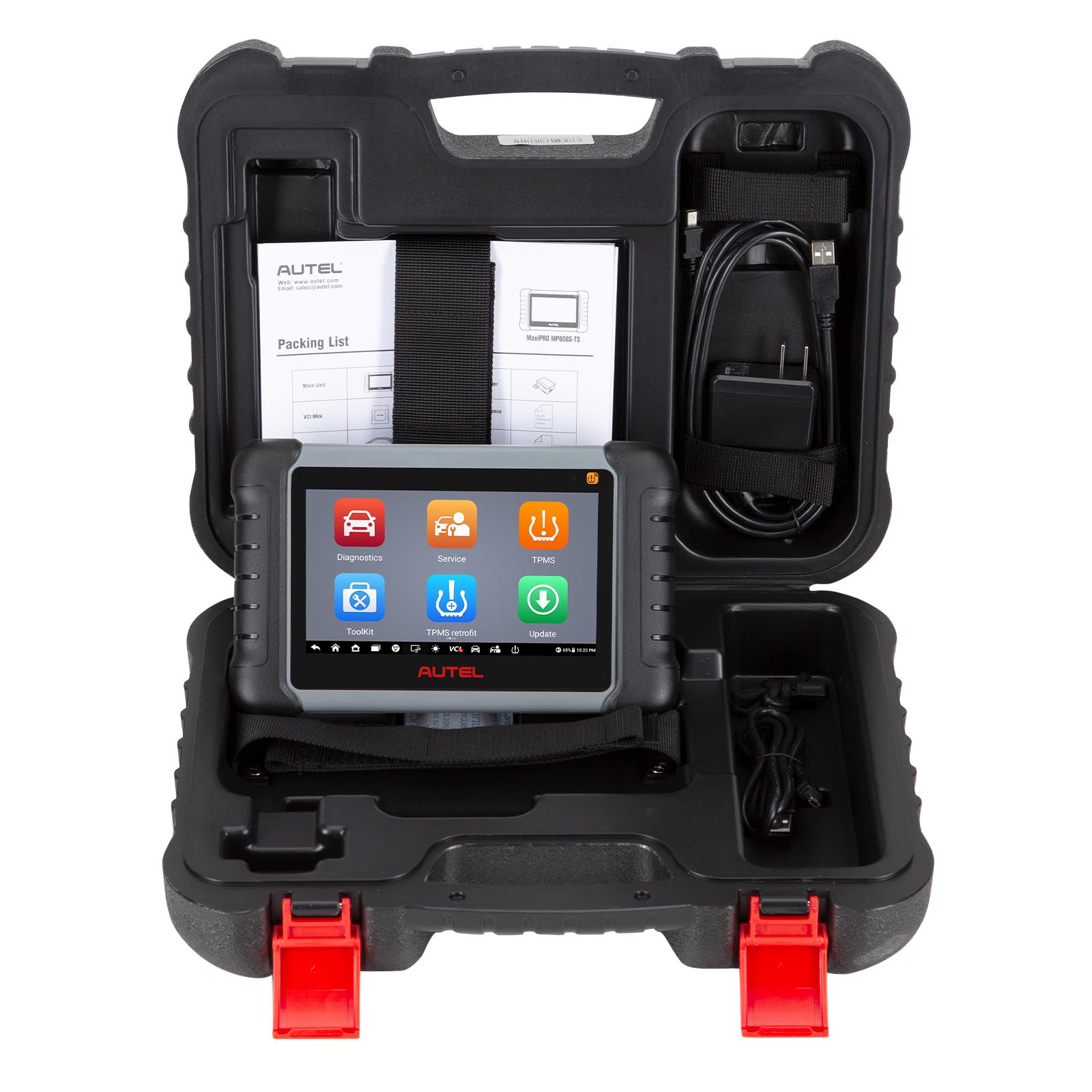

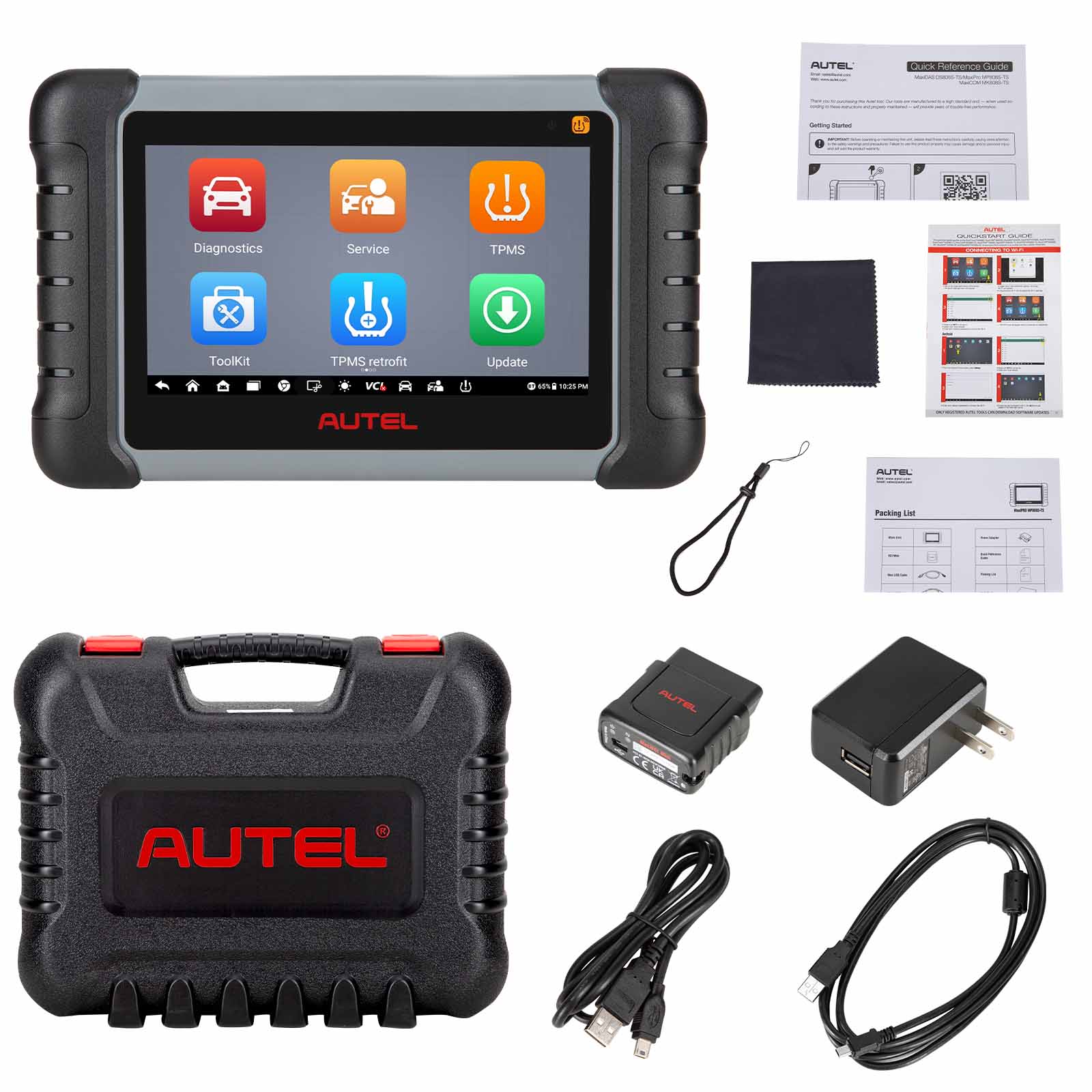

Package List:
1 set x MP808S-TS
