Description
2025 Autel MaxiIM IM508S Advanced IMMO and Key Programming Tool with XP200
Highlights:
1. One Year Free Update Online. After One Year, Autel IM508S One Year Software Subscription costs 299 USD per year.
2. Global Version without IP Blocking Problem. IM508S=IM508 II, Upgraded Version of IM508.
3. Level-Up Professional Key FOB Programming & Scan Toola
a: Hardware
5X Faster Android 11
4GB RAM + 64GB ROM
Quad-Core CPU Rockchip RK3566
2.4 & 5 GHz Dual WiFi
b: Software
Add key
All Key Lost
Key/ Remote Learning
Key/ Chip Read/ Write
EEPROM Read/ Write
Smart Mode & Expert Mode
40+ Services
Bi-directional Control (Active Test)
FCA AutoAuth & Renault SGW
Auto VIN/ Auto Scan/ ECU Info.
OE-Level Full Diagnostics
Multi-language (English, Spanish, French, Russian, German, Italiano, Portuguese. You can change on your side.)
Autel Cloud Report Management
Extensive Functions:
► Work with MV108S (Need Additonal Purchase) to enable up-close visual inspections in confined areas, such as engine cylinders.
► IM508S with APB112 G-BOX3 (Recommend for Toyota)
► IM508S with XP400 Pro (IMMO Functions As IM608 II)
► IM508S with XP400 Pro APB112 G-BOX3 (IMMO Functions As IM608 II Full Kit)
► IM508S with G-BOX3 (Recommend for Mercedes & BMW)
Description:

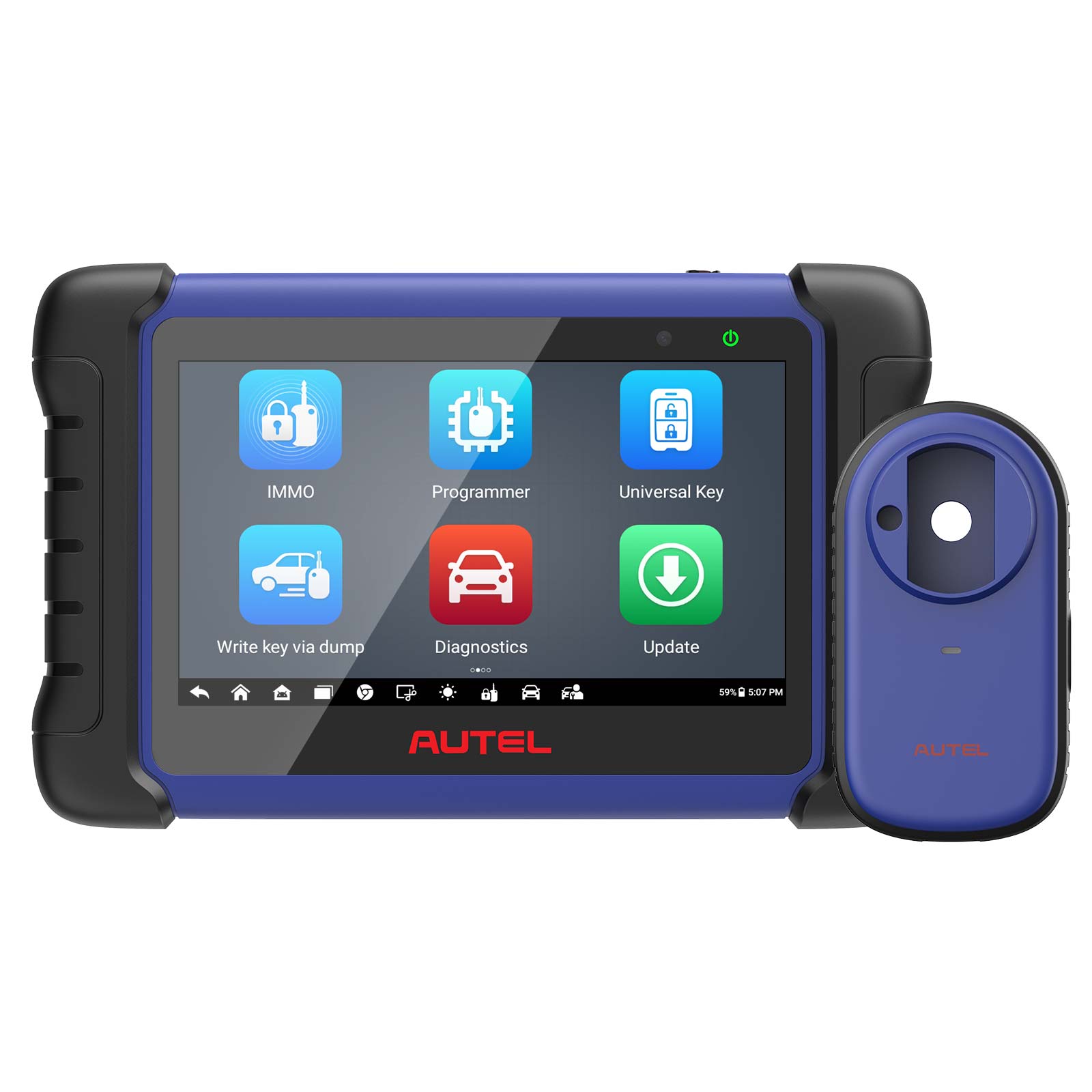

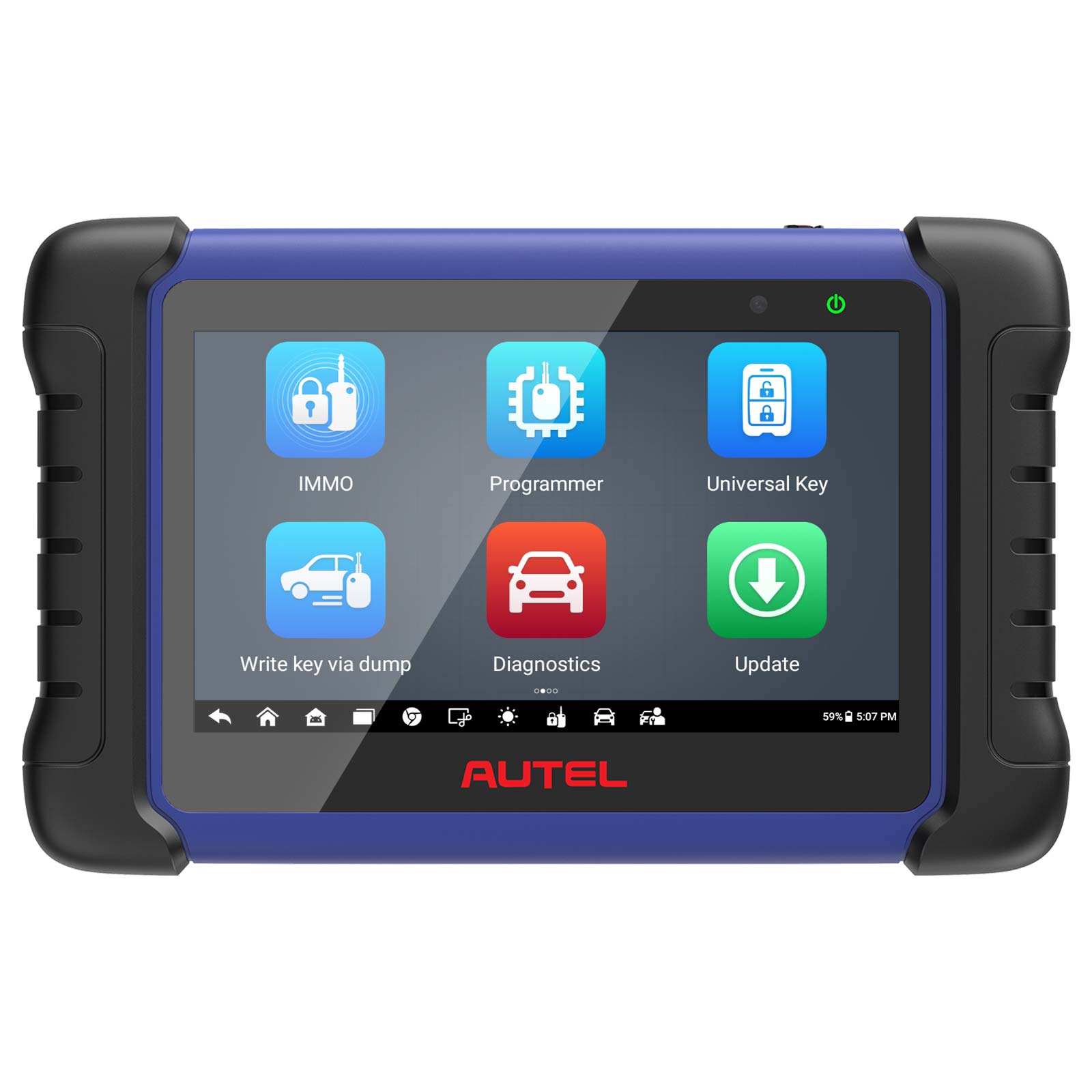

Autel MaxiIM IM508S is a fast, easy-to-use, and ultraportable immobilizer and key programming device. The Android-based touchscreen tablet features a powerful quad-core processor, an intuitive design, and a straight-forward interface. Equipped with the XP200 key programmer, IM508S is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508S provides you with superior special functions. IM508S is the perfect solution for shopkeepers and technicians who demand affordable and powerful IMMO and diagnostic services.
Note: MaxiIM IM508S is specifically designed for legal automotive repairs. This requires users to have legitimate access to the vehicle, either by legally having the vehicle key, or having the vehicle owner’s permission using the key.
Specifications:
| Operating System | Android 11 |
| Processor | Rockchip RK3566 Quad core Processor: 4x 1.8GHz(A55) |
| Memory | 4GB+64GB |
| Display | 7-inch LCD capacitive touchscreen with 1024×600 resolution |
| Connectivity | Mini USB 2.0 USB2.0 Wi-Fi Micro SD card slot(supports up to 64GB) |
| Sensors | Ambient light sensor for brightness auto changing |
| Power and Battery | 5000mAh 3.7V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5%-95% non-condensing |
| Net Weight | 0.78 kg (1.72 lb.) |
| Supported Automotive Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |

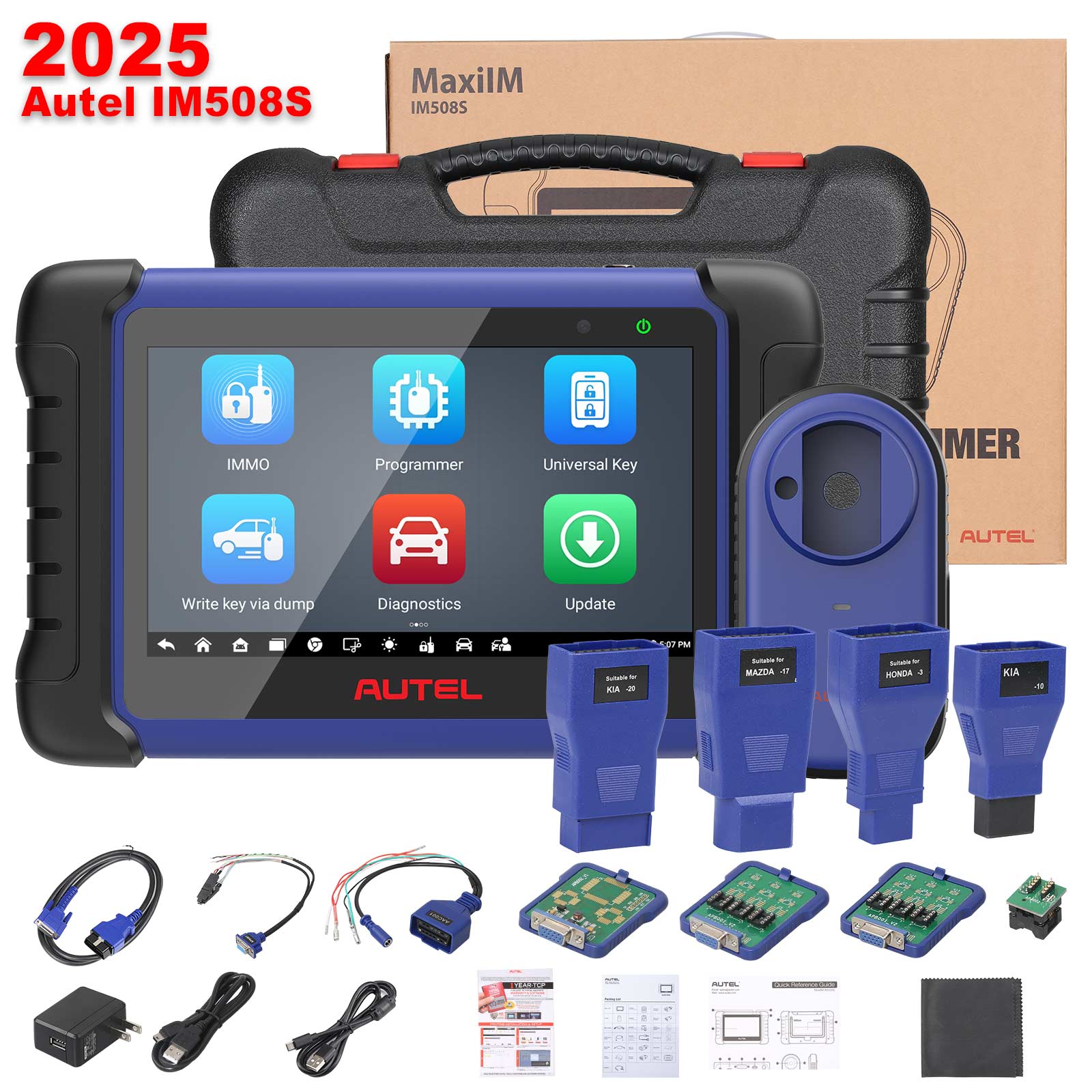

Package Includes:
1PC x MaxiIM IM508S Tablet
1PC x XP200 Key Programmer
1PC x Main Cable
1PC x Mini USB Cable
1PC x Type-C USB Cable
1PC x USB External Power Adapter
1PC x APB001 (EEPROM Adapter)
1PC x APB002 (68HC908 Adapter)
1PC x APA002 (EEPROM Socket)
1PC x APA001 (EEPROM Clamp Intergrated MC9S12 Cable)
1PC x AAC001 – MED17 Cable
1PC x KIA-10 Adaptor
1PC x KIA-20 Adaptor
1PC x Mazda-17 Adaptor
1PC x Honda-3 Adaptor
1PC x Carrying Case
1PC x Quick reference guide
