Description

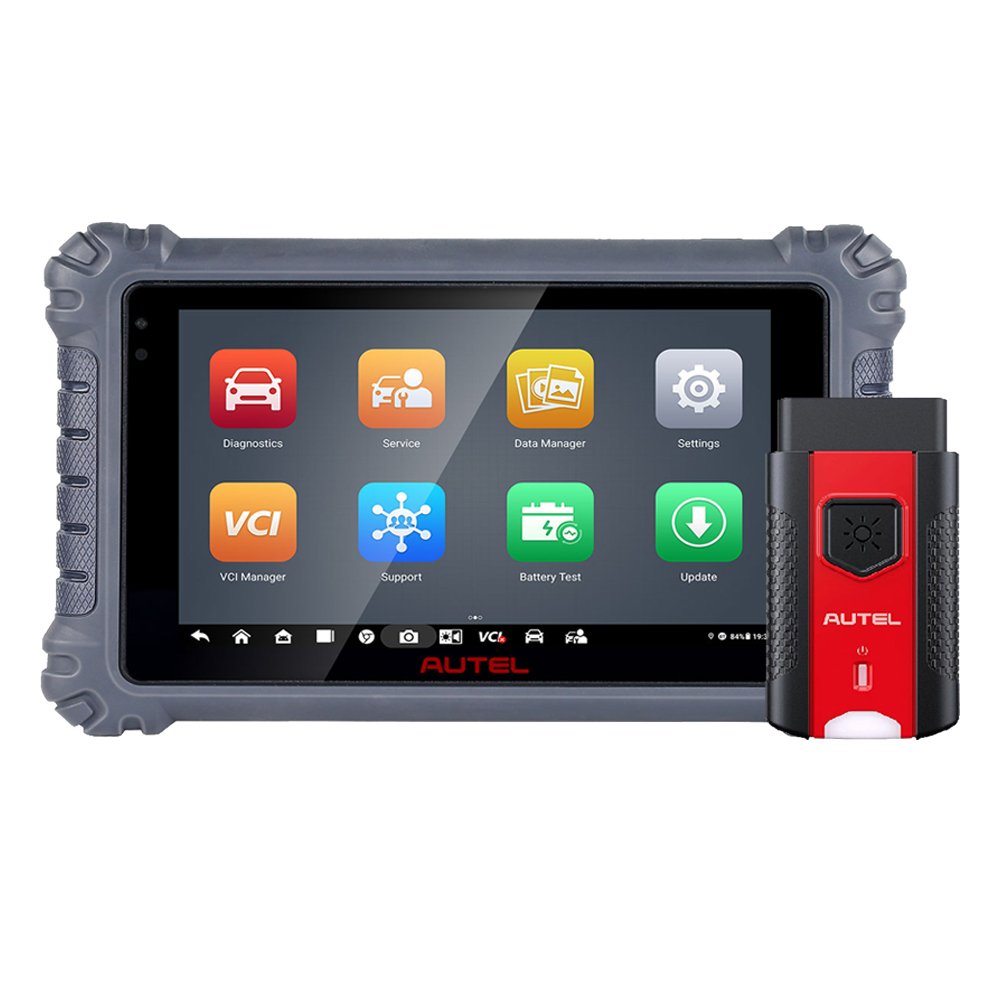

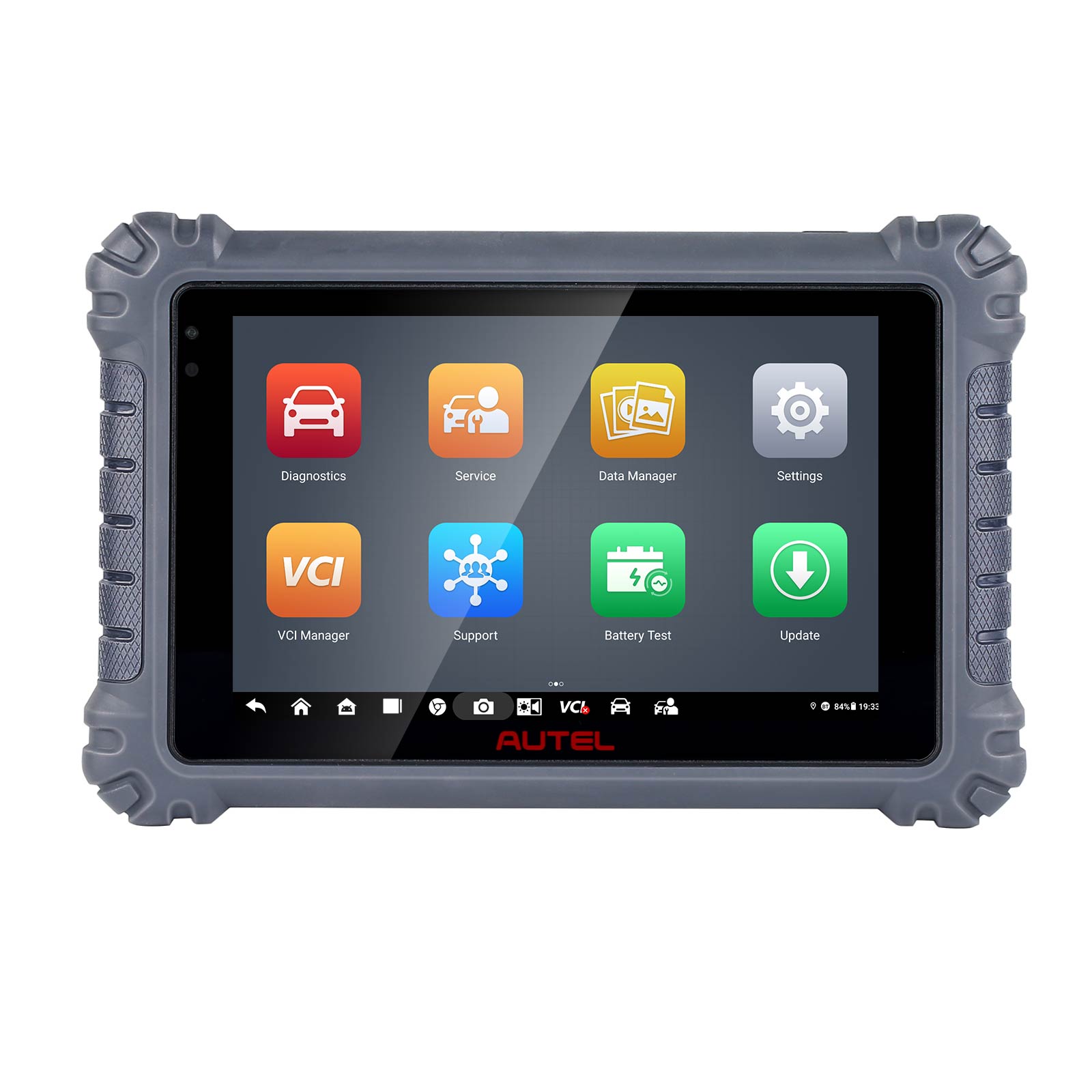

Autel MaxiCOM MK906 PRO Scanner Upgraded of MS906 Pro/MK906BT Diagnostic Tool with Advanced ECU Coding
Highlights:
1. One Year Update Service Online, after that, Autel MK906 PRO One Year Software Update Service charges 299 USD/ Year.
2. WiFi Print & Scan VIN & Scan License
3. Bi-directional control pinpoints problems within 5 minutes
4. Advanced ECU coding activates high-level vehicle functions
5. 40+ reset functions repair 99% of common vehicle problems
6. VAG guided functions ease the complex diagnostics for you
7. New! CAN FD & DoIP
8. Work for global 150+ Brands, 10000+ vehicle models, 1996-2025, and Access FCA SGW vehicles
9. Multi-language: English, German, Spanish, French, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, and Swedish. (Offer us serial number via sales@autelsale.com for language authorization)
10. Upgraded Hardware:
Android 10.0 OS
Qualcomm 660
11600mAh
4GB & 128GB
Dual WiFi (2.4 & 5 GHz)
8″ 1920*1200 Display
Rear 16M & Front 16M
With MaxiVCI V200
Extended Functions:
►Videoscope (Buy MV108S additionally)
►Battery Test (Buy BT506 additionally)
►If you need TPMS functions together, you can buy MK906 PRO TS.

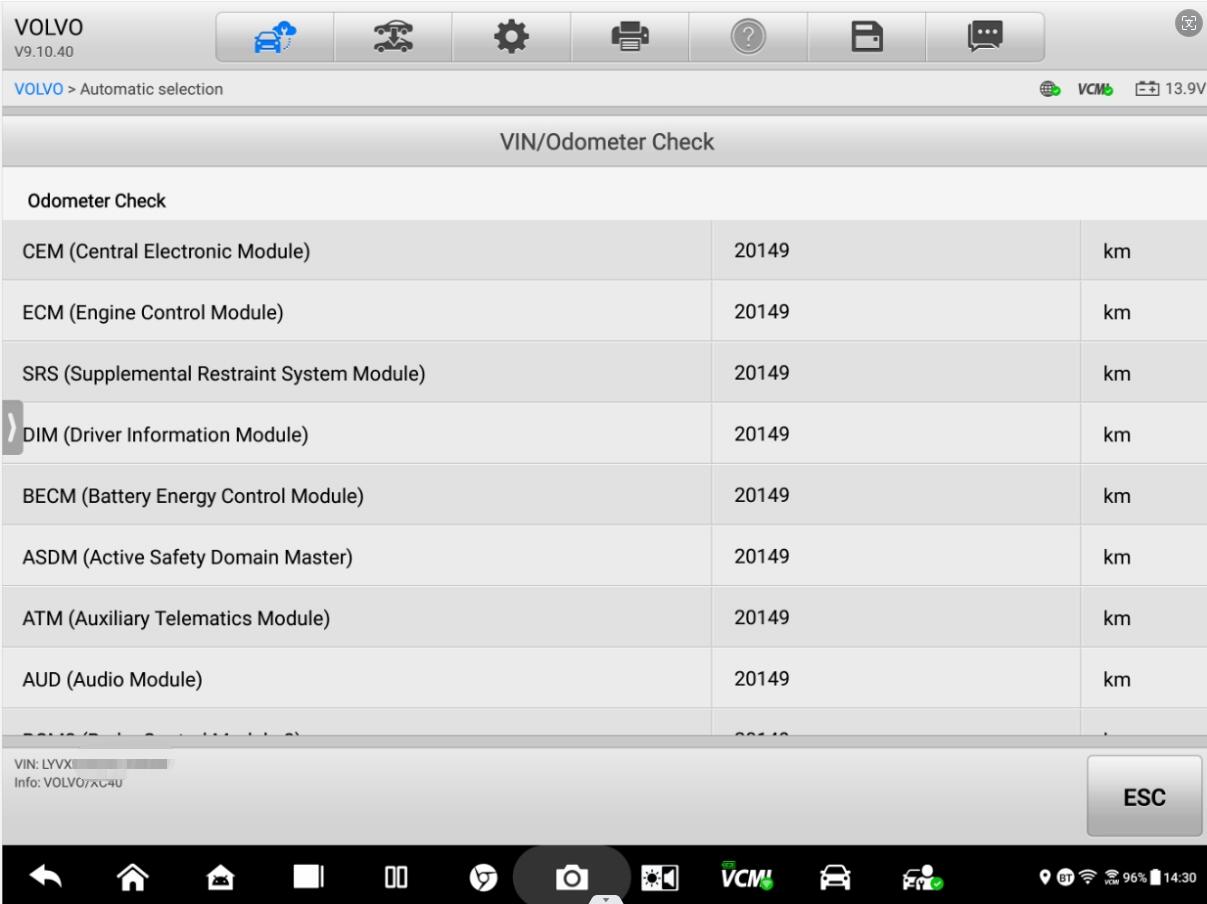

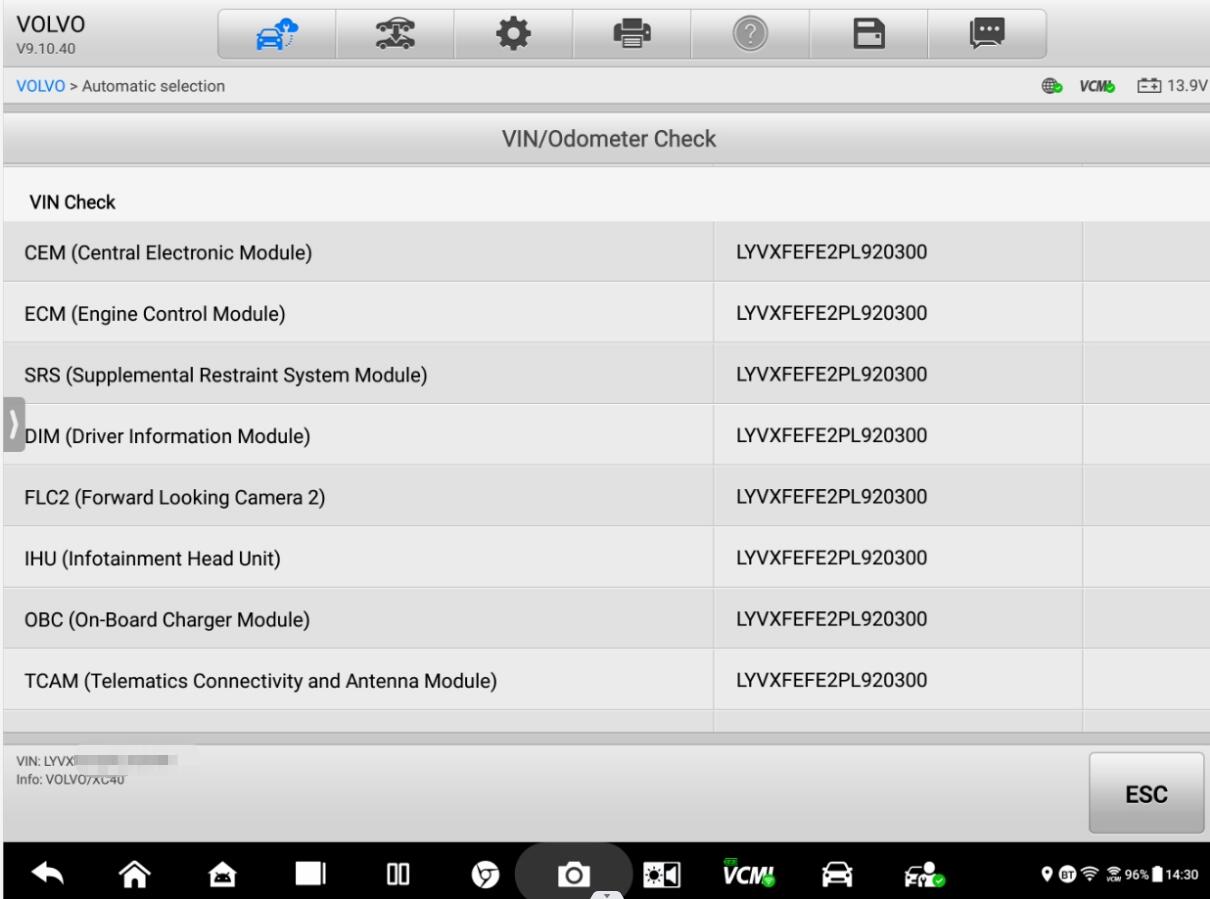

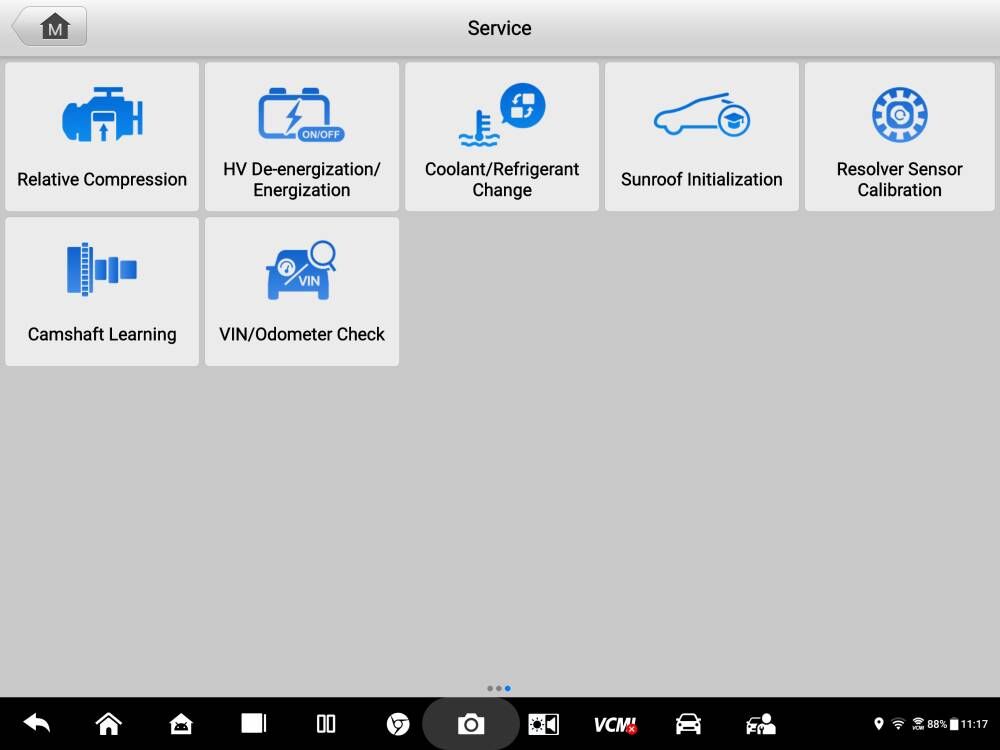

New! VIN/ Odometer Check
Adds “VIN/ Odometer Check” feature, which supports reading the mileage and Vehicle Identification Number (VIN) values stored in various control units of the vehicle.
By comparing the values, it serves as reference information for the maintenance history of the vehicle module.
Supported Manufacturers: for Chrysler, Dodge, JEEP, Porsche, Hyundai, Kia, Genesis, Fiat, Alfa, Abarth, Lancia, VW, Audi, Bentley, Lamborghini, Seat, Skoda, Nissan, Infiniti, NissanGTR, Toyota, Scion, Lexus, Subaru, Suzuki, Ford, Mazda, Peugeot, Citroen, DS, LandRover, Jaguar, GM, Chevrolet, BMW, Mini, Renault, Dacia, Samsung, Volvo, Polestar, Benz, Maybach…
Autel MaxiCOM MK906 PRO Description:
Upgrade of Autel MaxiSys MS906BT/ MK906BT and hold the same diagnostic functions as MS906Pro/ MK908. Autel MK906Pro has a comprehensive updating and optimization of the hardware configuration: Equipped with Android 10.0 OS and Qualcomm 660 processor, it can run faster diagnostics & longer work time and easily handle multi-tasks. In addition, the MK906Pro scanner does better at assisting repair shops/ garages in managing customer information and diagnostic reports, which greatly improves efficiency and services.
MaxiCOM MK906 PRO is the latest addition to the MaxiCOM product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8″ capacitive HD touch screen, and long-distance wireless communication, the MaxiCOM MK906PRO efficiently provides comprehensive vehicle diagnostics and analysis.
Specification:
| Operating System | Android 10.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 8 inch TFT-LCD with 1920*1200 resolution & capacitive touch screen |
| Connectivity | WiFix2(802.11a/b/g/n/ac 2×2 MIMO) |
| BT v.2.1 + EDR | |
| GPS | |
| USB 2.0 (Two USB HOST Type A, one USB mini device) | |
| HDMI 2.0 | |
| SD Card (Support up to 256GB) | |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight |
| Front:16 Megapixel | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone |
| Dual Speakers | |
| 3-Band 3.5 mm stereo/standard headset jack | |
| Power and Battery | 11600mAh 3.8V lithium-polymer battery |
| Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V/3A Adapter |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″) |
| Weight | 2.18kg (4.81 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |

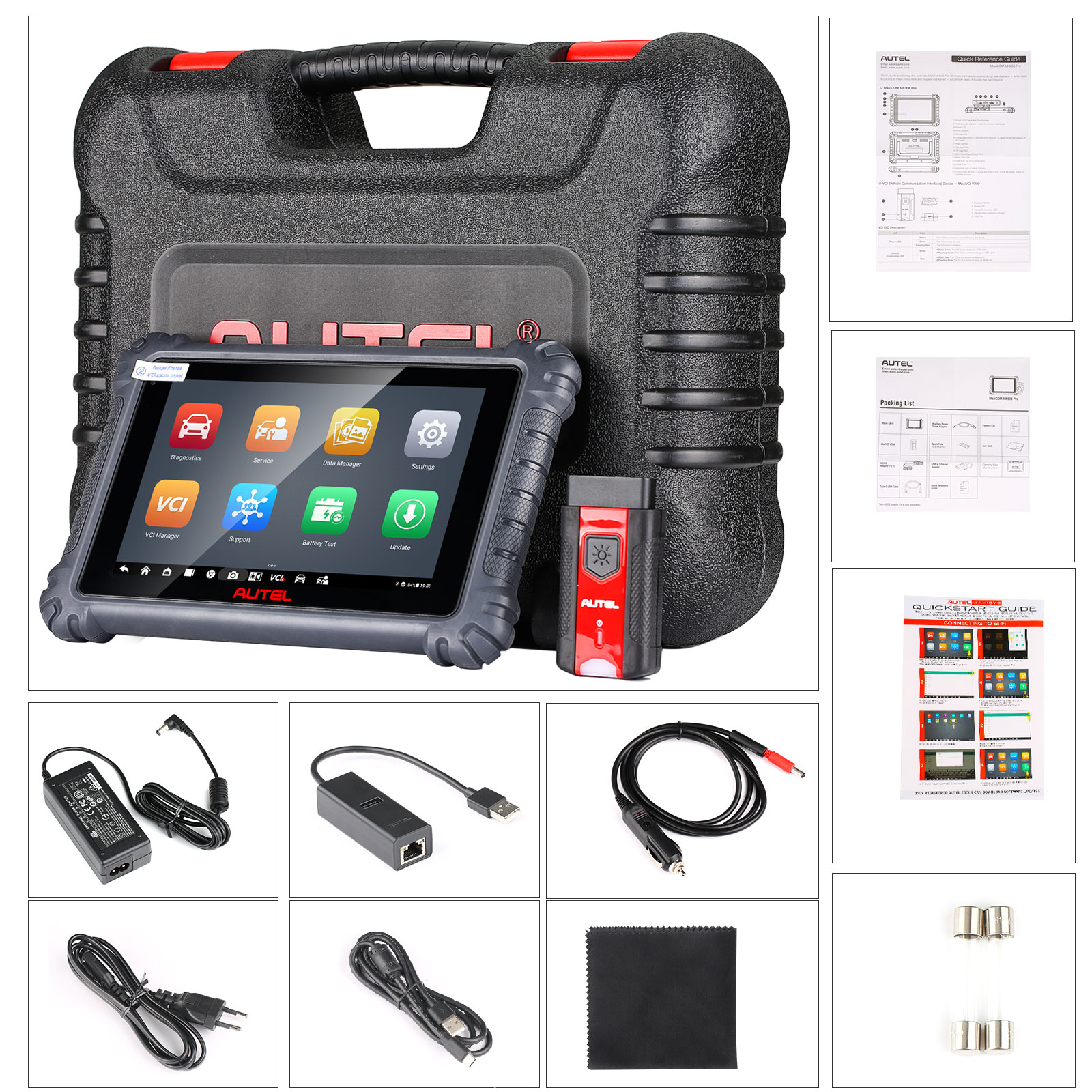

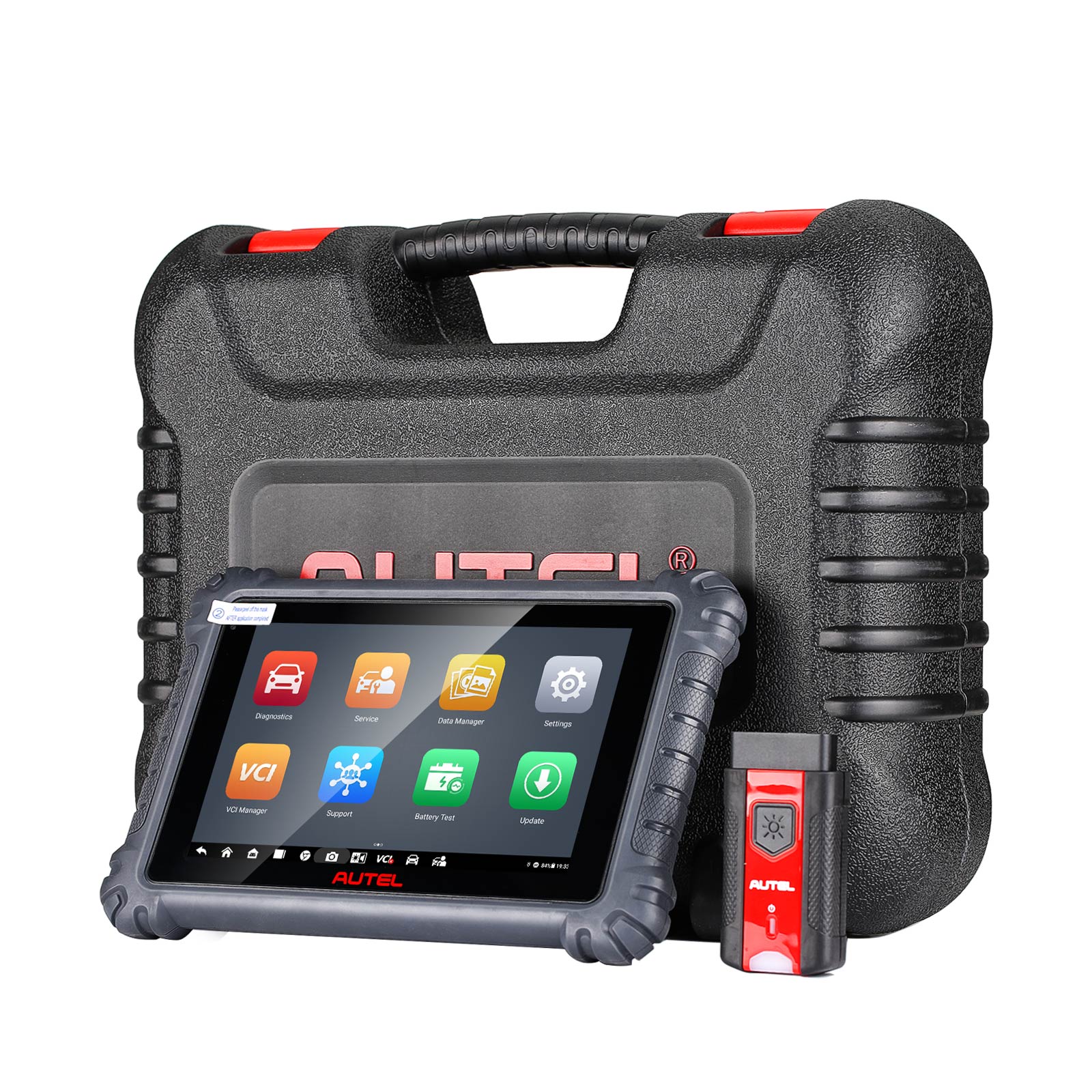

Package List:
1pc x MK906 PRO Main Unit
1pc x MaxiVCI V200
1pc x AC/DC Adapter (12V)
1pc x Type-C USB Cable
1pc x Auxiliary Power Outlet Adapter
2pcs x Spare Fuse 6x30mm
1pc x USB to Ethernet Adapter
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth
1pc x Carrying Case
