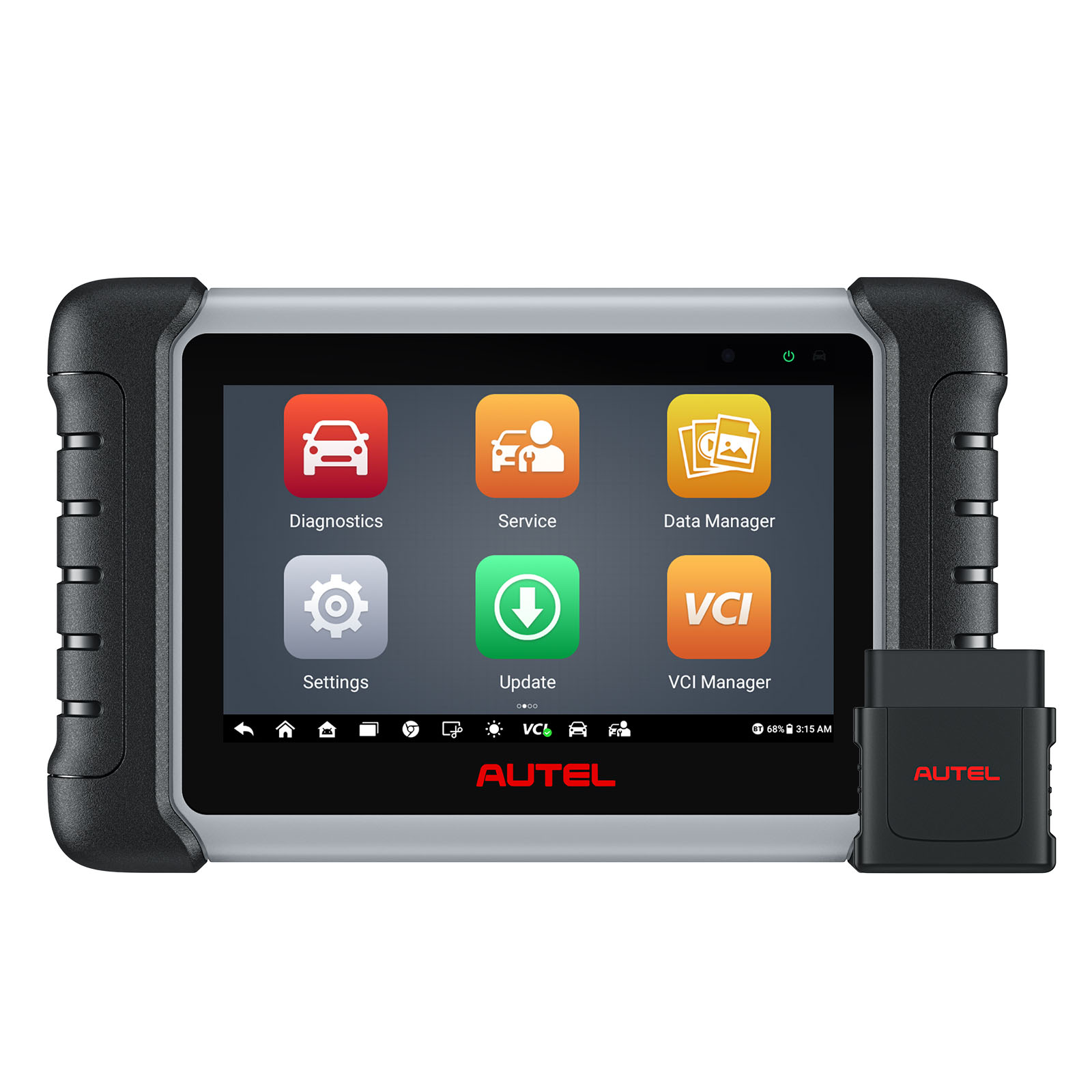

2025 Autel MaxiCOM MK808Z-BT All System Diagnostic Tool with MaxiVCI Upgrade Version of MK808BT
Highlights:
1. One Year Free Update Online on Autel Official Website, after one year, MK808Z-BT one year update service costs 139 USD/ year.

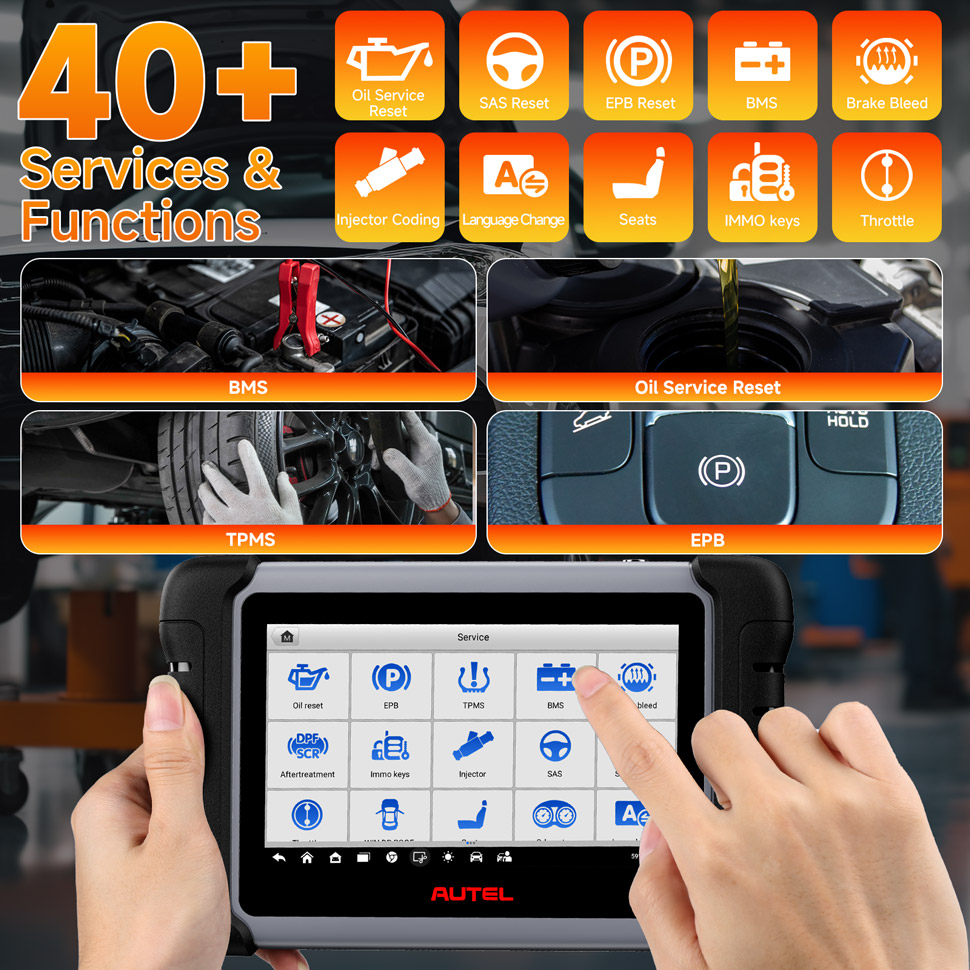

2. Supported 40+ Services: ABS, DPF, EPB, SAS, SRS, TPMS, BMS, Oil Service Reset, etc. .
3. Bi-directional Control and Active Test.

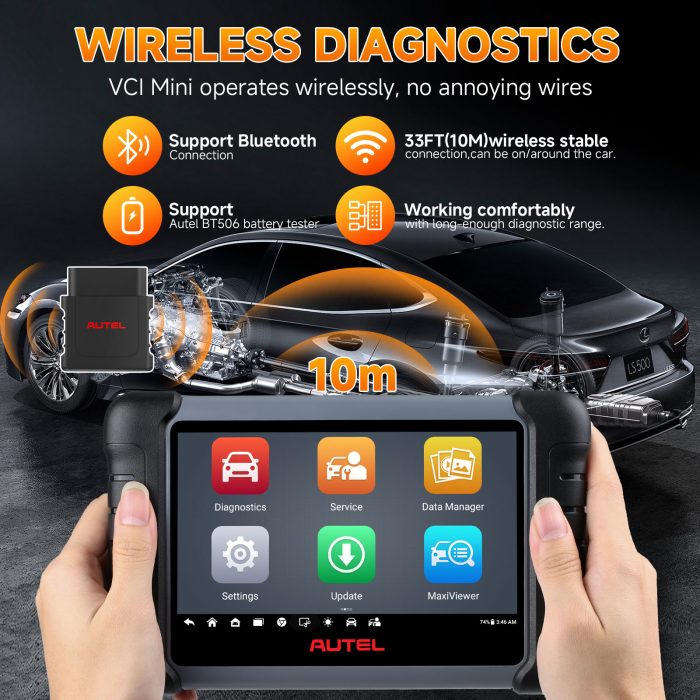

4. With Bluetooth Connection and Wireless connection makes All System OE-Level Diagnostic easier
5. Rockchip RK3566 processor and 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display. 4GB + 64GB for better performance.
6. Vehicle Coverage: Extensive vehicle coverage for more than 80 US, Asian, and European cars.
7. Language Supported: English, German, Italian, Spanish, French, Dutch, Portuguese, Swedish, Polish, Korean, Russian. Autel Pre-selected Language Operation Guide.
8. Extended Functions (Need to buy them additionally):
►Compatible with MaxiBAS BT506 to perform battery analysis.
►Compatible with MaxiVideo MV108S Inspection Camera: Connect with MV108S borescope to enable up-close visual inspections in confined areas, such as engine cylinders. (MK808Z-BT with MV108S)
Autel MaxiCOM MK808Z-BT Description:

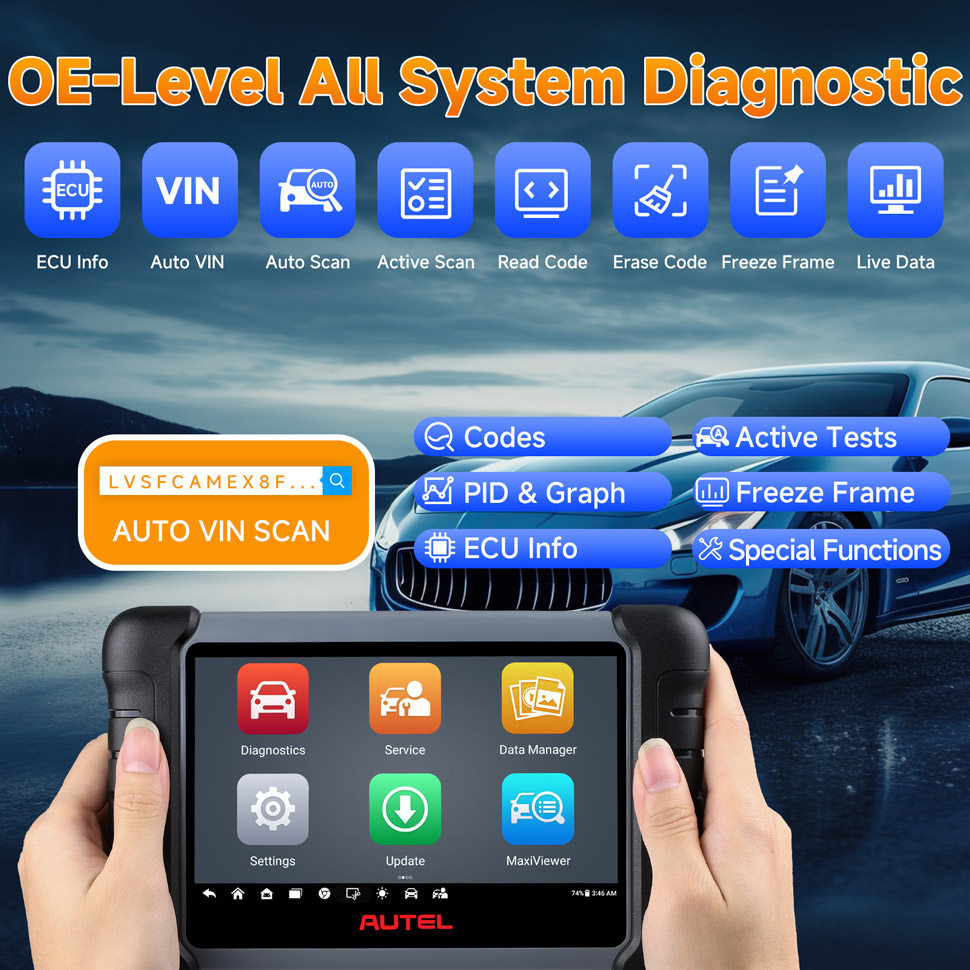

Features the powerful Rockchip RK3566 processor, and a 7.0-inch LCD capacitive touchscreen, based on the Android 11 multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808Z-BT is your ideal auto diagnostic and service tool. MK808Z-BT provides you with 40+ Comprehensive special functions, including Oil Reset, EPB(Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).

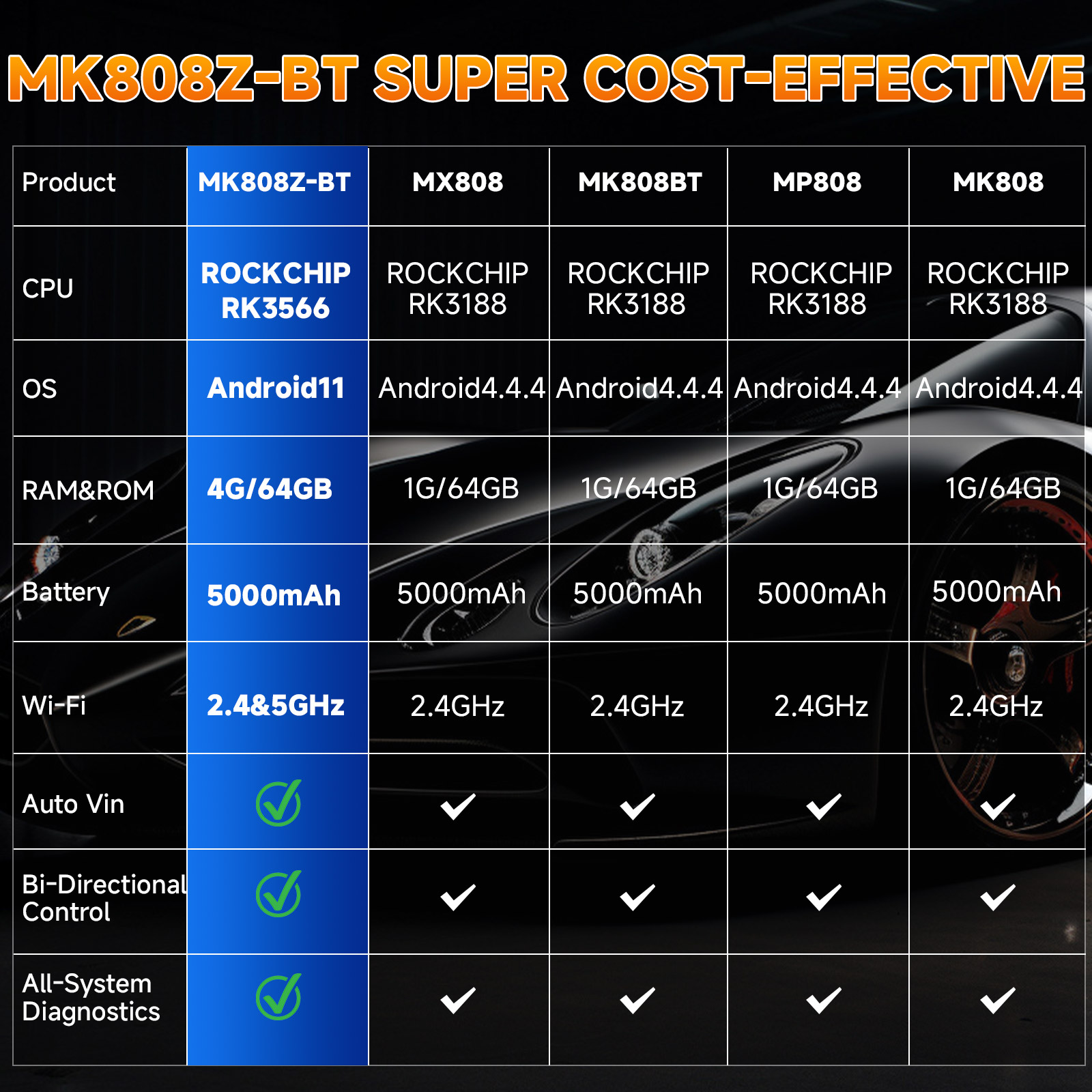

Autel MK808Z-BT MK808BT PRO Specifications:
| Recommended Use | Indoor |
| Operating System | Android 11 |
| Processor | Rockchip RK3566 |
| Memory | RAM 4G+ROM 64G |
| Display | 7-inch LCD capacitive touchscreen with 1024 x 600 resolution |
| Connectivity | Mini USB 2.0 USB2.0 Wi-Fi (2.4 & 5GHz) HDMI Type A Micro SD card slot(supports up to 64GB) |
| Sensors | Light sensor for brightness auto changing |
| Audio input/output | Input: N/A Output: buzzer |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) 3.7 V |
| Operating Temp. | 0 to 55°C(32 to 131°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Dimensions (W x H x D) | 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
| Net Weight | 788 g (2.42 lb.) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

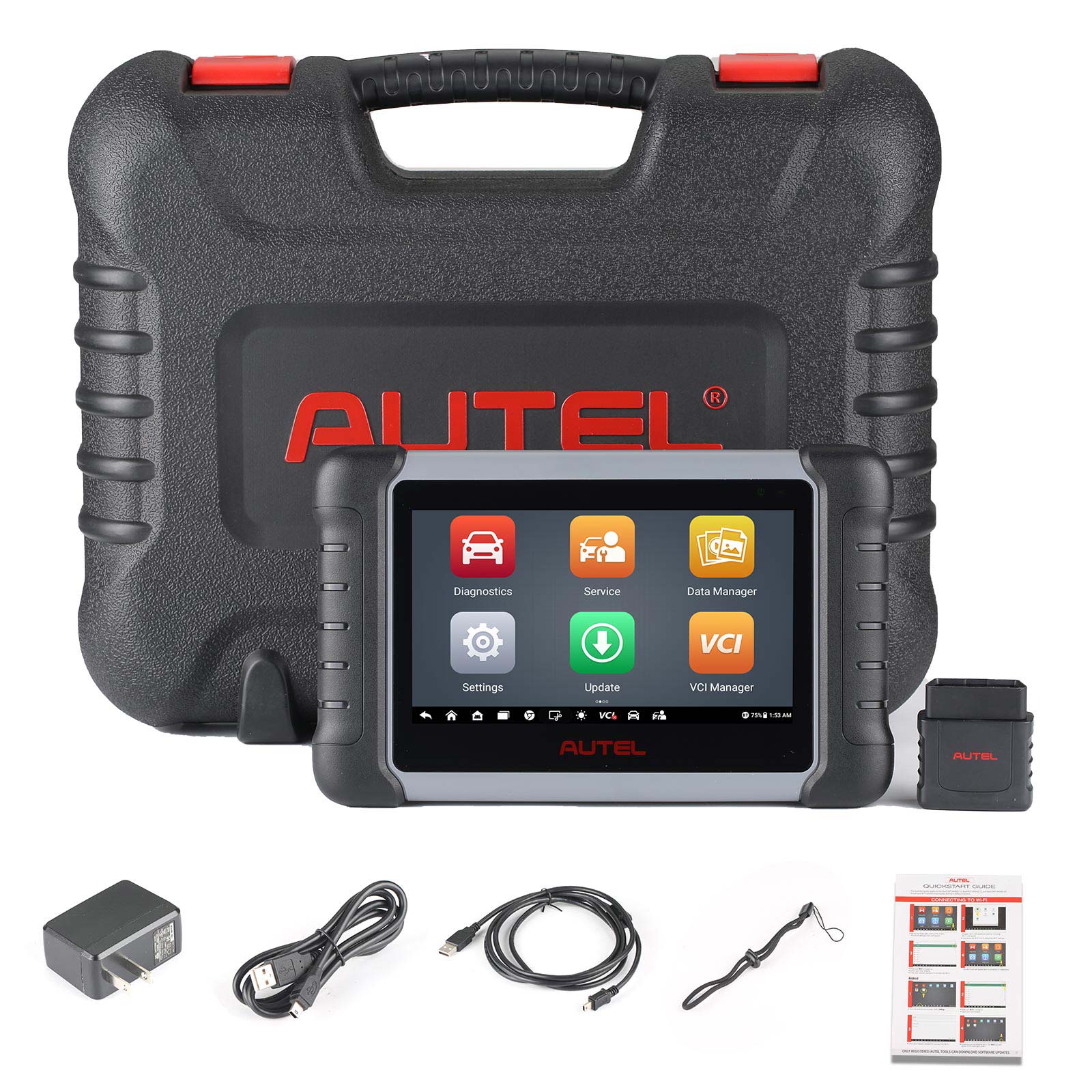

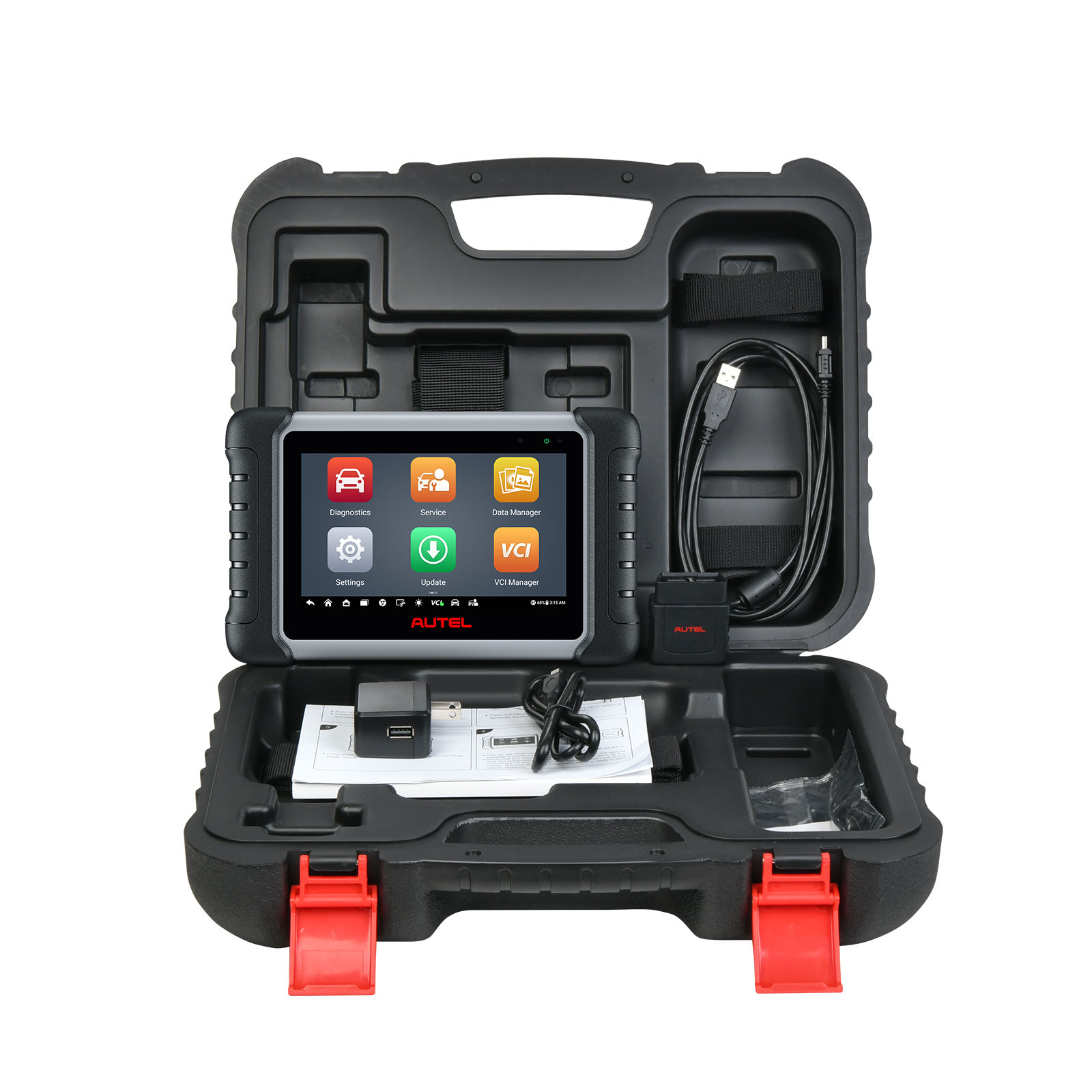

Autel MK808BT Pro / MK808Z-BT Package List:
1pc x MK808Z-BT Tablet
1pc x USB External Power Adapter
1pc x USB Cable(for testing)
1pc x USB Cable(for charging)
1pc x MaxiVCI Mini
1pc x Quick Reference Guide
1pc x User Manual
