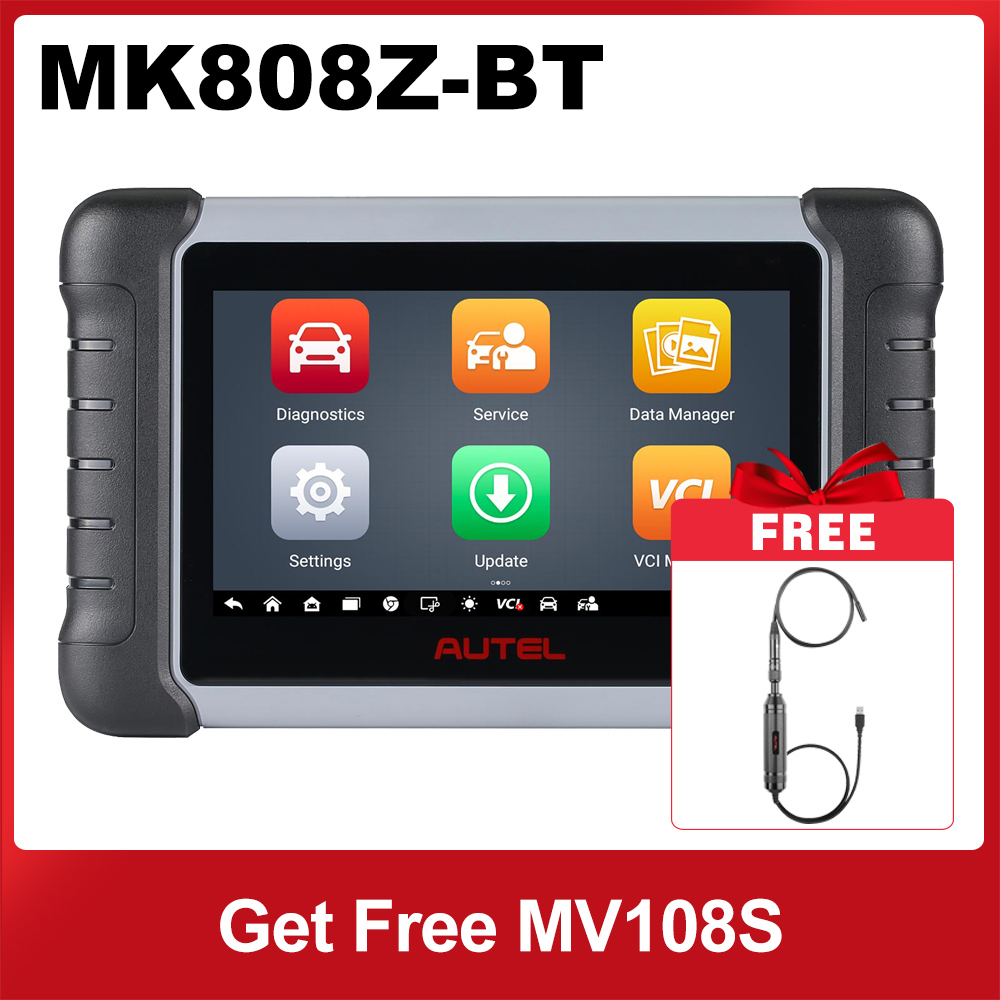

Autel MaxiCOM MK808Z-BT With Autel MaxiVideo MV108S 8.5mm
Buy MK808Z-BT now Get Free MV108S. Connect with MV108S borescope to enable up-close visual inspections in confined areas, such as engine cylinders.
Highlights:
1. One Year Free Update Online on Autel Official Website, after one year, MK808Z-BT one year update service costs 139 USD/ year.
2. Supported 40+ Services: ABS, DPF, EPB, SAS, SRS, TPMS, BMS, Oil Service Reset, etc.
3. Bi-directional Control and Active Test.
4. Perform bi-directional Active Tests.
5. 40+ Services.
6. AutoVIN technology, Cloud-based Report Management, Remote Desk.
7. Vehicles Supported: Support Asian and European vehicles,1996-2025. Adds FCA AutoAuth: Unlock SGW module on 2018+ Chrysler and Fiat Vehicles; Renault SGW (2015+).
8. Language Supported: English, German, Italian, Spanish, French, Dutch, Portuguese, Swedish, Polish, Korean, Russian. Autel Pre-selected Language Operation Guide.
Hardware:
Android 11 Operating System
5000 mAh Battery
Dual WiFi 2.4 & 5 GHz
4GB + 64GB
7 inch, 1024*600 screen resolution
Powerful Rockchip RK3566 processor
VCI Mini (Bluetooth Connection and Wireless connection)
Extended Functions (Need to buy them additionally):
► Compatible with MaxiBAS BT506 to perform battery analysis. ► MK808Z-BT with BT506
► If you need TPMS functions, buy MK808Z-TS instead.
Autel MaxiCOM MK808Z-BT Description:

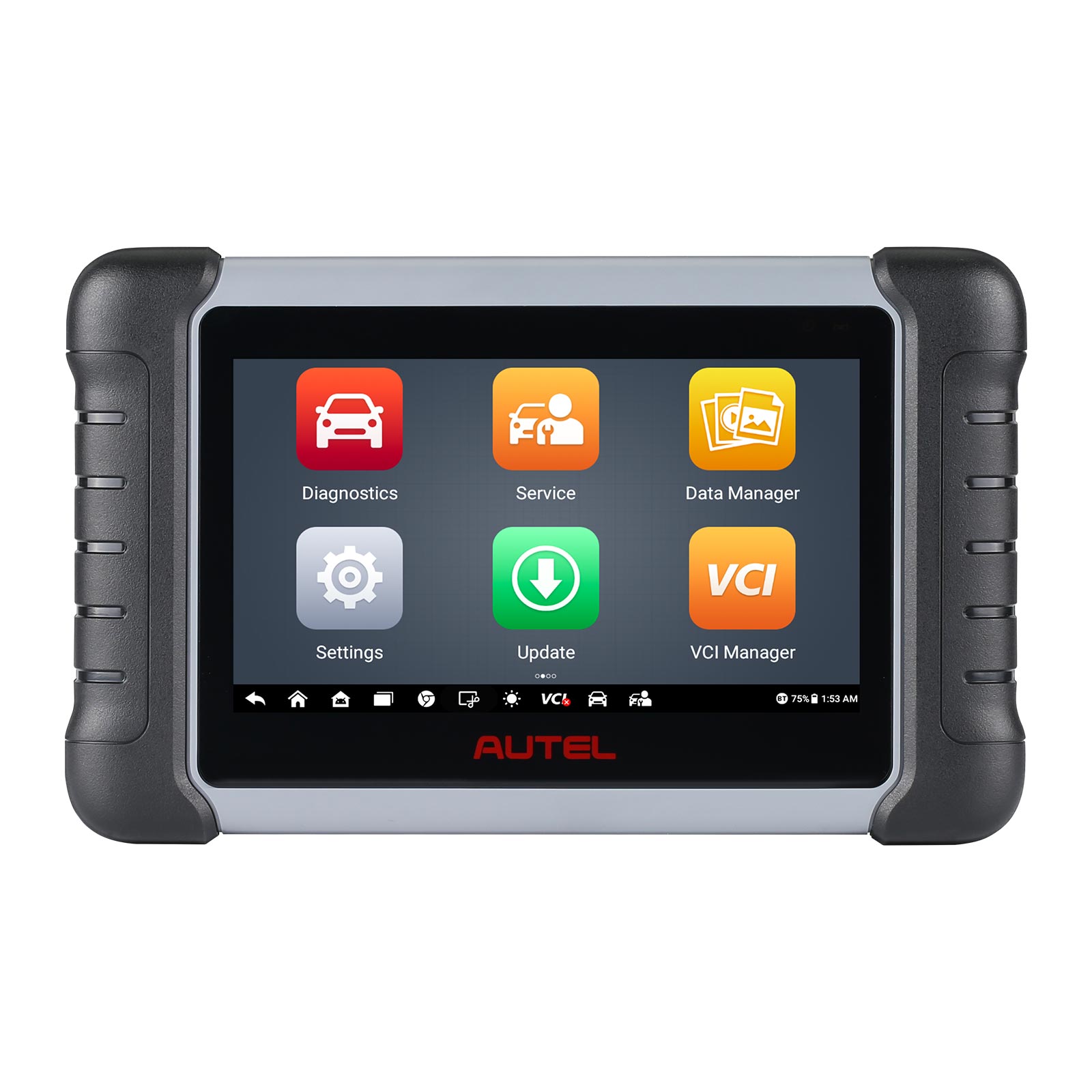

Features the powerful Rockchip RK3566 processor, and a 7.0-inch LCD capacitive touchscreen, based on the Android 11 multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808Z-BT is your ideal auto diagnostic and service tool. MK808Z-BT provides you with 40+ Comprehensive special functions, including Oil Reset, EPB(Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).

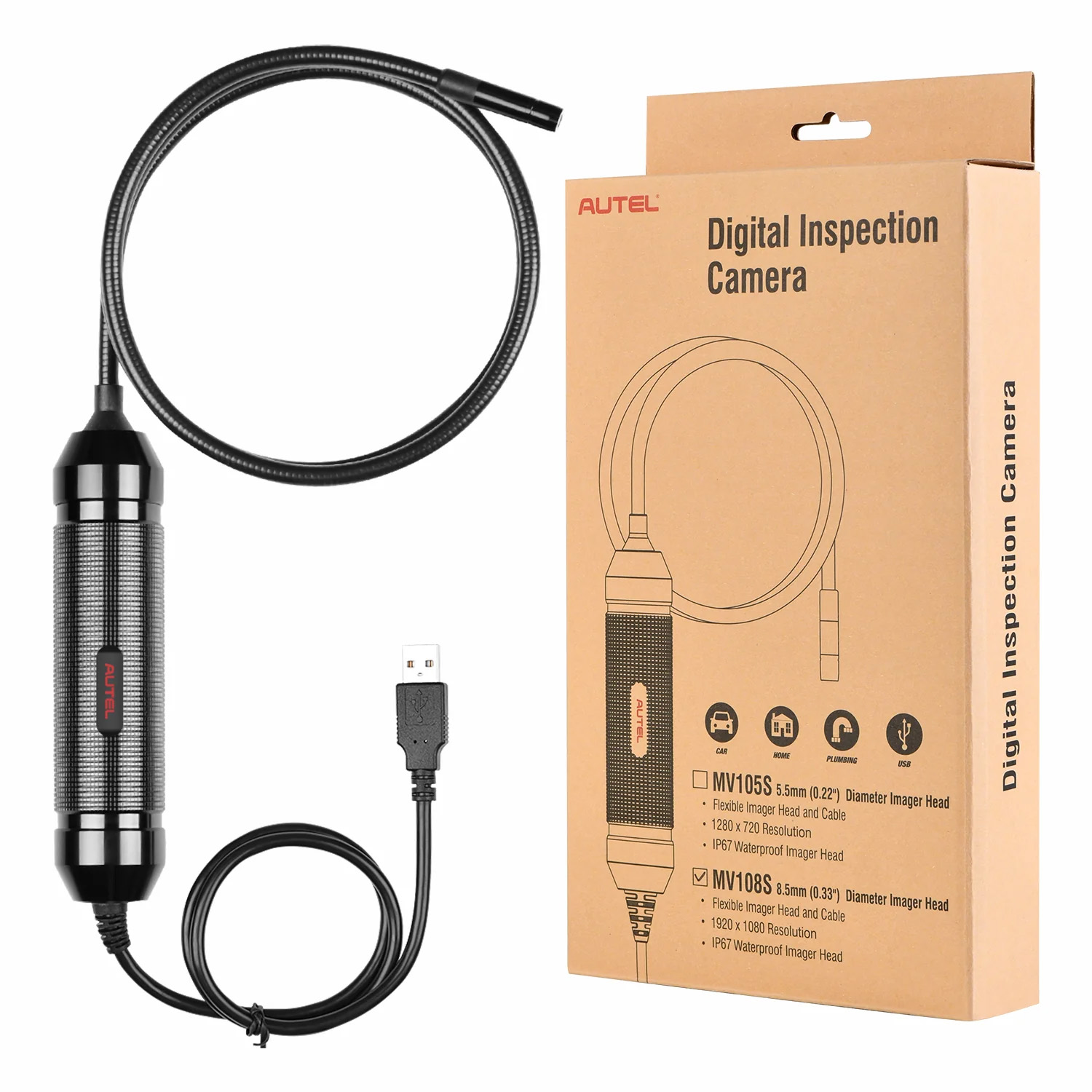

The MaxiVideo MV108S digital inspection camera is designed to work with MaxiSys series products(except MaxiSys 906) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

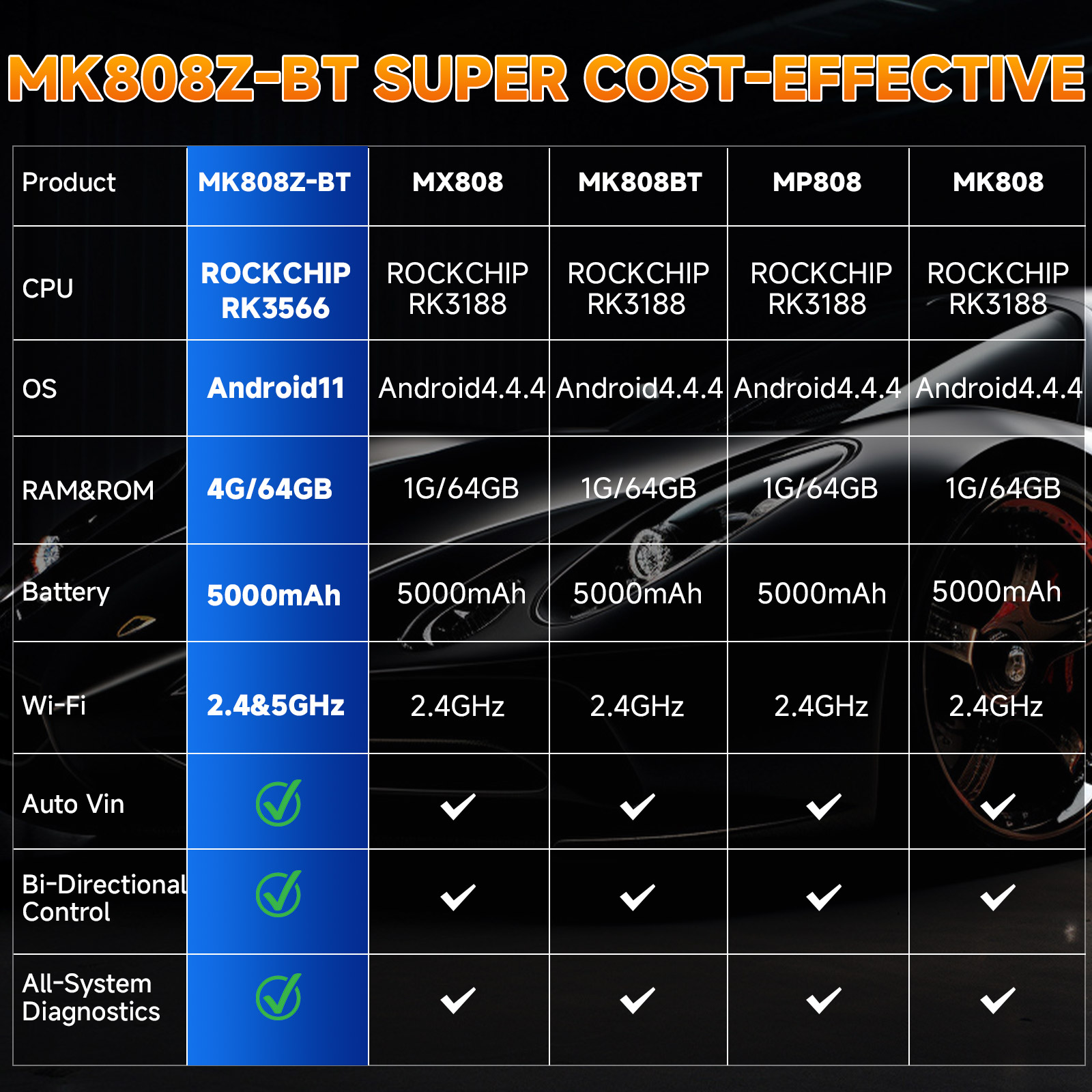

Autel MK808Z-BT MK808BT PRO Specifications:
| Recommended Use | Indoor |
| Operating System | Android 11 |
| Processor | Rockchip RK3566 |
| Memory | RAM 4G+ROM 64G |
| Display | 7-inch LCD capacitive touchscreen with 1024 x 600 resolution |

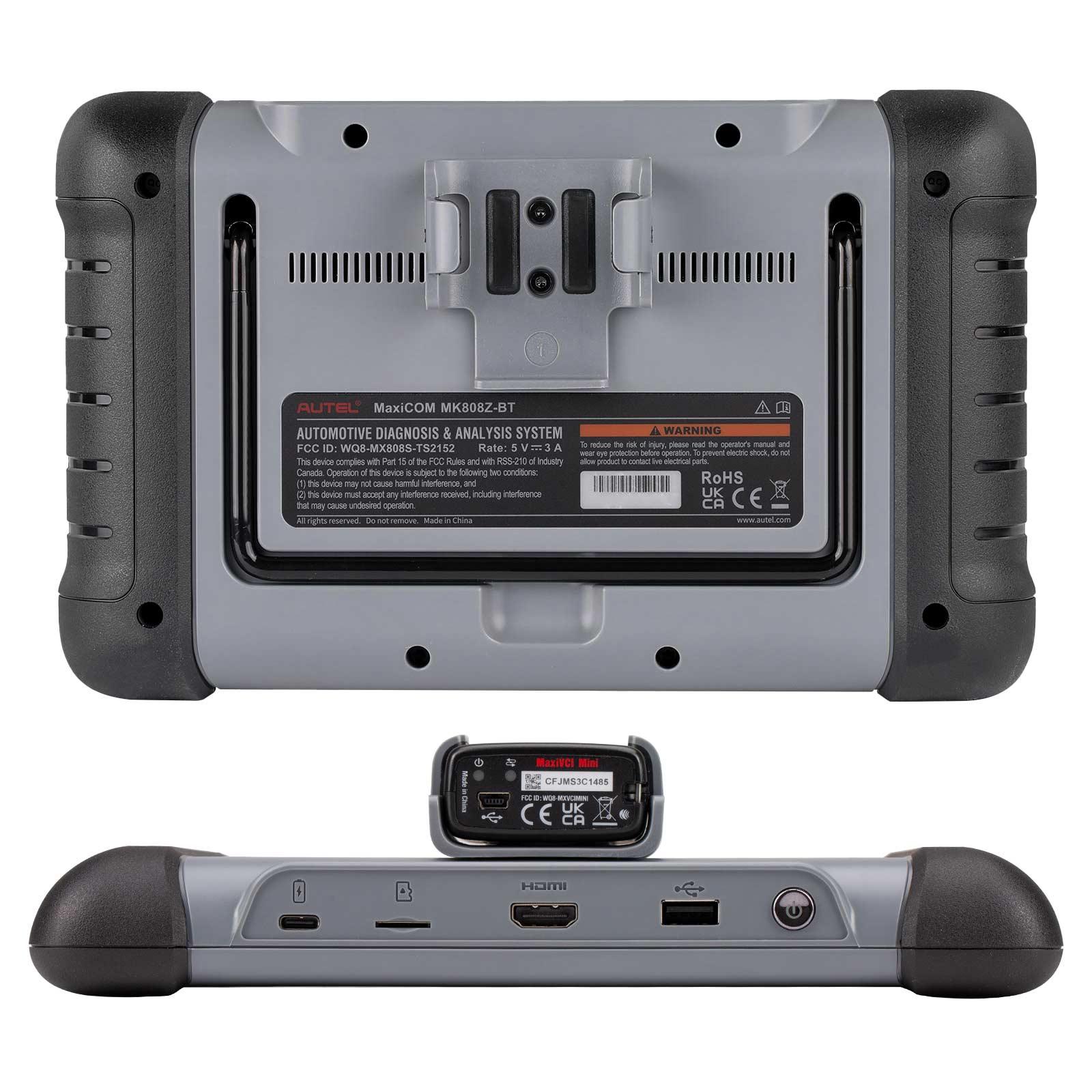

| Connectivity | Mini USB 2.0 USB2.0 Wi-Fi (2.4 & 5GHz) HDMI Type A Micro SD card slot(supports up to 64GB) |
| Sensors | Light sensor for brightness auto changing |
| Audio input/output | Input: N/A Output: buzzer |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) 3.7 V |
| Operating Temp. | 0 to 55°C(32 to 131°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Dimensions (W x H x D) | 237.8 mm (9.4″) x 148.6 mm (5.9″) x 35.5 mm (1.4″) |
| Net Weight | 788 g (2.42 lb.) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

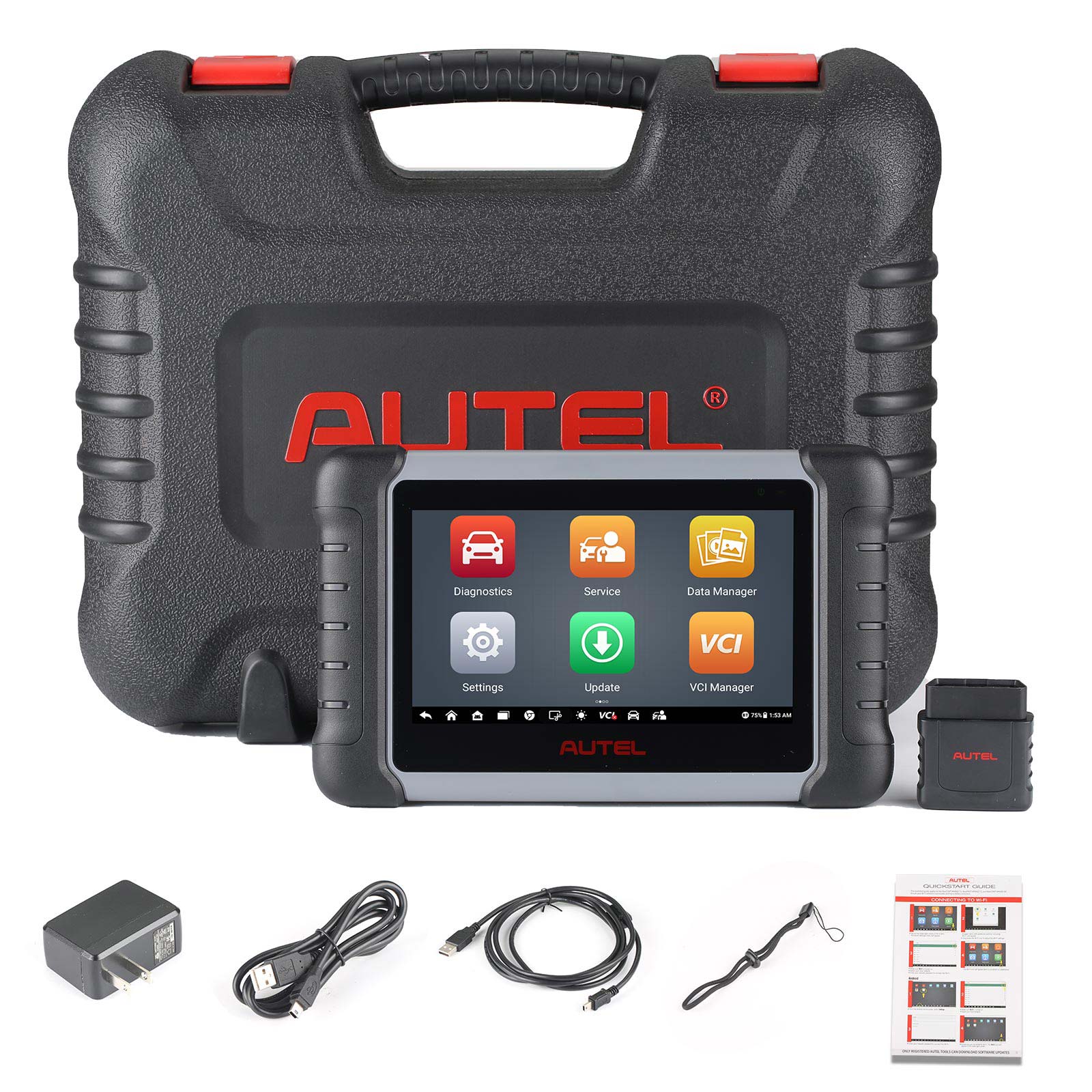

Autel MK808BT Pro / MK808Z-BT Package List:
1pc x MK808Z-BT main unit
1pc x MaxiVCI Mini
1pc x Mini USB cable
1pc x USB Type-C cable
1pc x strap
1pc x power adapter
1pc x quick reference guide
1pc x packing list
1pc x soft cloth
1pc x carrying case
1pc x MaxiVideo MV108S
1pc x Magnet
1pc x Mirror
1pc x Hook
